Hioki PQ3198 - Initial Instrument Setup

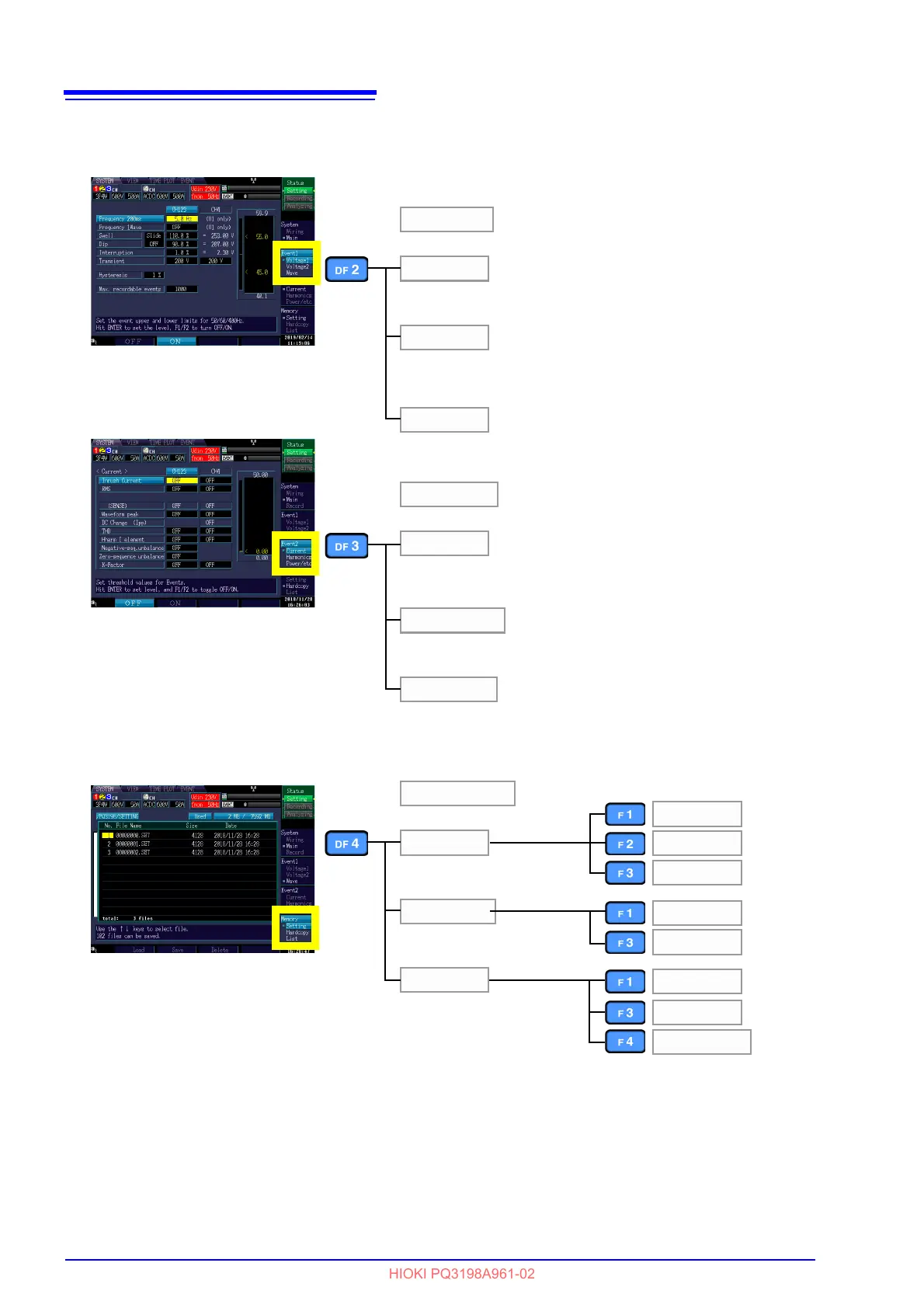

2.3 Display Items and Screen Types
32
Voltage1
Voltage2
Wave
Event1
Configures the frequency, swell, dip, interruption, transient
threshold, and hysteresis settings.
Configures the RMS voltage, waveform peak, DC fluctuation,
harmonic distortion factor, high-order harmonic component, and
unbalance factor threshold settings.
See: 5.6 (p.85)
Configures the threshold settings for generating events with the
voltage waveform.
Current
Harmonics
Power/etc
Event2
Configures the inrush current, RMS current, waveform peak, DC
fluctuation, harmonic distortion factor, high-order harmonic com-
ponent, unbalance factor, and K factor threshold settings.
Configures the threshold settings for 0- to 50-order harmonics
(voltage, current, power, phase).
See: 5.6 (p.85)
Configures the active power, reactive power, apparent power,
power factor threshold, timer event, external event, and continu-
ous event settings.
Setting
Hardcopy
List
Memory
Displays a list of settings da-
ta.
Displays a list of screenshot
data.
See: Chapter 9 (p.157)
Displays a list of the files
stored on the SD memory
card.
Load
Save
View
Delete
Delete
Format
Delete
Load*
*The List's F1 (Load) will appear when the cursor is in the stored data folder. (********).
HIOKI PQ3198A961-02
