2.3 Display Items and Screen Types
33
Chapter 2 Names and Functions of Parts Basic Operations & Screens
Monitor
instantaneous values
(VIEW screen)
The [VIEW] screen is used to view voltage and current
instantaneous waveforms, phase relationships, values, and
harmonics.

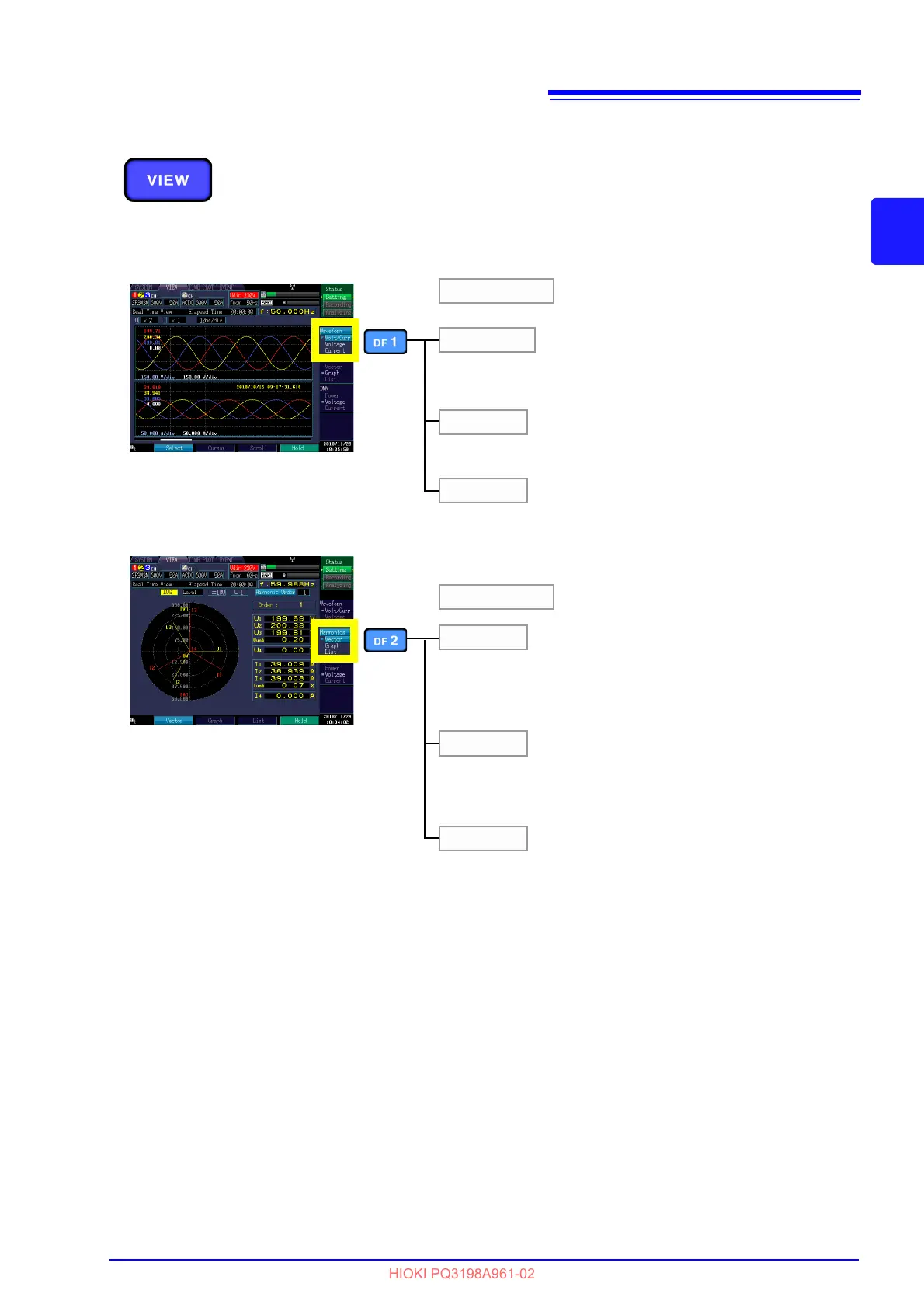

Press the VIEW key to display the [VIEW] screen. The
screen can be changed with the DF keys.
Volt/Curr
Voltage
Current
Waveform
Displays voltage waveforms for channels 1 to 4 on one screen
and current waveforms for channels 1 to 4 on another screen (for
a total of two screens).
Displays separate voltage waveforms for channels 1 to 4.
See: 6.2 (p.96)
Displays separate current waveforms for channels 1 to 4.
Vector
Graph
List
Harmonics
Displays the phase relationship between voltage and current for
channels 1 to 3 as a vector diagram. The RMS value and phase
instantaneous value is also shown for each order.
See: 6.3 (p.100)
Displays the sum voltage, current, and 0- to 50-order power mea-
sured values for channels 1 to 4 as a graph.
See: 6.4 (p.103)
Displays the sum voltage, current, power measured values (or-
ders 0 to 50) for channels 1 to 4 as a graph.
See: 6.4 (p.103)
