Power
Voltage
Current
DMM

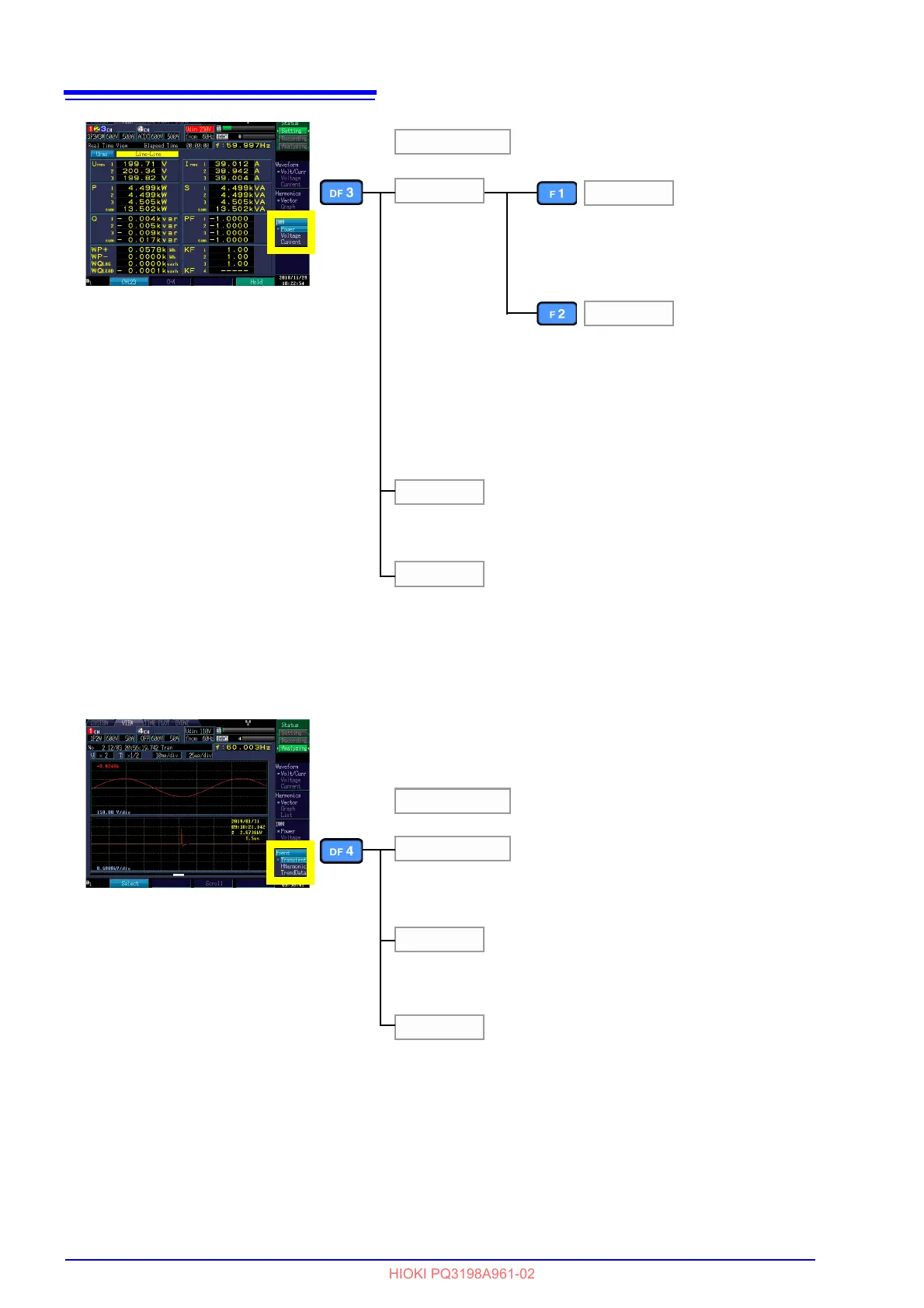

Displays instantaneous values for the volt-
age RMS value, current RMS value, active
power, apparent power, reactive power,
power factor, integrated power, and K fac-
tor for CH1 to CH3.
Displays the RMS voltage, voltage distortion factor, ± current
peak value, current unbalance factor, harmonic voltage compo-
nent, and 10-sec frequency instantaneous values.
See: 6.5 (p.109)
Displays the RMS current, current distortion factor, ± current
peak value, current unbalance factor, and high-order harmonic
current component instantaneous values.
TRANSIENT
HHarmonic
TrendData
EVENT
Displays the transient waveform obtained by high-speed sam-
pling when an event occurred.
See: 8.4 (p.147)
Displays the high-order harmonic voltage and current waveforms
at the time of event occurrence.
See: 8.5 (p.150)
Displays a 30-second time series graph depicting fluctuations in
the swell, dip, interruption, or inrush current when an event oc-
curred (0.5 s before and 29.5 s after EVENT IN) (for 400 Hz mea-
surement, approx. 0.125 s before and approx. 7.375 s after
EVENT IN).
See: 8.6 (p.153)
Shown only in [Analyzing] mode.
CH123
CH4
Displays instantaneous values for the
CH4 voltage RMS value, current RMS val-
ue, active power, apparent power, reac-
tive power, power factor, and efficiency.
(This information is not shown if the CH4
connection is set to OFF. If the CH4 con-
nection is set to DC, apparent power, re-
active power, and power factor are not
shown.)
To Next Page
