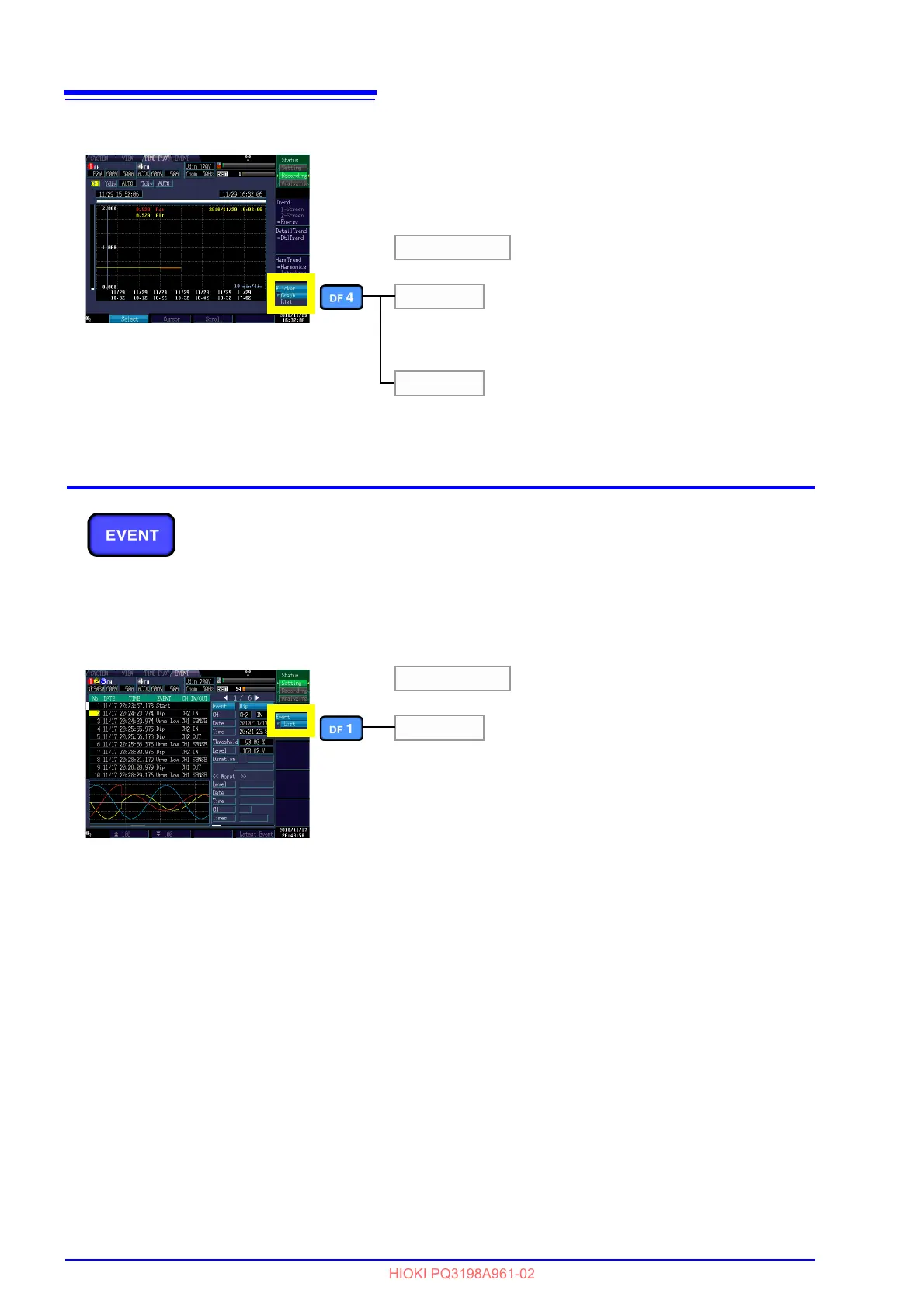

Graph
Flicker
Displays Δ10V (instantaneous values) or Pst and Plt values as a
time series. You can select either Δ10V flicker or IEC flicker to be
displayed.
Displays Δ10V (instantaneous values) or Pst and Plt values as a
list. You can select either Δ10V flicker or IEC flicker to be dis-
played.
See: 7.5 (p.131)
List
List
Event
Displays a list of events in the order of their occurrence. Detailed
information and the waveform at the time of the event occurrence
are also shown for the event selected on the list. You can also an-
alyze instantaneous values, waveforms, and other information at
the time of the event's occurrence on the [VIEW] screen.
See: Chapter 8 (p.139)
Monitor event occurrence
(EVENT screen)
The [EVENT] screen is used to view a list of
events that have occurred. In addition to checking
whether a given event has occurred and the num-
ber of times it has occurred, if any, you can view
high-order harmonic measured values.
Press the EVENT key to display the [EVENT]
screen.
