Hioki PQ3198 - Wiring Verification (Connection Check)

4.3 Configuring the Connection Mode and Current Sensors
58

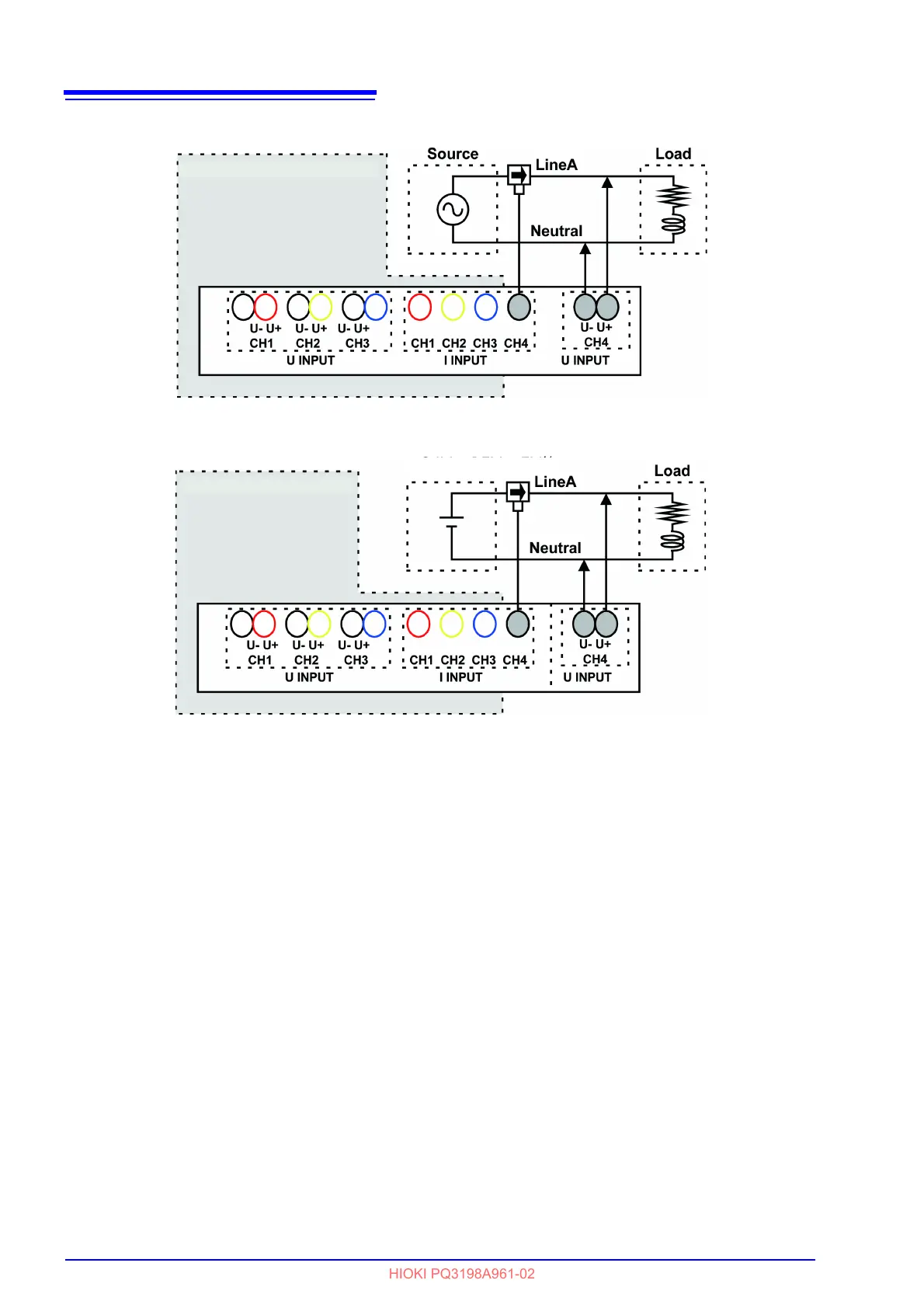

(2) Measuring multiple systems
(3) Measuring a system and a DC power supply
Used for a separate system
Two circuits
Used for a separate system
±24 V, ±15 V, ±5V, etc.
DC power
supply
