4.3 Configuring the Connection Mode and Current Sensors
57
Chapter 4 Configuring the Instrument before Measurement (SYSTEM - SYSTEM screen) and
Wiring
4

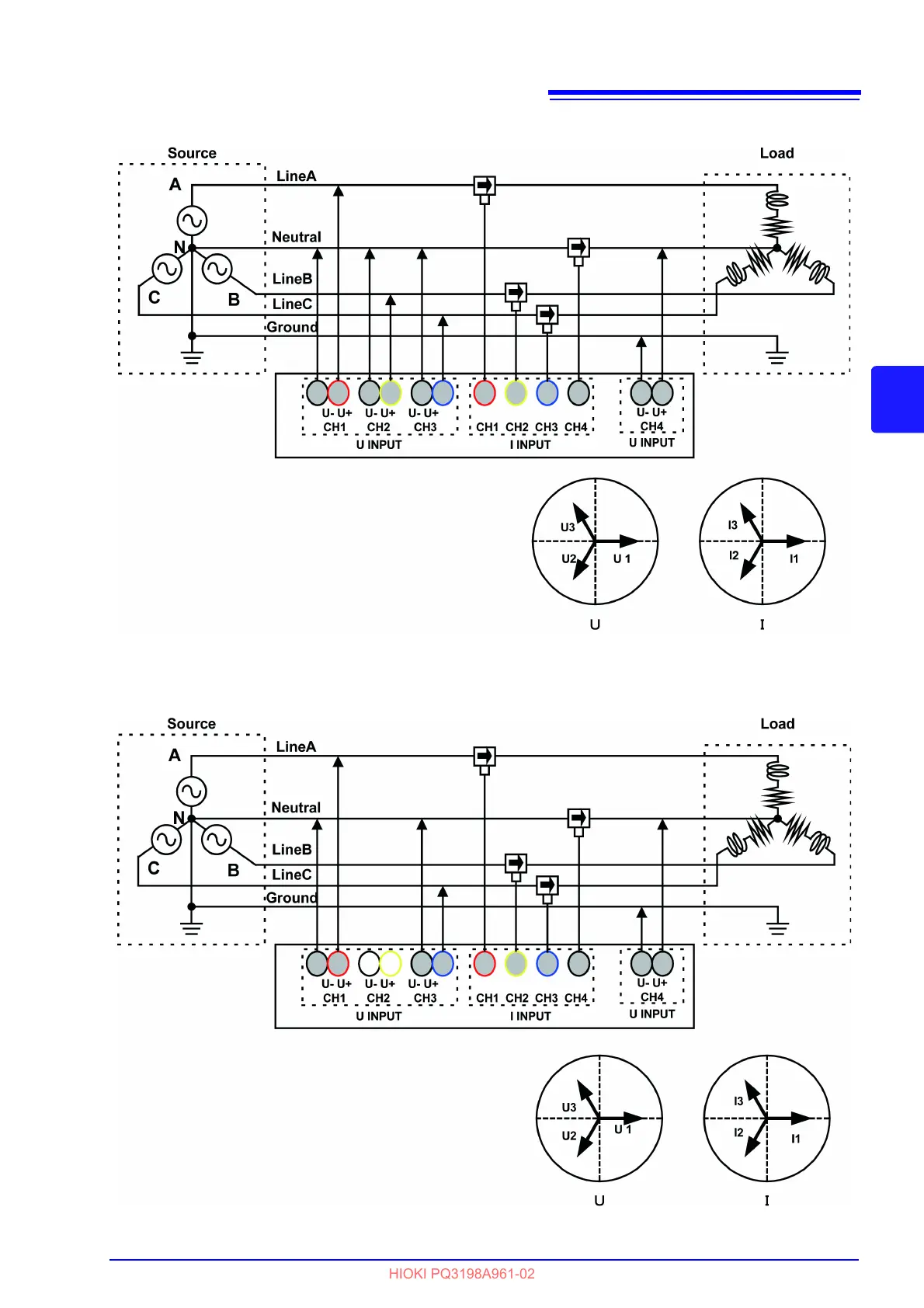

3P4W (CH4:ACDC)
3P4W2.5E (CH4:ACDC)
The vector diagram shows the measure-
ment line in its ideal (balanced) state.
The L1021-01, L1021-02 Patch Cord can be
used to consolidate two cords being connected
to the same phase into a single cord.
The vector diagram shows the measure-
ment line in its ideal (balanced) state.
The L1021-01, L1021-02 Patch Cord can be
used to consolidate two cords being connected
to the same phase into a single cord.
