4.5 Connecting to the Lines to be Measured (Preparing for Current Measurement)
62

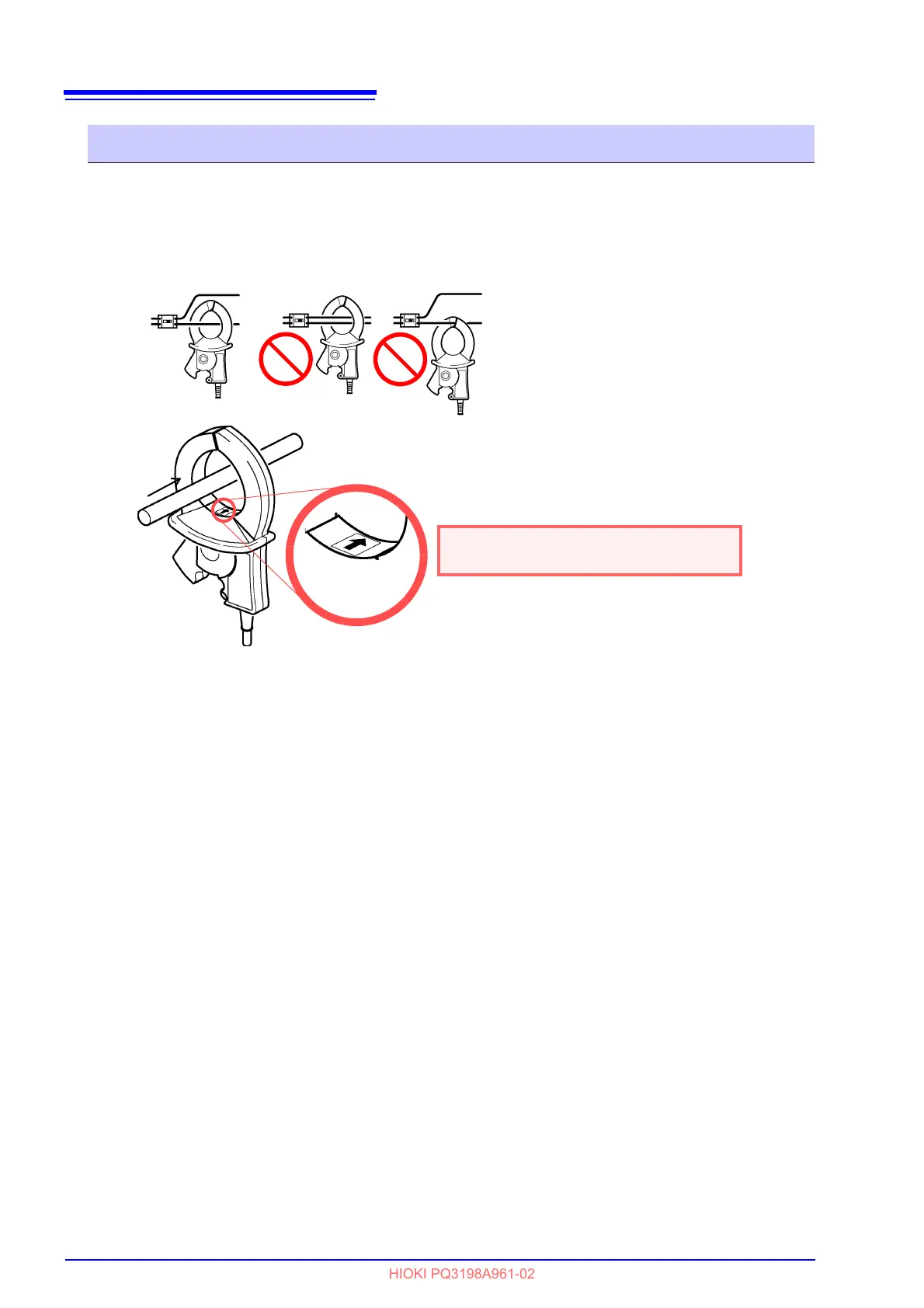

Applying current sensors to lines to be measured
OK
Example: CT7136
Source side
Line
Load side
Current flow
direction arrow
Always clamp the instrument around only one conductor. Clamping the instrument around
two or more of conductors in a bundle prevents the instrument from measuring any current
regardless of whether the measurement target is a single-phase or three-phase circuit.
Make certain that the current flow direction
arrow points toward the load.
