5.9 Viewing a Harmonic List (PW3360-21 only)
93
Chapter 5 Viewing Measurement Data
5

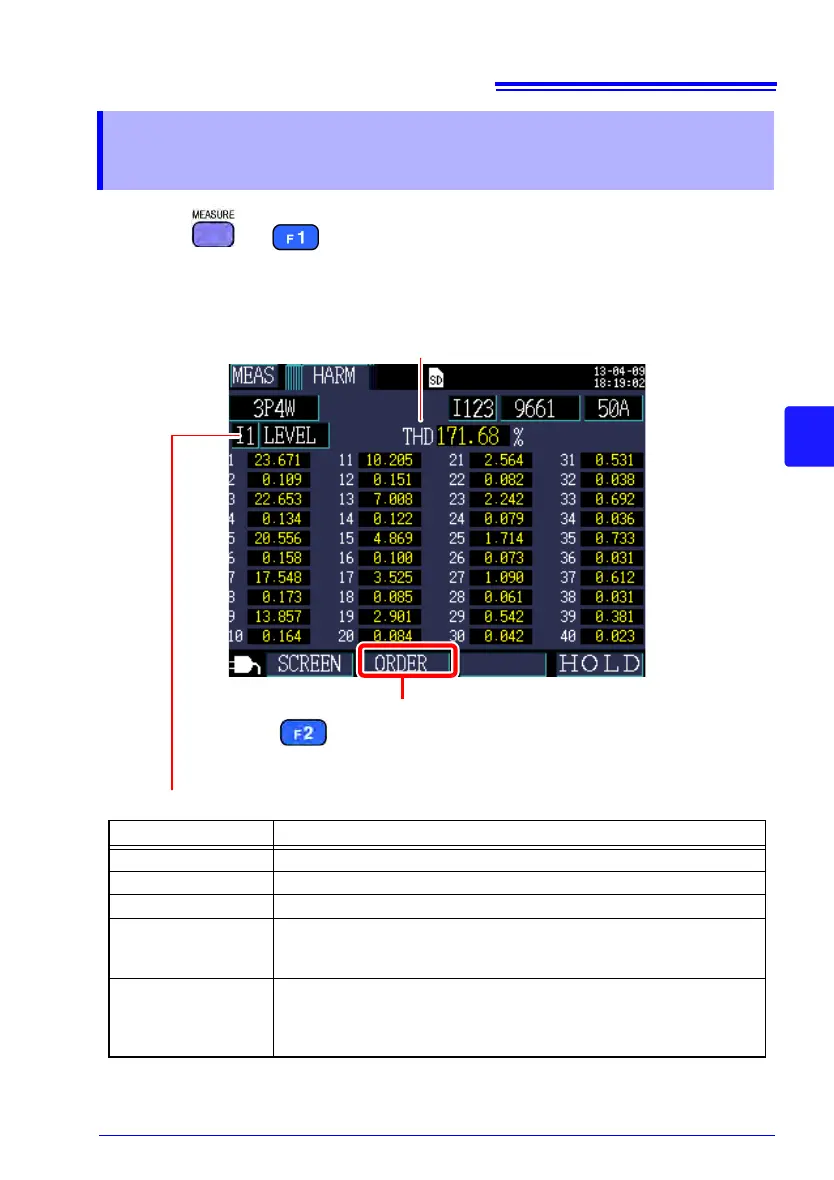

Press the or [SCREEN] key to display the [MEAS, HARM (LIST)]
screen.
5.9 Viewing a Harmonic List
(PW3360-21 only)
Total harmonic distortion (THD-F or THD-R)
See: "THD calculation (PW3360-21 only)" (p. 68)
THD is not included in power.
Changes the displayed order.
Press [ORDER] to cycle through the following options: All or-
ders (1st to 40th) → Odd-numbered orders only → 1st to 20th orders
→ All orders.
Switches the display parameter.
Display parameter Description
Voltage U1, U2, U3
Current I1, I2, I3
Active power P1, P2, P3, P (total)
LEVEL
Harmonic level for each order
Switching between the linear (LINEAR) and logarithmic (LOG) scale
axis
is available.
%ofFND
Each order’s harmonic component expressed as a percentage of the
fundament
al wave.
Switching between the linear (LINEAR) and logarithmic (LOG) scale
axi
s
is available.
To Next Page
