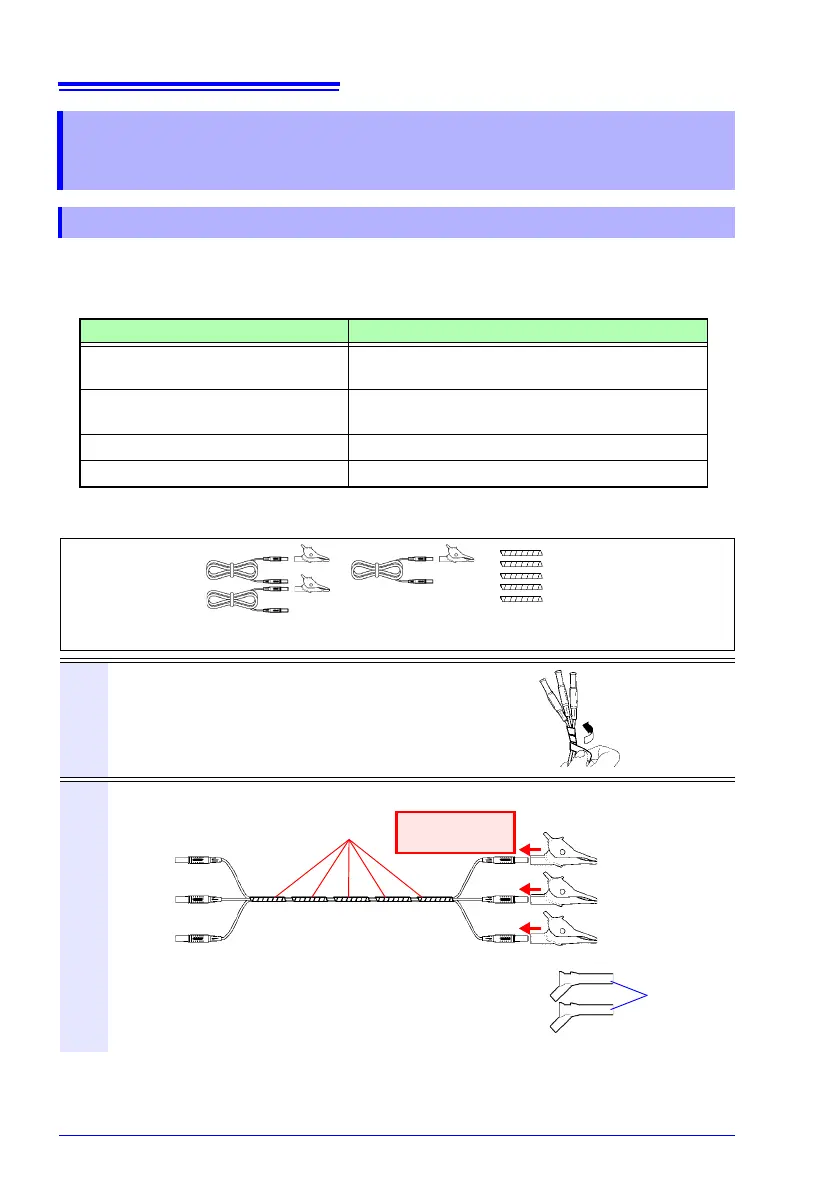

2.2 Preparing to Use the Instrument after Purchase
22
5 Spiral Tubes provided with Model L9438-53 Voltage Cord. Use the Spiral Tubes as
and when required. The number of voltage cords that will be bound together
depends on the measurement target.
Preparation items: 
single-phase/3-wire (1P3W) and 3-phase/3-wire (3P3W2M)
2.2 Preparing to Use the Instrument after 
Purchase
Bundle the Voltage Cord Leads with the Spiral Tubes
Measurement target Voltage cord to use (color)
Single-phase/2-wire (1P2W),
Single-phase/3-wire (1P3W1U)
Two cords (black and red)
Single-phase/3-wire (1P3W),
3-phase/3-wire (3P3W2M)
Three cords (black, red, and yellow)
3-phase/3-wire (3P3W3M)
Three cords (red, yellow, and blue)
3-phase/4-wire (3P4W)
Four cords (black, red, yellow, and blue)
Model L9438-53
Voltage Cord
Banana Plug Leads three, one each black, red, and yellow
Alligator Clips three, one each black, red, and yellow
Five Spiral Tubes
(for cable bundling)
1
Line up the ends of the voltage cords and
wrap the spiral tube around them.
Wind a Spiral Tube round the multiple cords.
Five Spiral Tubes are provided. Please wind the
tubes at appropriate intervals.
2
Insert the same color alligator clip into each lead.
You can also use magnet adapters instead of alligator clips.
Spiral Tubes
Yellow
Black
Red
Yellow
Black
Red
Insert securely 
all the way.
• Model 9804-01 Magnet Adapter
(optional, red, standard screws: M6 pan-head screw)
• Model 9804-02 Magnet Adapter
(optional, black, standard screws: M6 pan-head screw)
φ11 mm
