3.4 Connecting a Clamp Sensors
50
1

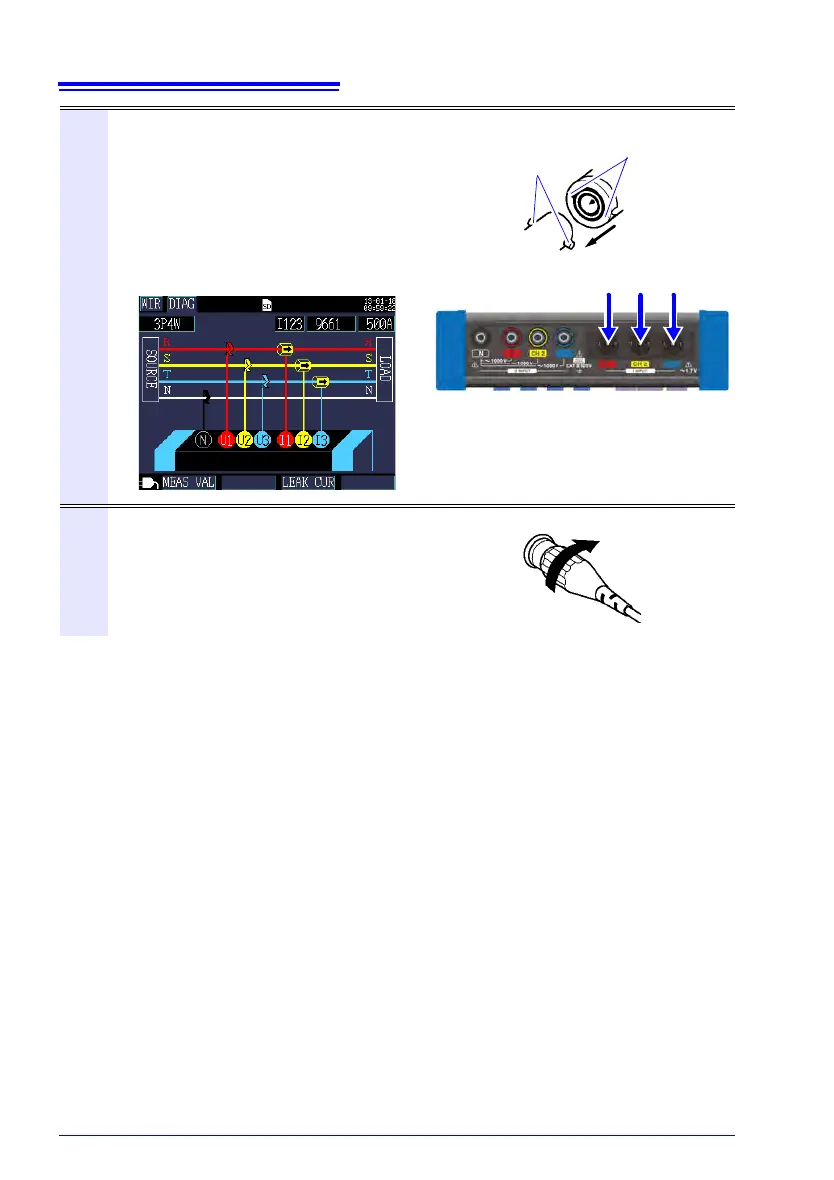

Connect the clamp sensors’ BNC
connectors to the current input ter-
minals while checking the [WIR,
DIAG] screen.
Align the groove on the BNC connector
with the connector guide on the instru-
ment and push it into place.
2
Turn the connector clockwise to
lock it in place.
(To disconnect the connector, turn it coun-
terclockwise to unlock it and then pull.)
PW3360 current
input terminal
Connector,
aligning
Current input terminals
BNC connector of
the clamp sensor
