Chapter 4 Viewing Measurement Values
The following procedure displays measurement values.
Viewing
Measurement
Values Chapter 4
4.1 Measurement Value Display Procedure

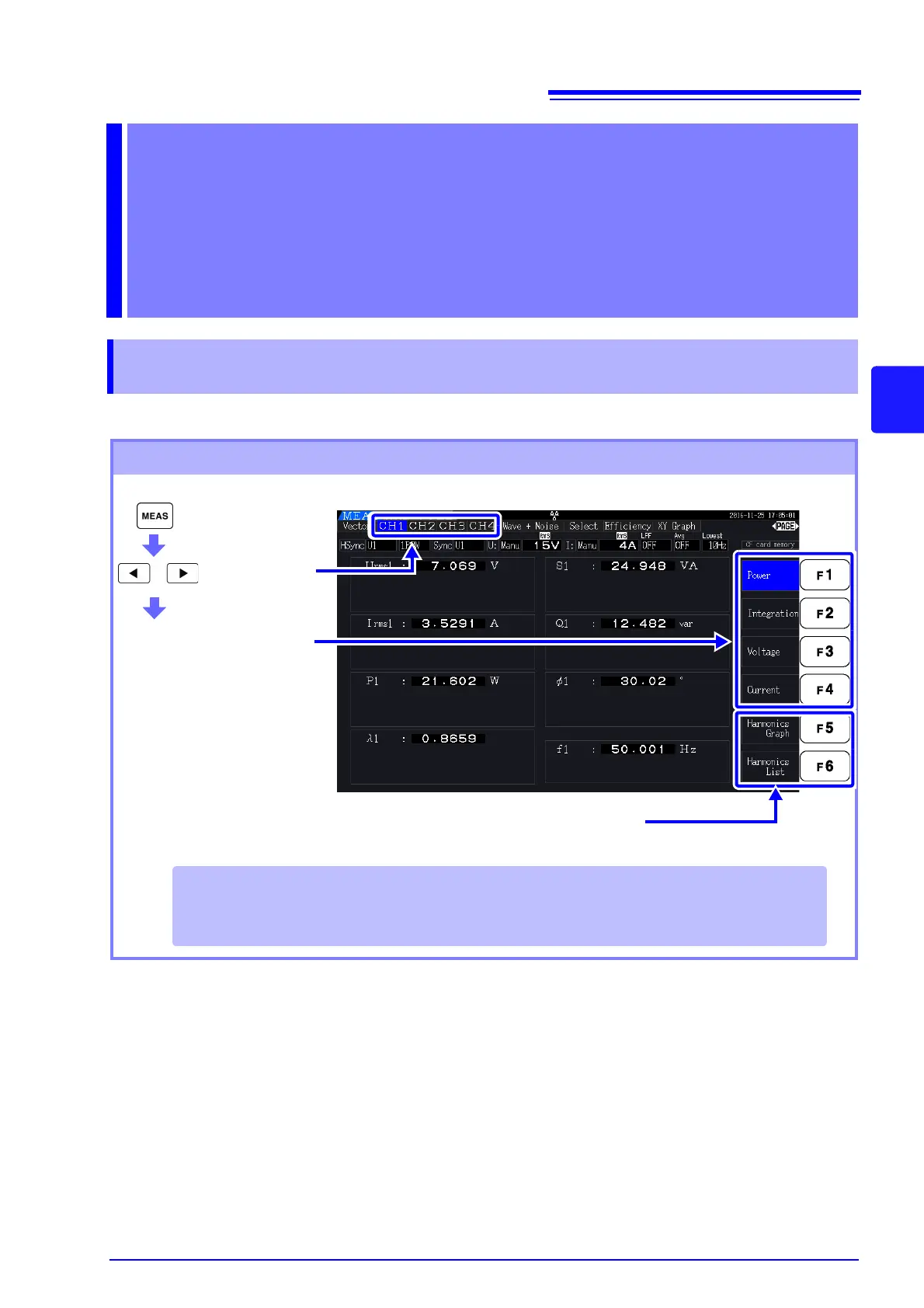

Display Procedure (the following shows 1P2W wiring mode)
Display the
[CH] page
See Displays the Harmonic Graph or Harmonic List.
"4.4 Viewing Harmonic Measurement Values" (p. 72)
The above screen is specific to the wiring mode (here showing four 1P2W systems)
he number of measurement items displayed depends on the selected wiring mode.
See Section "3.9 Selecting the Wiring Mode" (p. 34) to set the wiring mode.
Use the F keys to select
display contents
To Next Page
