4.7 Viewing Efficiency and Loss Measurement Values
90
Up to three formulas (1 to 3, and Loss1 to Loss3) can be selected for Efficiency () and Loss calcula-
tions. Select the calculation items from all Pin and Pout active power values to be applied to the following
formulas.
= 100 × Pout/Pin
Loss =Pin -Pout
4.7.2 Selecting the Calculation Formula

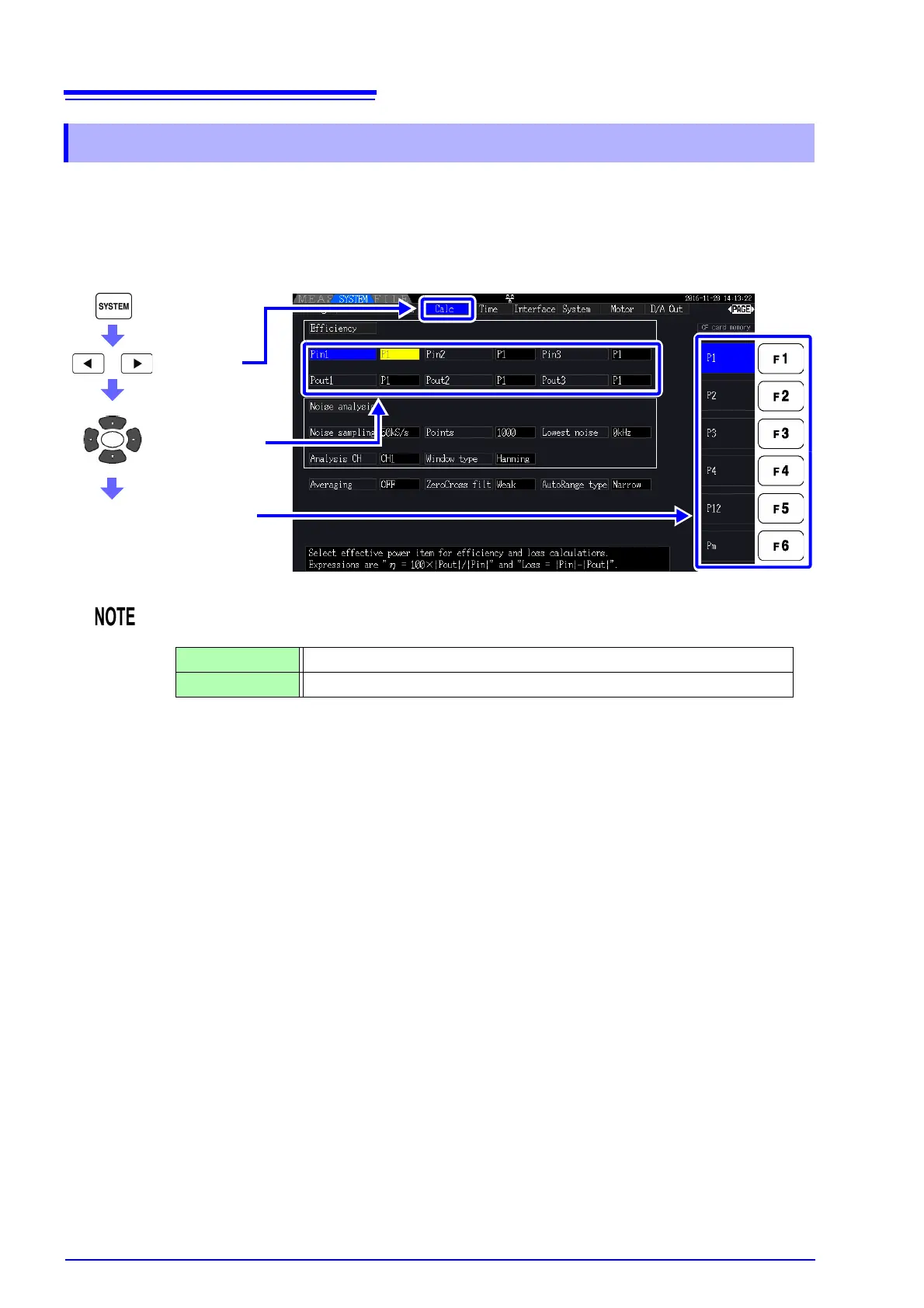

Display the
[
Calc] page
Select the item
Select with the
F keys
[Pm] can be selected on models equipped with motor analysis functionality while using the fol-
lowing settings:
CH A units mN• m, N• m, kN• m
CH B units r/min
