These indicators appear in red at the bottom of
each channel page tab (CH1 to CH4). These indi-
cate (from the left) when voltage and current peaks
ranges are exceeded (p. 48), and when synchroni-
zation is unlocked (p. 57).
Indicates the selected wiring mode (p. 34). The wir-
ing mode (phase system selection) must be set to
match actual measurement connections.
• Indicate the voltage and current range settings.
• The settings are made by the RANGE keys (p. 52).
• When the range has been set manually, [MANU]
appears.
• When the auto-ranging is enabled, [AUTO]
appears (p. 51).
Indicates the low-pass filter setting (p. 62).
To change the setting, hold the key while
pressing an
LPF key (one of the left-most or
RANGE keys).

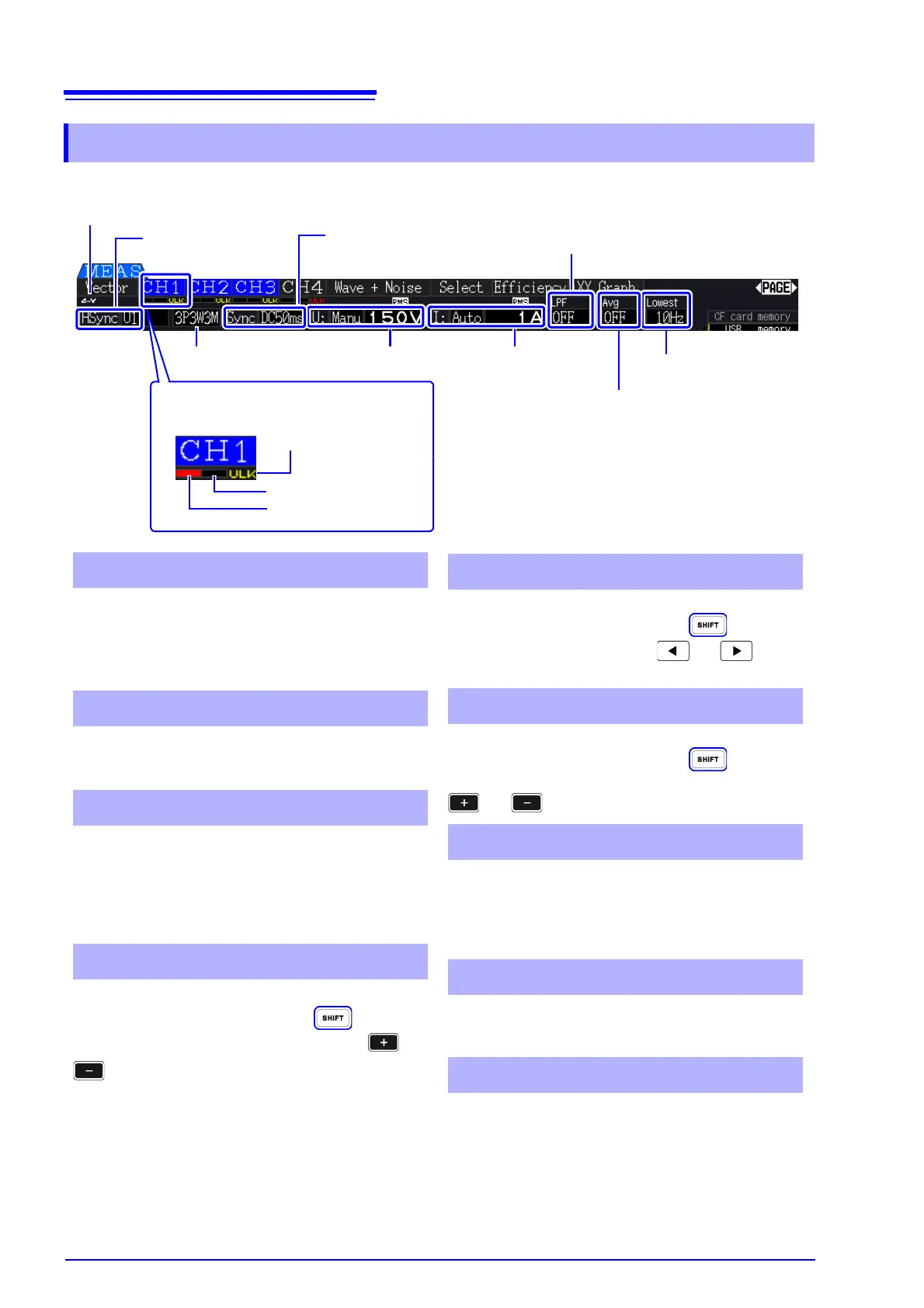

1 Peak Over display indicators
2 Wiring mode
3 Voltage range/Current range
4 Low-pass filter
Indicates the averaging setting state (p. 110).
To change the setting, hold the key while
pressing the
AVG key either or of the
PAGE key.
Displays the lower measurement limit setting (p. 58).
To change the setting, hold the key while
pressing a
LOW FREQ key (one of the right-most
or
RANGE keys).
Indicates the synchronization source signal that
determines the period (between zero crossings)
used as the basis for all calculations.(p. 56) The set-
ting is made on the Input Settings page of the Set-
tings screen.
Indicates the synchronization signal source used for
harmonic measurements.(p. 77) The setting is made
on the Input Settings page of the Settings screen.
Indicates whether -Y transform is enabled or dis-
abled (ON/OFF)(p. 116). The setting is made on the
Input Settings page of the Settings screen.
5 Average
6 Lower measurement limit
7 Sync source
8 Harmonic sync source
9 -Y Transform
