4.3 Integration Value Observation
69
4
Chapter 4 Viewing Measurement Values
After specifying timer and clock settings, press to cause integration to start and stop at the speci-
fied times. Integration can be controlled by the following three timing methods.

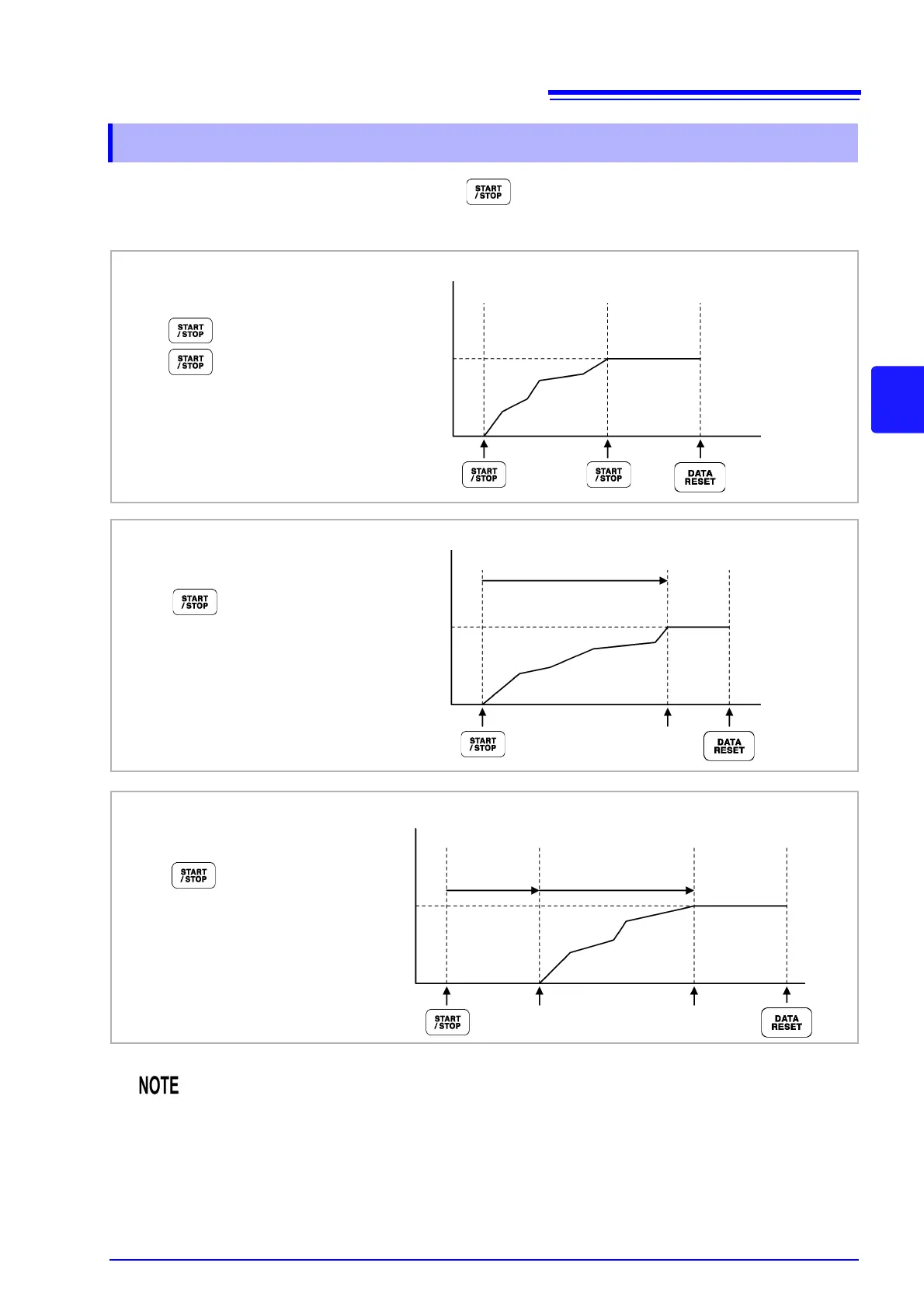

4.3.4 Integration Combined with Timing Control
When an interval time is enabled, activating Data or Peak Hold by pressing the HOLD key
causes the display to update at each interval.
Also, when timer or clock control is enabled, the final measurement data is displayed at the
specified stop time.
Manually Controlled
Integration
Press to start integration.
Press again to stop integration.
See "4.3.3 Manual Integration Method" (p. 67)
Reset
Retaining
Integrated value
Start
Time
Stop
Timer-Controlled
Integration
Timer Setting Value
Automatic stop
Press to start integration.
Integration stops automatically
when the timer expires.
See "Timer-Controlled Integration" (p. 70)
Start ResetStop
Retaining
Time
Integrated value
Clock-Controlled
Integration
Press .
Integration starts and stops at the
specified times.
See "Clock-Controlled Integration" (p. 71)
Stop Time
Wait Time Clock-Controlled Time
Start Time
Automatic start Automatic stop
Integrated value
Start Reset
Retaining
Time
