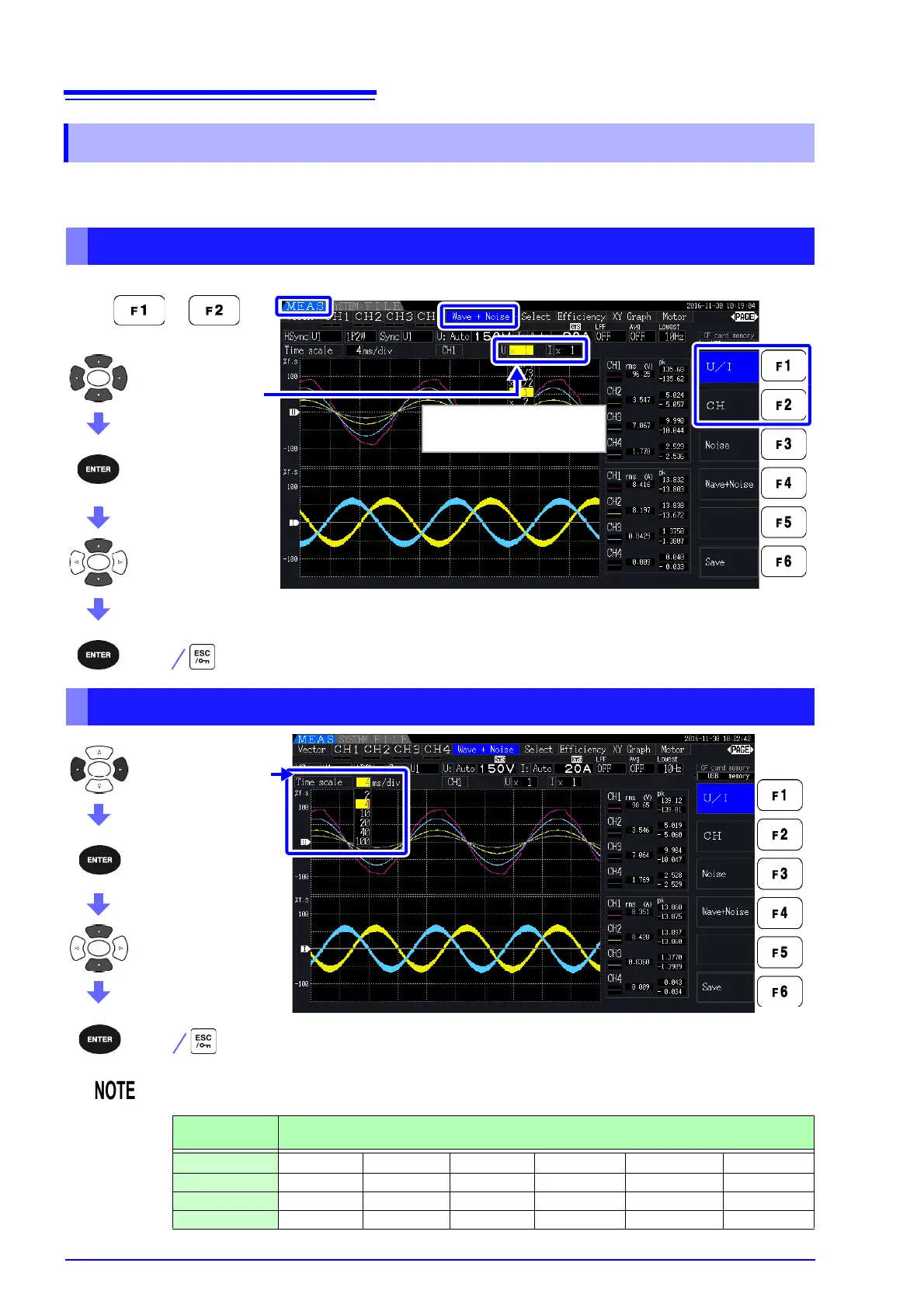

4.5 Viewing Waveforms
82
Waveforms can be reduced and enlarged for convenient viewing, and to confirm details. Make this setting
using the cursor keys on the [Wave + Noise] page.
See "4.5.1 Displaying Waveforms" (p. 79)
Voltage and current waveforms can be vertically resized (magnification is the same for all channels).
4.5.2 Resizing Waveforms
Changing Vertical Axis Magnification
Press or
Selects from the
pull-down menu
Displays the pull-
down menu
Enter
Cancel
Select the desired magnifi-
cation from 1/4× to 50×
Select U (voltage)
or I (current)
for resizing
Changing Horizontal Axis Magnification (Timebase)
Select [Time scale]
Selects from the
pull-down menu
See Chart in below.
Displays the pull-
down menu
Enter Cancel
• The waveform sampling rate is fixed at 500 kS/s.
• Available timebase selections depend on the selected number of noise analysis points, as follows.
Selected No. of
Points
Timebase Selections
1000 0.2 ms/div 0.4 ms/div 1 ms/div 2 ms/div 4 ms/div 10 ms/div
5000 1 ms/div 2 ms/div 5 ms/div 10 ms/div 20 ms/div 50 ms/div
10000 2 ms/div 4 ms/div 10 ms/div 20 ms/div 40 ms/div 100 ms/div
50000 10 ms/div 20 ms/div 50 ms/div 100 ms/div 200 ms/div 500 ms/div
