4.3 Integration Value Observation
66
Select the integration mode for each channel.
Two choices are available for each wiring system.
4.3.2 Setting the Integration Mode
RMS Mode
• Integrates RMS current and active power during every measurement interval (50 ms).
• Each polarity is integrated only for active power.
DC Mode
• Integrates instantaneous current and power values for each polarity during every sam-
pling interval (at 500 kHz sampling frequency)
• Only selectable for 1P2W wiring with AC/DC current sensors
• Integration is performed simultaneously on three current values (Ih+, Ih-, and Ih) and
three active power values (WP+, WP-, and WP)

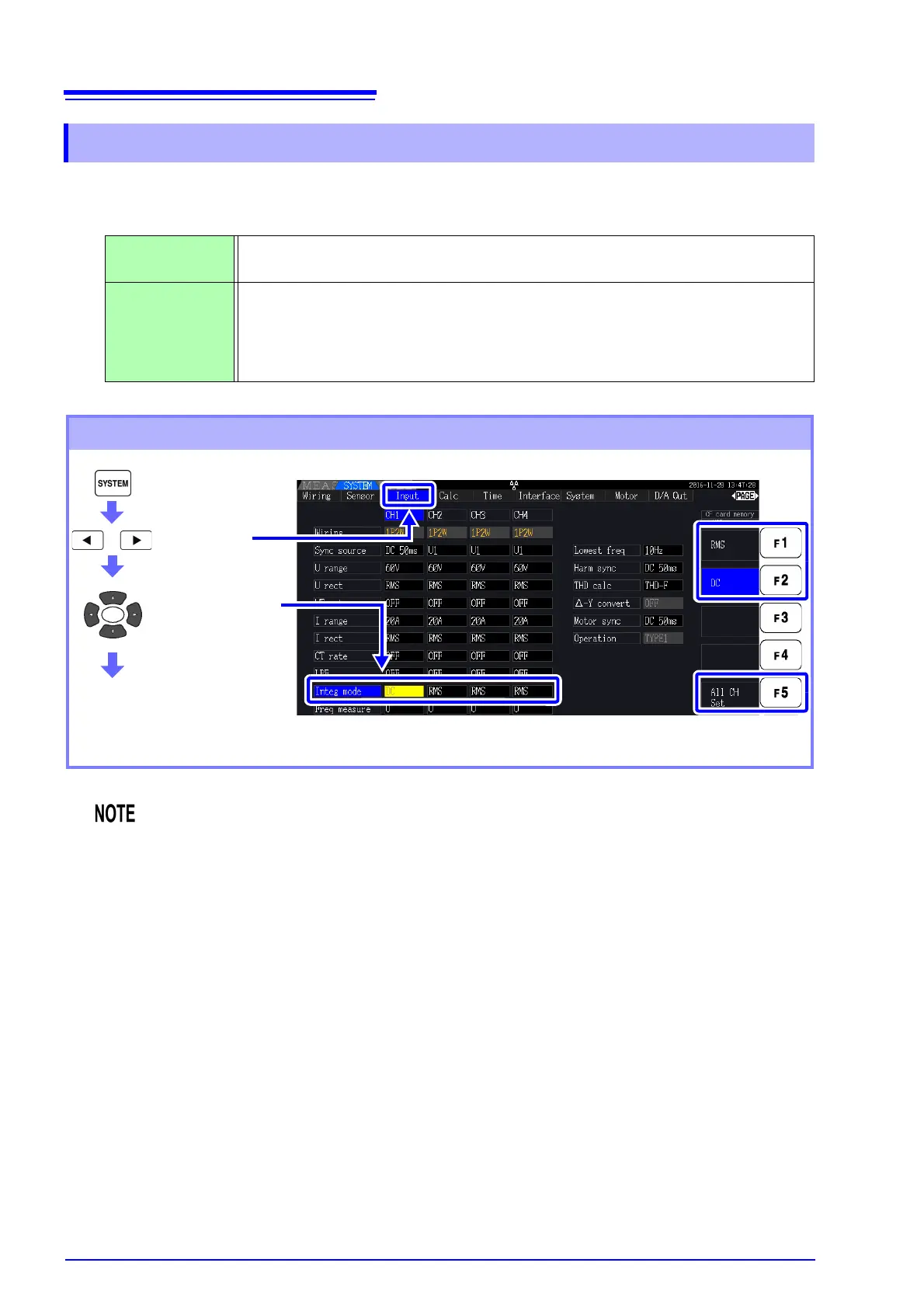

Setting Procedure
Display the
[Input] page
Select with the F keys
Select the channel
to change
About [All CH Set], see "2.2 Basic Operations" (p. 18).
Display of THD (total harmonic distortion) or RF (ripple factor) of the measurement value is
determined according to the integration mode setting.
When the RMS integration mode is selected, THD is displayed, and when the DC mode is
selected, RF is displayed.
