4.2 Viewing Power Measurements, and Changing the Measurement Configuration
60
Select the voltage or current rectification method to be used for calculating apparent power, reactive
power, and power factor. Two rectification methods are selectable for each voltage and current input.
Make this selection before measurement.
[MEAN] and [RMS] settings for each range are made on the [CH] pages.
4.2.5 Selecting the Rectification Method
RMS True root mean square value. Ordinarily, this setting should be used. (default setting)
MEAN
Rectified mean value of RMS conversion.
In general, select this only when measuring the line voltage of an inverter's secondary-side
PWM waveform.

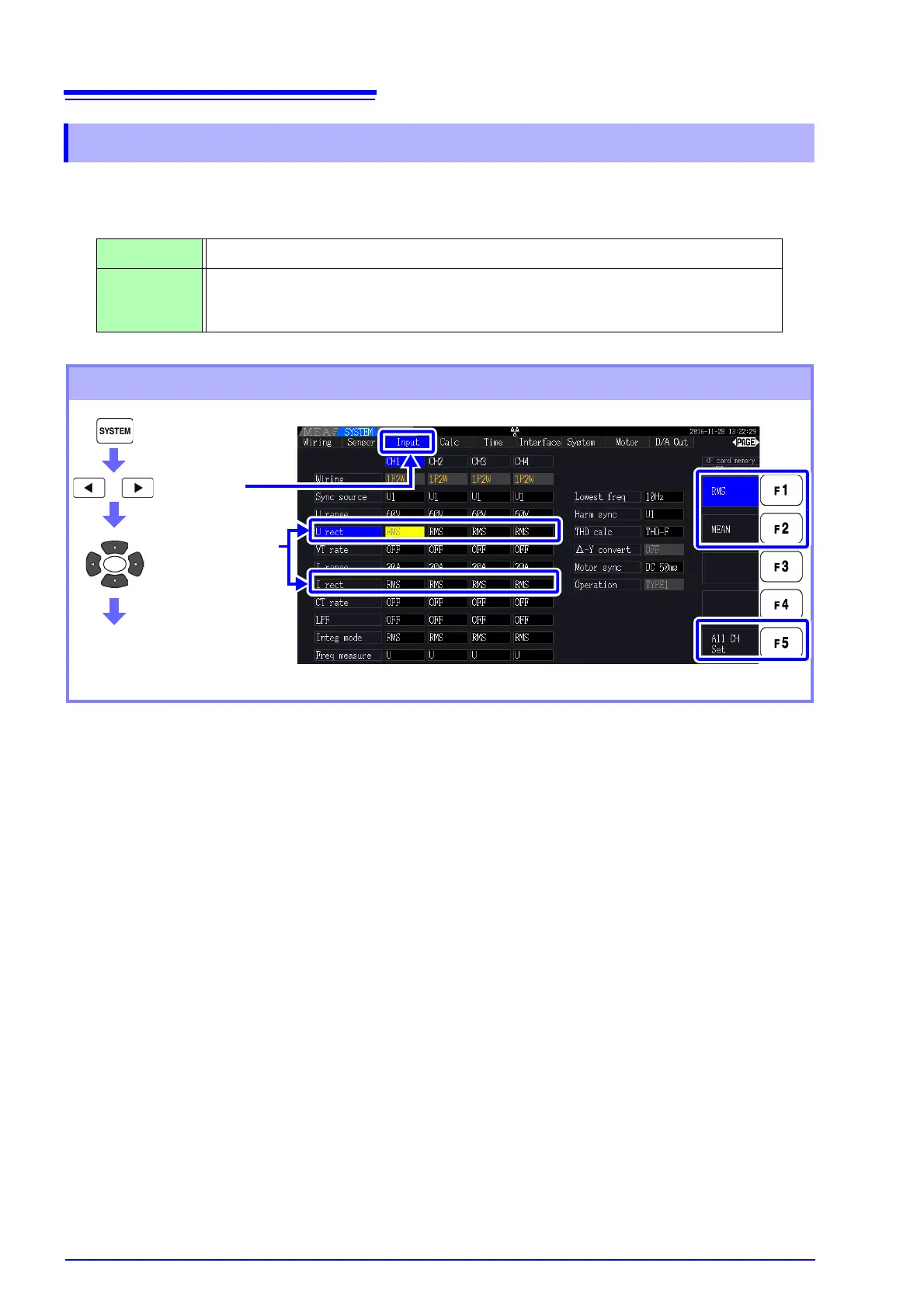

Setting Procedure
Select with the F keys
Display the
[Input] page
About [All CH Set],
see "2.2 Basic Operations" (p. 18).
Select a [U rect]
and [I rect]
for the
channel being set.
To Next Page
