4.2 Viewing Power Measurements, and Changing the Measurement Configuration
59
4
Chapter 4 Viewing Measurement Values

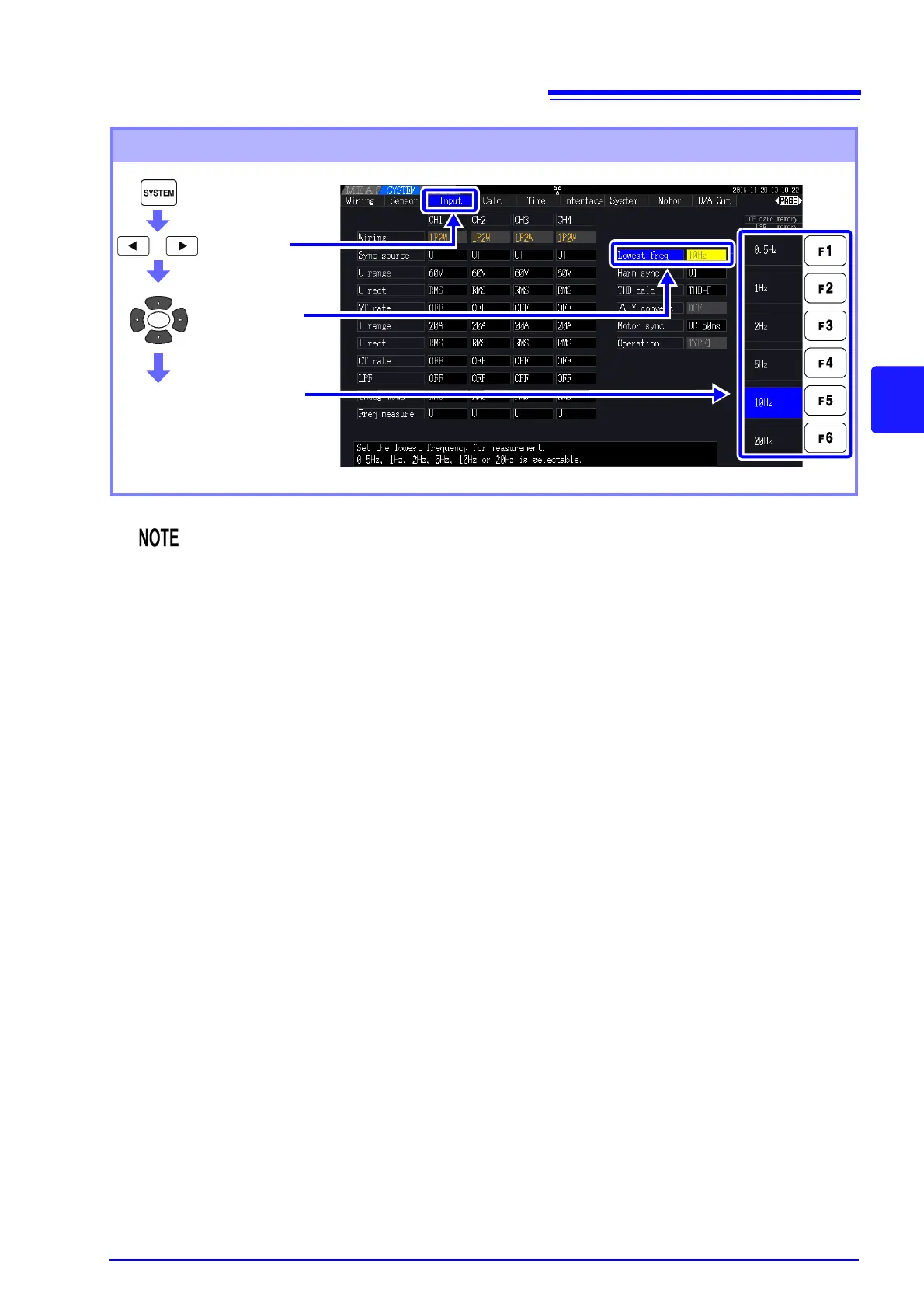

Setting the Lowest Measurement Frequency on the Setting Screen
Display the
[Input] page
Select
[Lowest freq]
Select with the F keys
• The frequency measurement range is 0.5 Hz to 5 kHz (within the sync frequency
range). Input frequencies outside of this range cannot be measured.
• The guaranteed accuracy of frequency measurement stipulates sine wave input of at
least 30% of the measurement range of the frequency measurement source. Fre-
quency measurement may not be possible with other input signals.
• For input signals of 45 Hz and below, the data update rate depends on the input fre-
quency.
• If a frequency is applied above 5 kHz or below the minimum measurement frequency,
the displayed frequency may differ from the input frequency.
