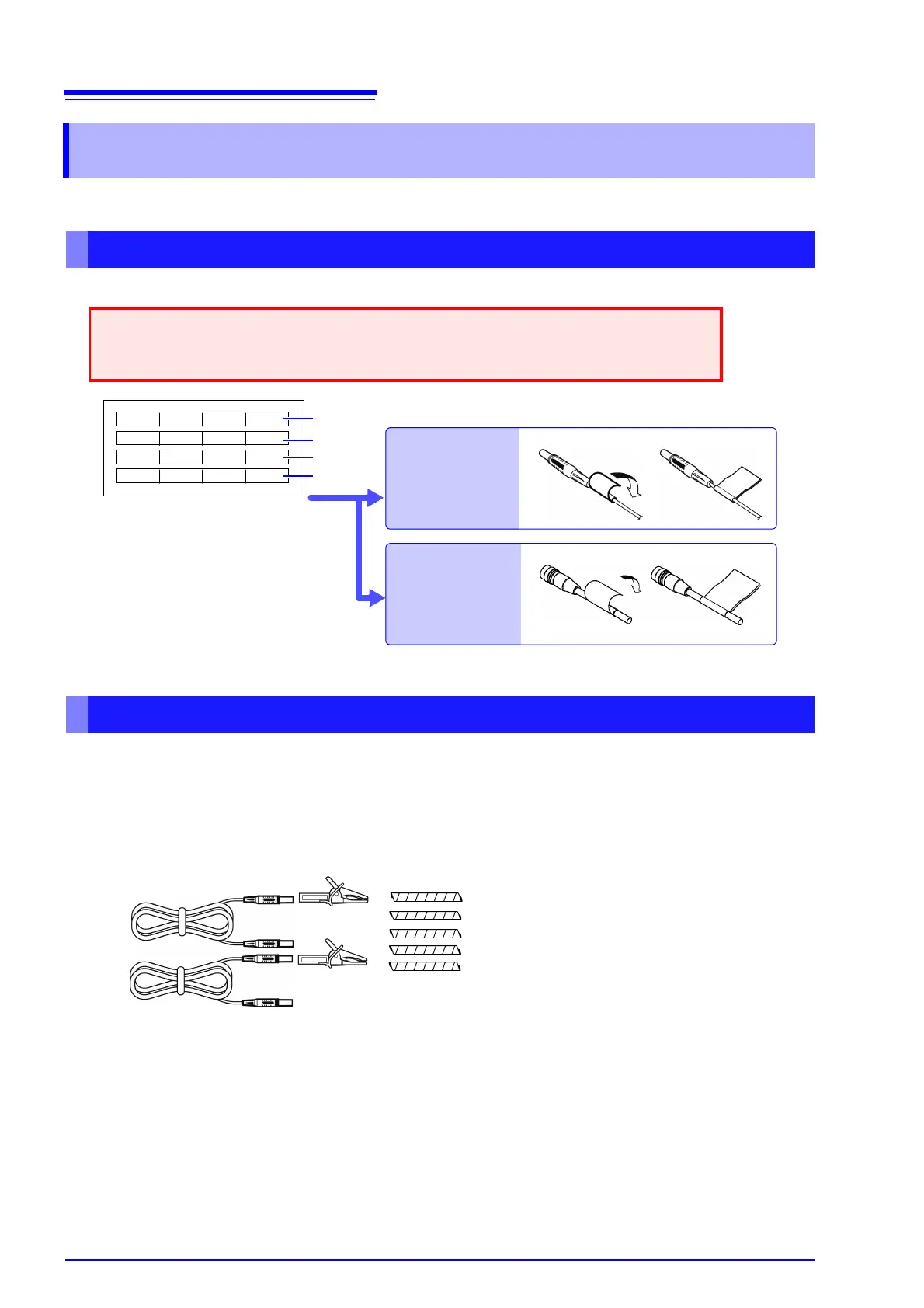

3.2 Initial Instrument Preparations
26
Perform the following before starting measurement the first time.
The labels are provided to clearly indicate which cable connects to each input jack.
Five spiral tubes are supplied with the Model L9438-50 Voltage Cord.
Use the spiral tubes as needed to wrap red and black leads together.
Preparation items
3.2 Initial Instrument Preparations
Put the provided input cord labels for each voltage cord and current sensor
Before applying the labels
Wipe any dust from the surface of the voltage measurement cables and current sensors,
and ensure that it is dry.
Measurement Cable Labels
For each input jack, apply labels
with the same color near the jack
and to its corresponding voltage
measurement cable lead or clamp
sensor cable.
Apply labels to both
ends of the voltage
measurement ca-
bles.
Apply labels to both
ends of the current
sensor cables.
Red
Yellow
Blue
Gray
Bundle the voltage measurement cable leads with the spiral tubes
L9438-50 Voltage Cord
Alligator Clips ×2 (one each red and black)
Banana Plug Leads ×2 (one each red and black)
Spiral Tubes
×5 (for cable bundling)
To Next Page
