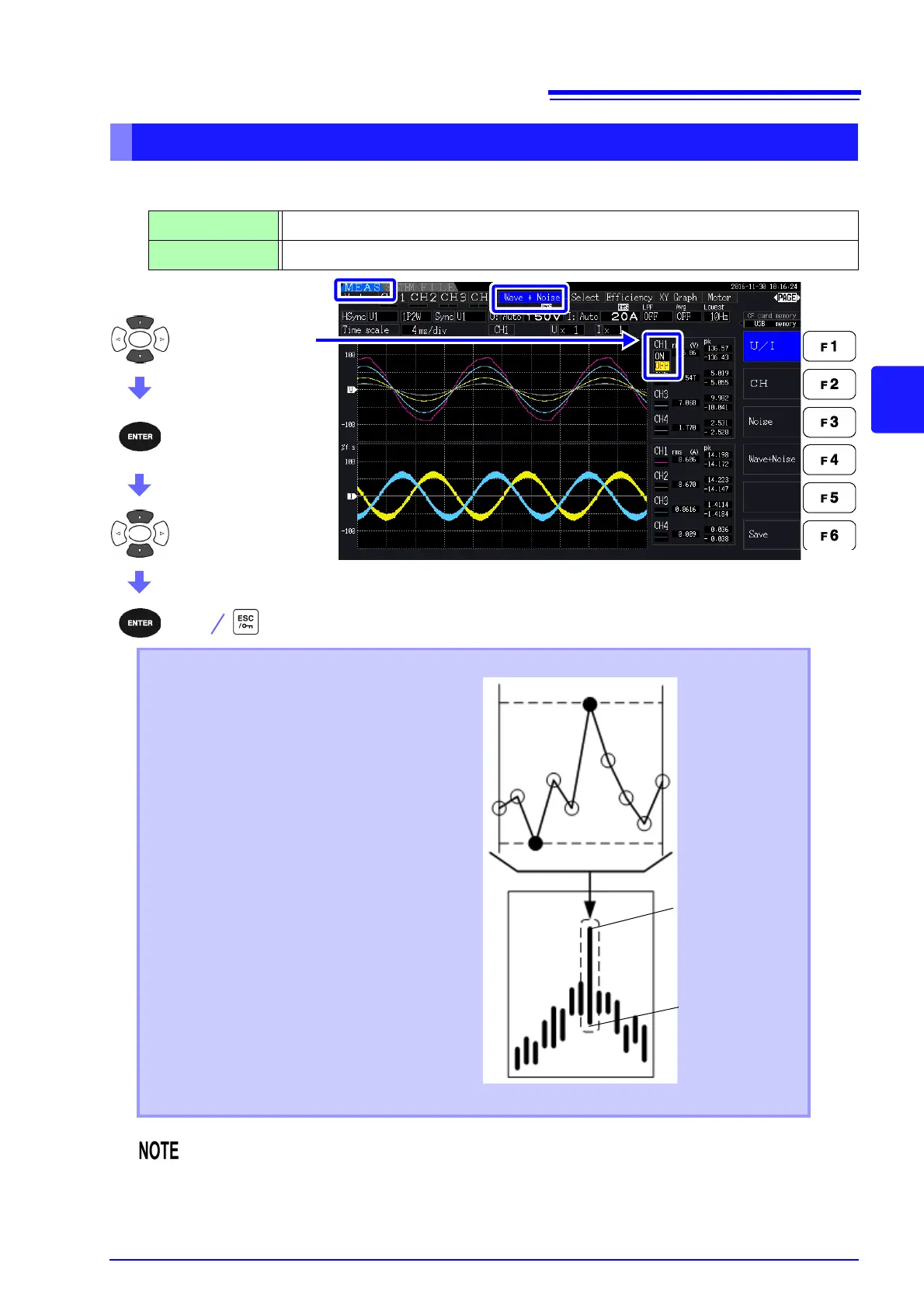

4.5 Viewing Waveforms
81
4
Chapter 4 Viewing Measurement Values
Select whether to display or not display waveforms.
Available settings are [U/I] and [CH].
Hiding and Displaying Waveforms
ON Display waveforms
OFF Do not display waveforms
Selects from the
pull-down menu
Displays the pull-down
menu
Select the channel to
change
Enter Cancel
The waveform displayed on the screen or
the waveform data saved in "Saving
Noise Data and Waveform Data" (p. 145)
always uses the Peak-Peak compressed
waveform data sampled at 500 kS/s.
Therefore, even if the sampling speed is
set low, it will be an accurate waveform
with peak information of the waveform
before compression.
The data of saved waveform data is
linked to the same number of points for
noise analysis, and for each point, the
maximum value and minimum value in
the figure on the right are both saved.
Waveform data for 50 kS/s
Sampling value for 500 kS/s
Maximum value
Minimum value
Waveform
for 50 kS/s
Maximum value
Minimum value
• To shorten the time it takes to renew the waveform display, decrease the number of points
for noise analysis. The quickest display renewal is 1000 points. See "4.6.2 Setting the
Sampling Frequency and Points" (p. 85)
• Changing the settings for waveform display and noise analysis do not affect the electric
power or the sampling for harmonic measurement.
