4.6 Viewing Noise Measurement Values (FFT Function)
84
The waveform to be analyzed and it's noise analysis results can be displayed at the same time.
Displaying Waveforms and Noise
Pressing the HOLD key will trigger the HOLD state. However, display data updates will not
function for the waveform display.
See "5.3.1 Data Hold Function" (p. 112)
Select [Wave + Noise]

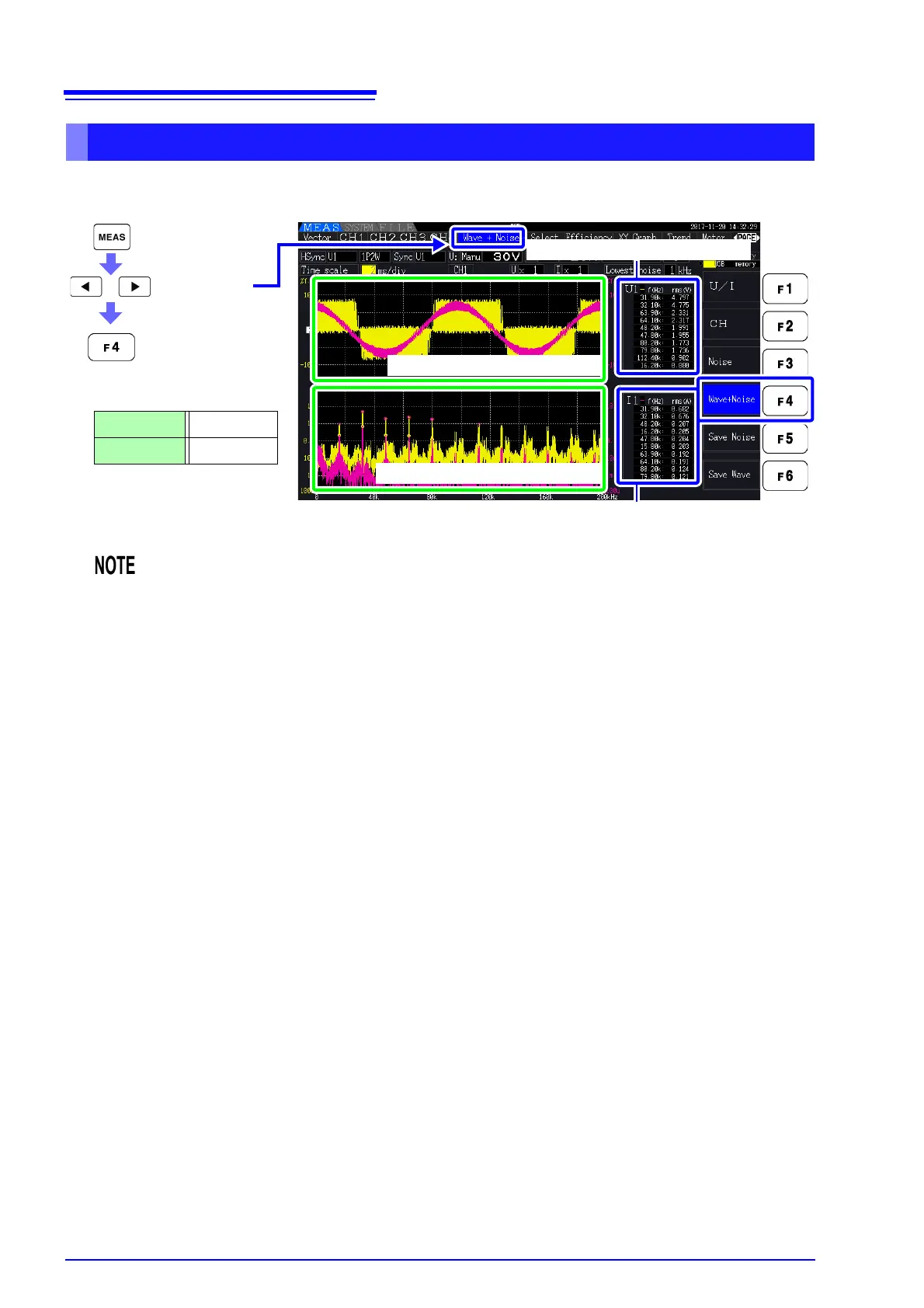

Display the
[
Wave + Noise]
page
Voltage and Current Waveforms
Voltage and Current Noise Graphs
Noise Voltage Numerical Value
Waveform Colors
Voltage Yellow
Current Red
Noise Current Numerical Value
