Hirschmann RS20 User Manual

Operation Diagnosis
Basic Configuration
Release 6.0 07/2010
9.3 Out-of-band Signaling
189
Proceed as follows to signal changes to the fan status via a signal contact
and with an alarm message:
 Select the Diagnostics:Signal Contact dialog.
 Select the signal contact you want to use (in the example, signal
contact 1) in the corresponding tab page “Signal contact 1” or
“Signal contact 2”.
 In the “Signal contact mode” frame, select “Function monitoring”.
 In the “Function monitoring” frame, select the fan monitoring.
 Click “Set” to temporarily save the entry in the configuration.
 Select the
Basics: Load/Save dialog.
 In the “Save” frame, select “To Device” for the location and click
“Save” to permanently save the configuration in the active
configuration.

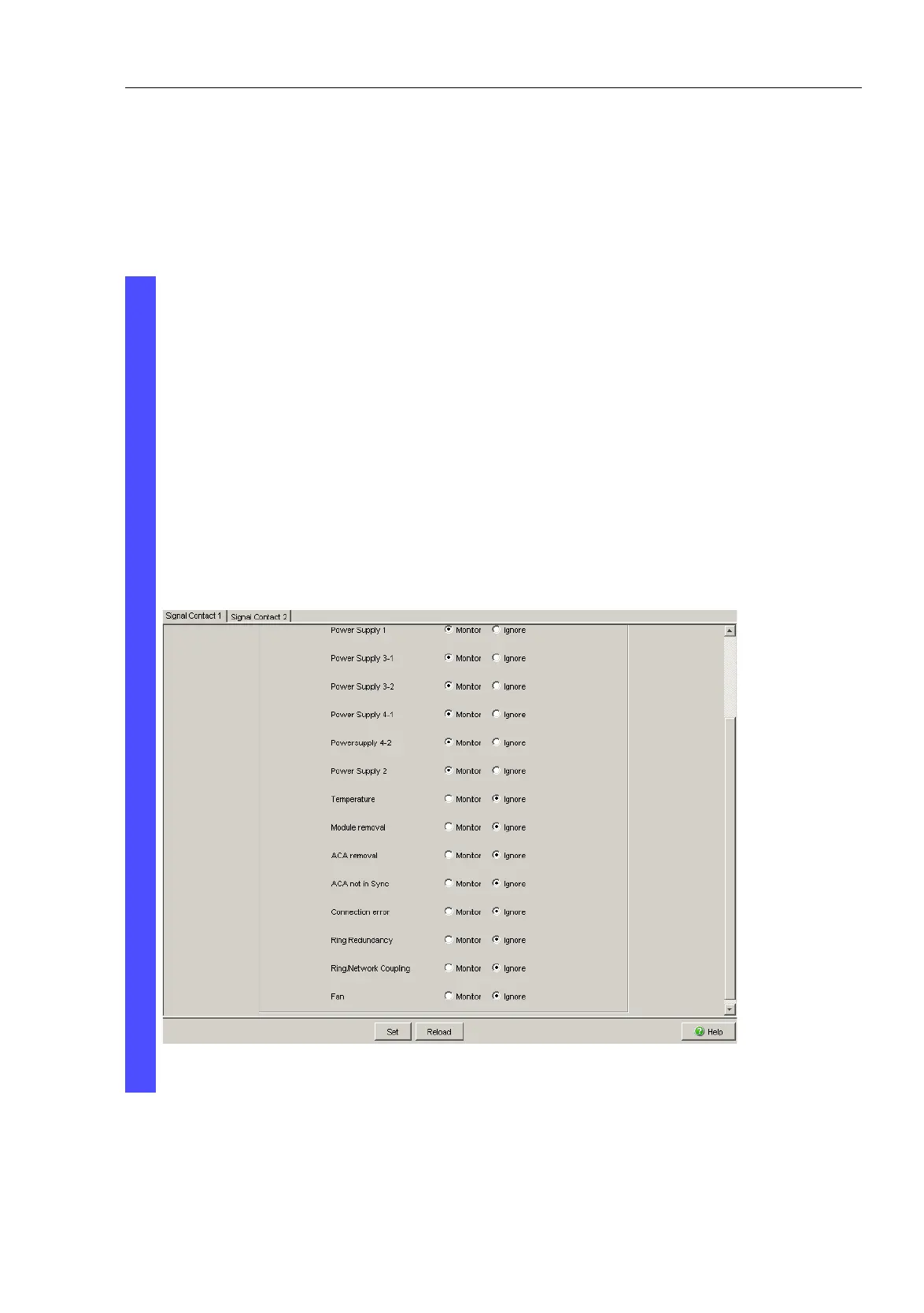

Figure 52: Monitoring the fan with the signal contact and trap

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
