9.8 Topology Discovery
201
This dialog allows you to switch on/off the topology discovery function
(LLDP). The topology table shows you the collected information for
neighboring devices. This information enables the network
management station to map the structure of your network.
The option "Show LLDP entries exclusively" allows you to reduce the
number of table entries. In this case, the topology table hides entries
from devices without active LLDP support.

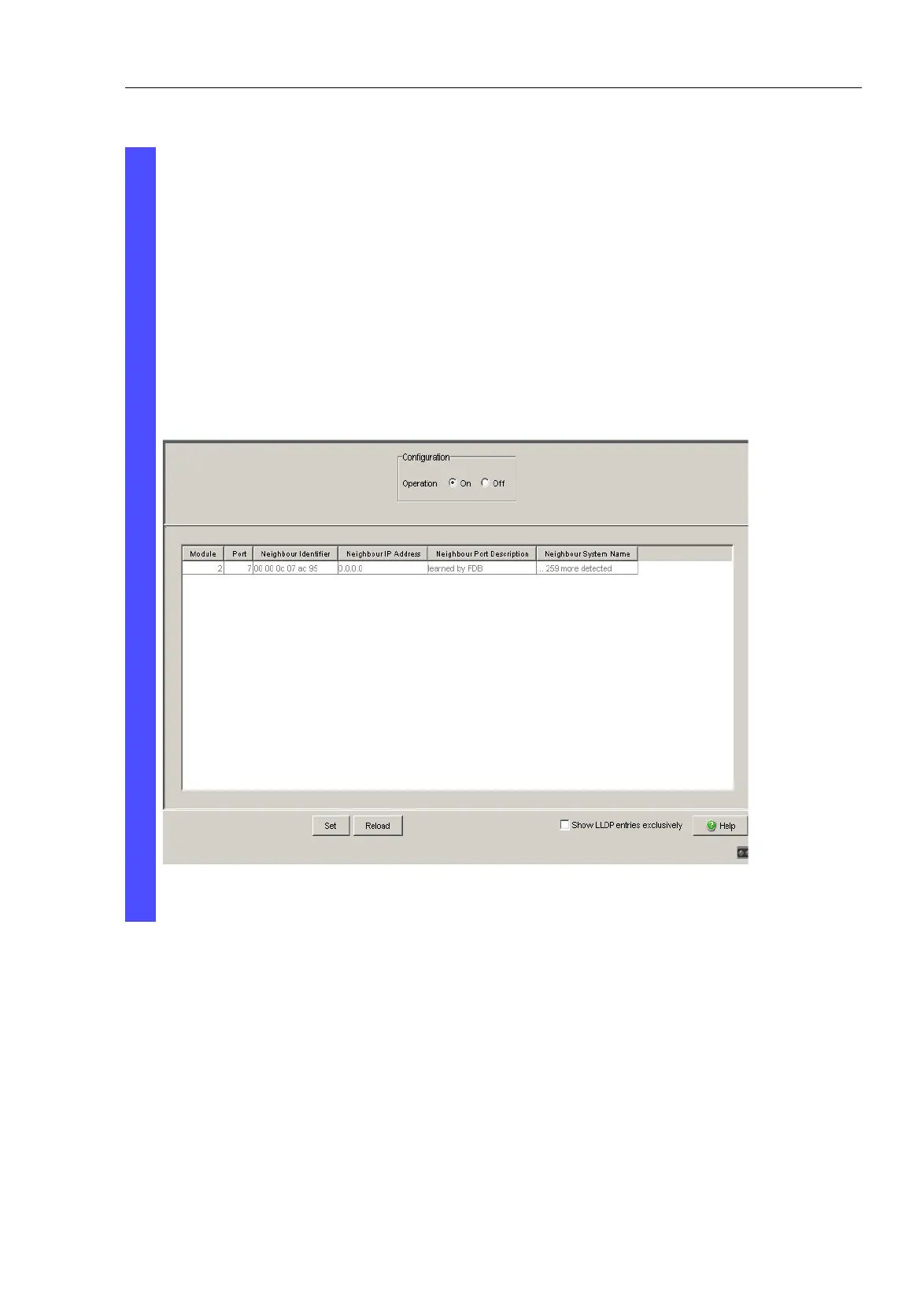

Figure 56: Topology discovery

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
