Hirschmann RS20 User Manual

Setting up the Configuration
Environment
Basic Configuration
Release 6.0 07/2010
A.1 Setting up a DHCP/BOOTP Ser-
ver
221
 Add a profile for each device type.
If devices of the same type have different configurations, then you add a
profile for each configuration.
To complete the addition of the configuration profiles, click OK.

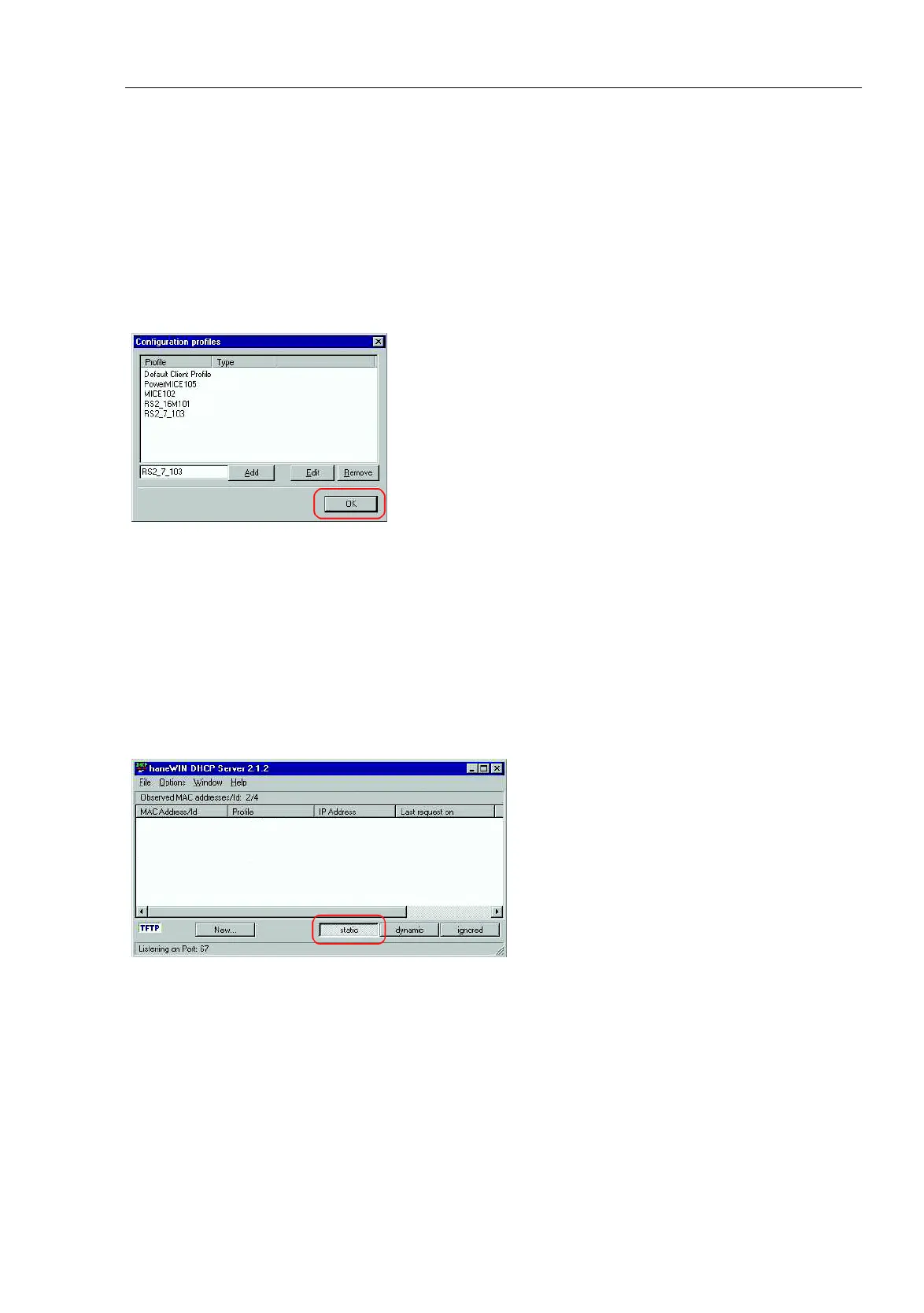

Figure 65: Managing configuration profiles
 To enter the static addresses, click Static in the main window.
Figure 66: Static address input
 Click New.

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
