Hirschmann RS20 User Manual

Setting up the Configuration
Environment
222
A.1 Setting up a DHCP/BOOTP Ser-
ver
Basic Configuration
Release 6.0 07/2010

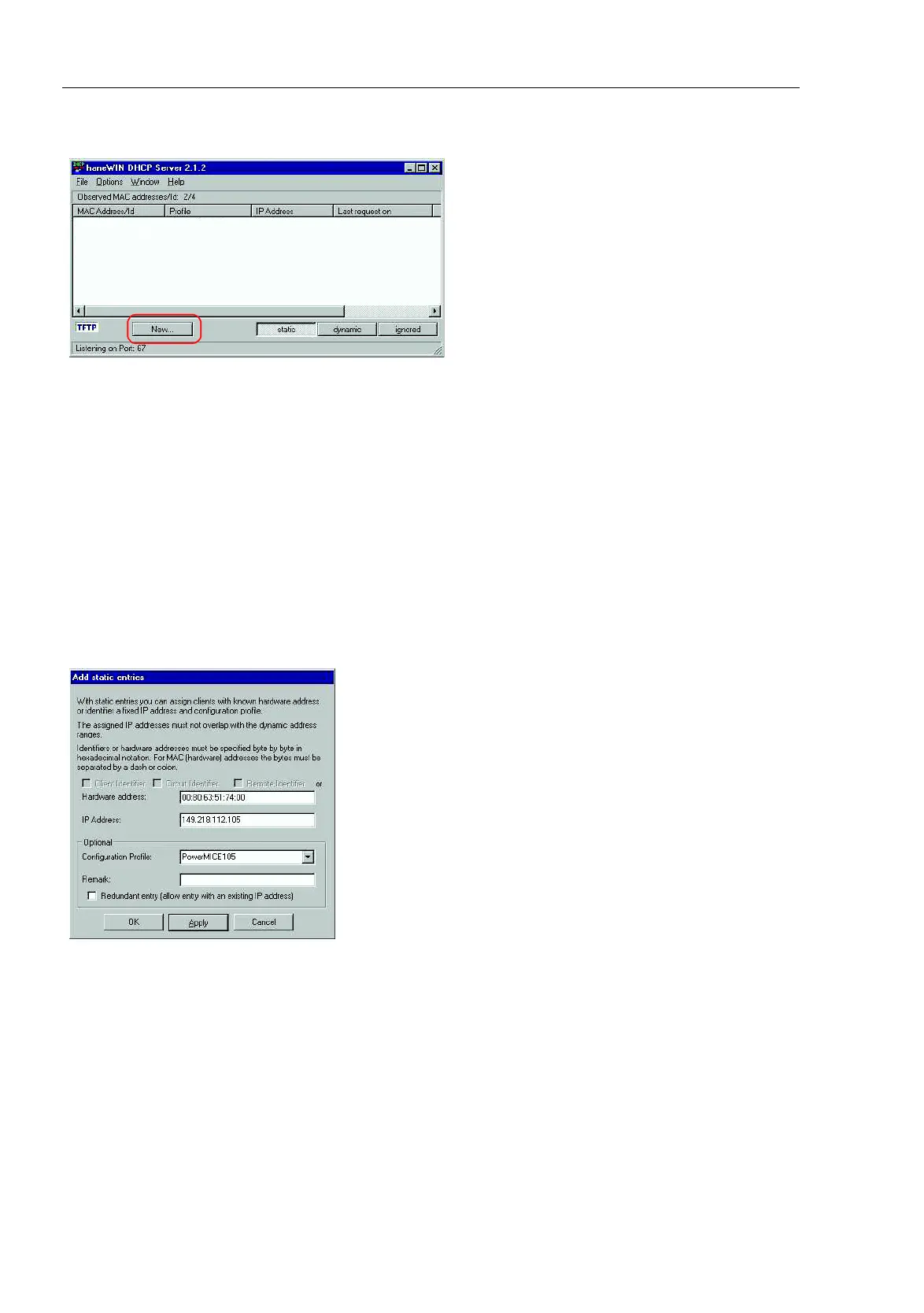

Figure 67: Adding static addresses
 Enter the MAC address of the device.
 Enter the IP address of the device.
 Select the configuration profile of the device.
 Click Apply and then OK.
Figure 68: Entries for static addresses
 Add an entry for each device that will get its parameters from the DHCP
server.

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
