26
MACH 100
Release
07/09
Warning
When installing the device, make sure the ventilation slots re-
main unobstructed, as otherwise the device can overheat and
be damaged.
Note: When operating the device in environments with strong vibrations,
the device can be fastened with two additional brackets at the back of the
switch cabinet (see on page 38 „Accessories“), not included in the deliv-
ery.
Mounting the MACH 100 on the wall
Use the pre-mounted brackets included in the delivery as shown in the
following figure (see fig. 16).
Attach two additional brackets to the device (see on (see on page 38
„Accessories“), not included in the delivery) as shown in the following
figure (see fig. 16).
Fasten the device by screwing the brackets to the wall.
Warning
When installing the device, make sure the ventilation slots re-
main unobstructed, as otherwise the device can overheat and
be damaged.

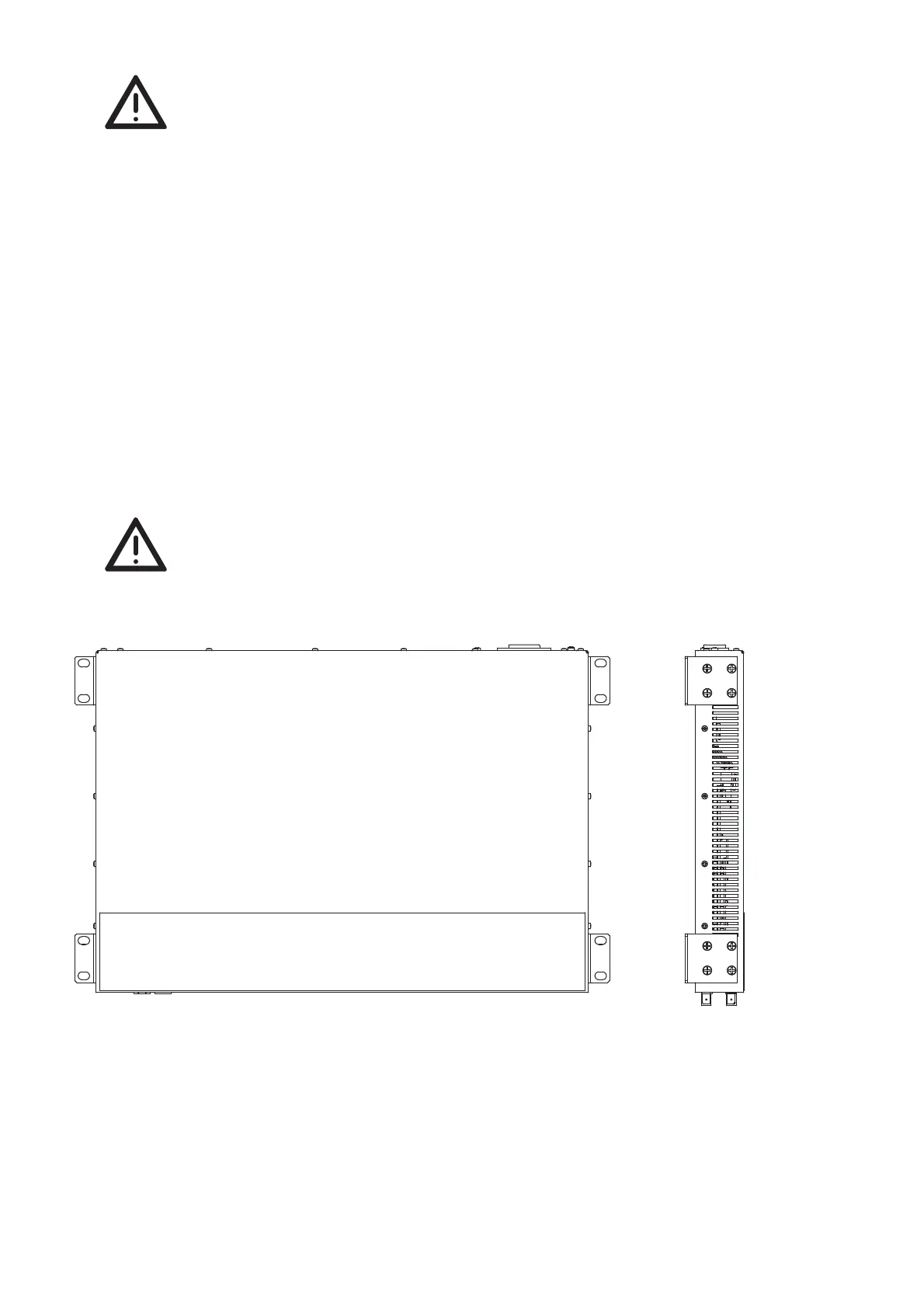

Figure 16: Vertical mounting on the wall
Note: The shielding ground of the connectable industrial twisted pair lines
is connected to the front panel as a conductor.
