Hitachi RPI-4.0FSN4E Service Manual

3 Piping work and
refrigerant charge
110
SMGB0077 rev.0 - 01/2013

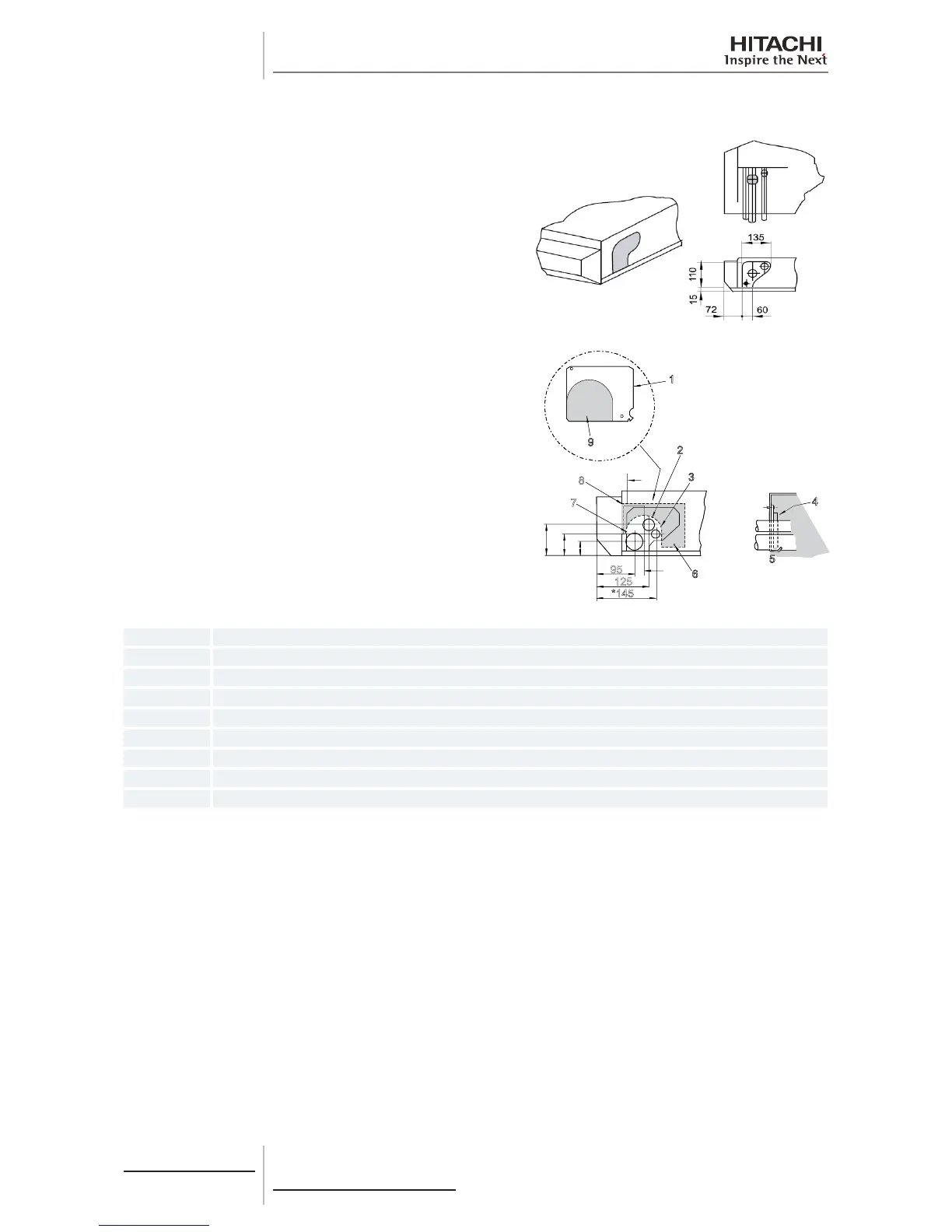

5 Install the pipes through it and seal them using the insulation supplied, as indicated below.
Rear side.
Open the Knockout hole
Seal piping.
P
1
2
3
4
5
6
7
8
9
P
1
2
3
4
5
6
9
125
*145
54
83
38
95
1 Sealing plate supplied (0.8x118x142 mm)
2 Gas refrigerant pipe
3 Liquid refrigerant pipe
4 Seal with insulation
5 Sec. P.P.
6 M4 screw
7 Sealing plate
8 M4 screw
9 Knockout hole
