10.1.9 Removing Float Switch
1 (1) Remove the drain pan according to the item “Removing
Drain Pan”.
2 (2) Remove the insulation which attaches the wires for oat
switch and drain-up mechanism together.
3 (3) Cut the plastic band xing the wires at the xing plate for
oat switch.
4 (4) Removing Float Switch
The oat switch is attached next to the drain-up mechanism.
Remove the oat switch by loosening the xing screw for the
xing base.
N O T E
When reassembling, wrap upthe wiresfor oatswitch and
drain-up mechanism together by the insulation. Fix securely
them to the original position. When attaching the drain pan
again, pay attention not to pull the wires strongly. Otherwise,
the insulation attaching at the cabinet may be peeled.
N O T E
Pay attention to handle the oat switch.  If it is
dropped to a oor, the malfunction may occur.
Whenattachingtheoatswitch,tightenthescrewbyhand.
(Do not use a motor-driven screwdriver.)

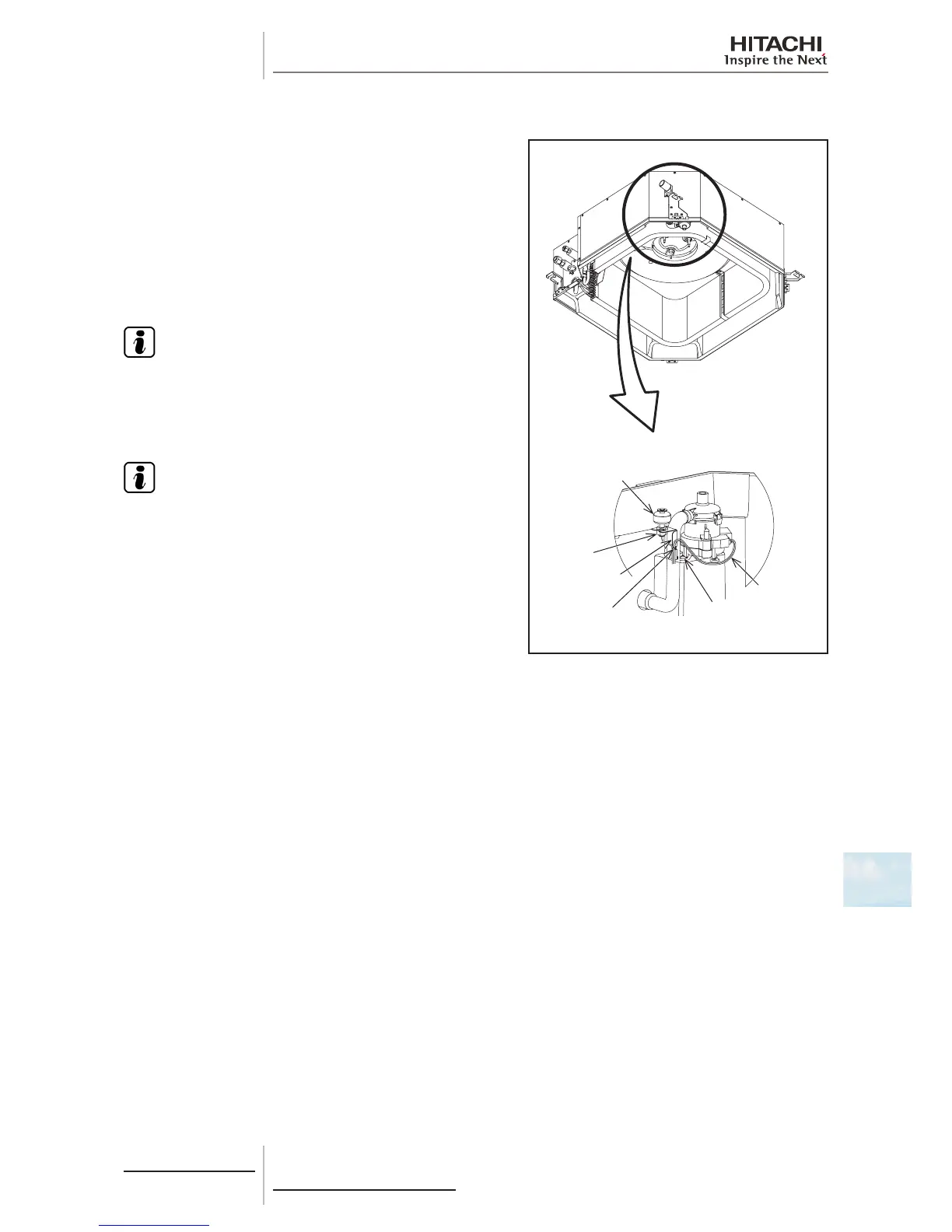

Float Switch
Plastic Band
Lead Wires
Nut
Fixing Plate for
Float Switch
Screw for
Fixing Plate
