10.9.9 Removing Drain Pan
Take care when removing the drain pan, as water may have collected in the drain pan.

For RPK-(0.8-1.5)FSN(H)3M
Do not remove the horizontal louver. Otherwise, some component may be damaged.
1 Remove the front panel according to the “Removing Front Panel” chapter.
2 Remove the electrical box according to the “Removing Electrical Box” chapter.
3 Release the catches xing the drain pan.
i. 1.0HP (3 portions) : (A)×1, (B)×1 and (C)×1
ii. 1.5HP (4 portions) : (A)×2, (B)×1 and (C)×1
Then draw the drain pan in the direction of the arrow in the gure below to remove it.
N O T E :
Beforeremovingthedrainpan,checkthatthedrainhoseisnotxed.Ifthedrainhoseisrmlyxed,thedrainpancannot
be removed.
4 When mounting the drain pan, mount it in the reverse procedure. Make sure that the catches xing the drain pan,
mentioned in the procedure (3), are fastened.
Fixing Catch (A)
Fixing Catch (C)

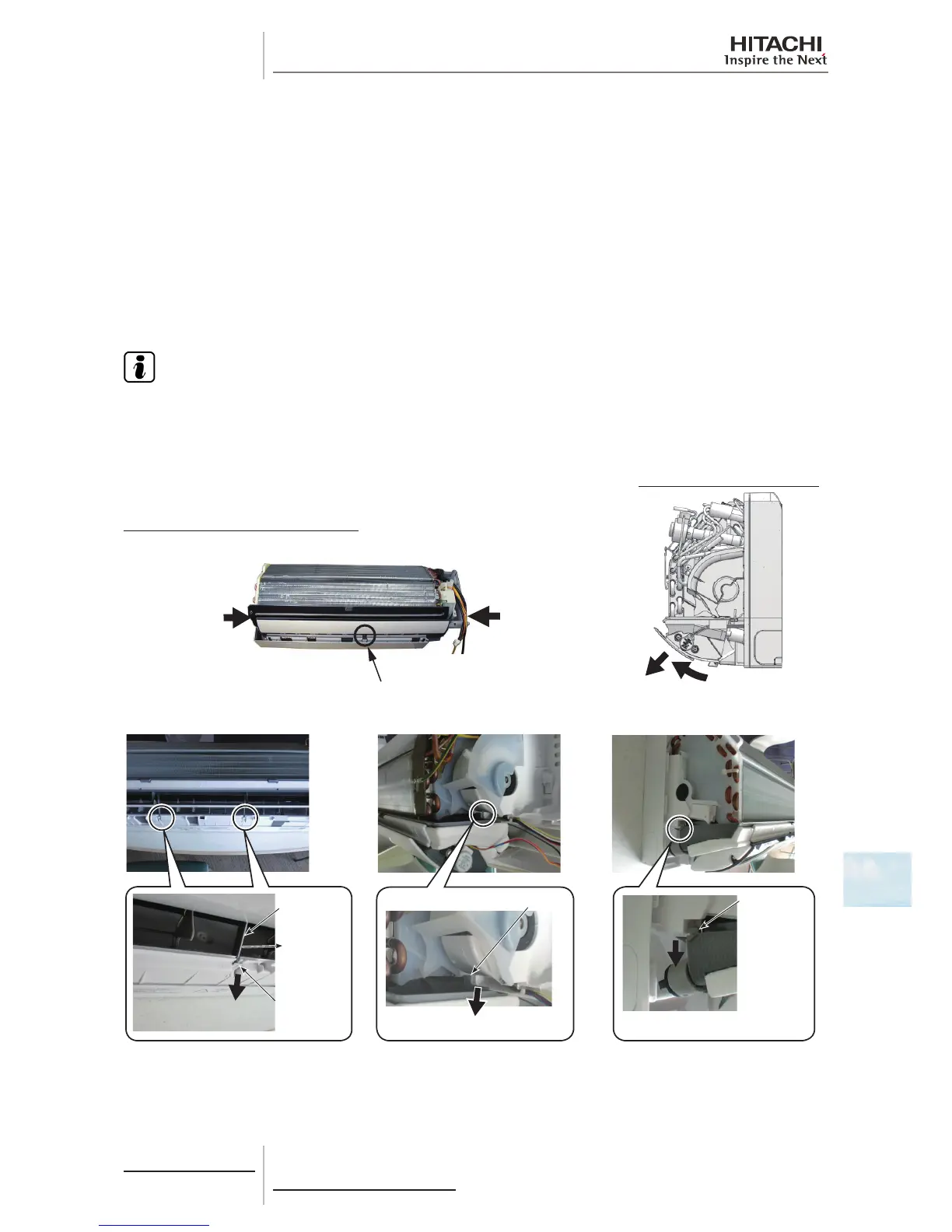

Positions of Fixing Catches for Drain Pan
(Example: 1.5HP)
Fixing Catch (B)
(A)
Center Pole
of Drain Pan
Pull the drain
pan frontward.
Fixing Catch
for Drain Pan
Fixing Catch for Drain Pan
Release the catch in the direction
of the arrow.
(B)
(C)
Fixing Catch
for Drain Pan
Release the catch in the direction
of the arrow.
Direction for Removing Drain Pan
1. Draw the drain
pan frontward.
2. Pull the drain pan
frontward and
downward.
