4.1.13 Connection between units H-LINK and H-LINK II
FSN3EiFSN3Ei

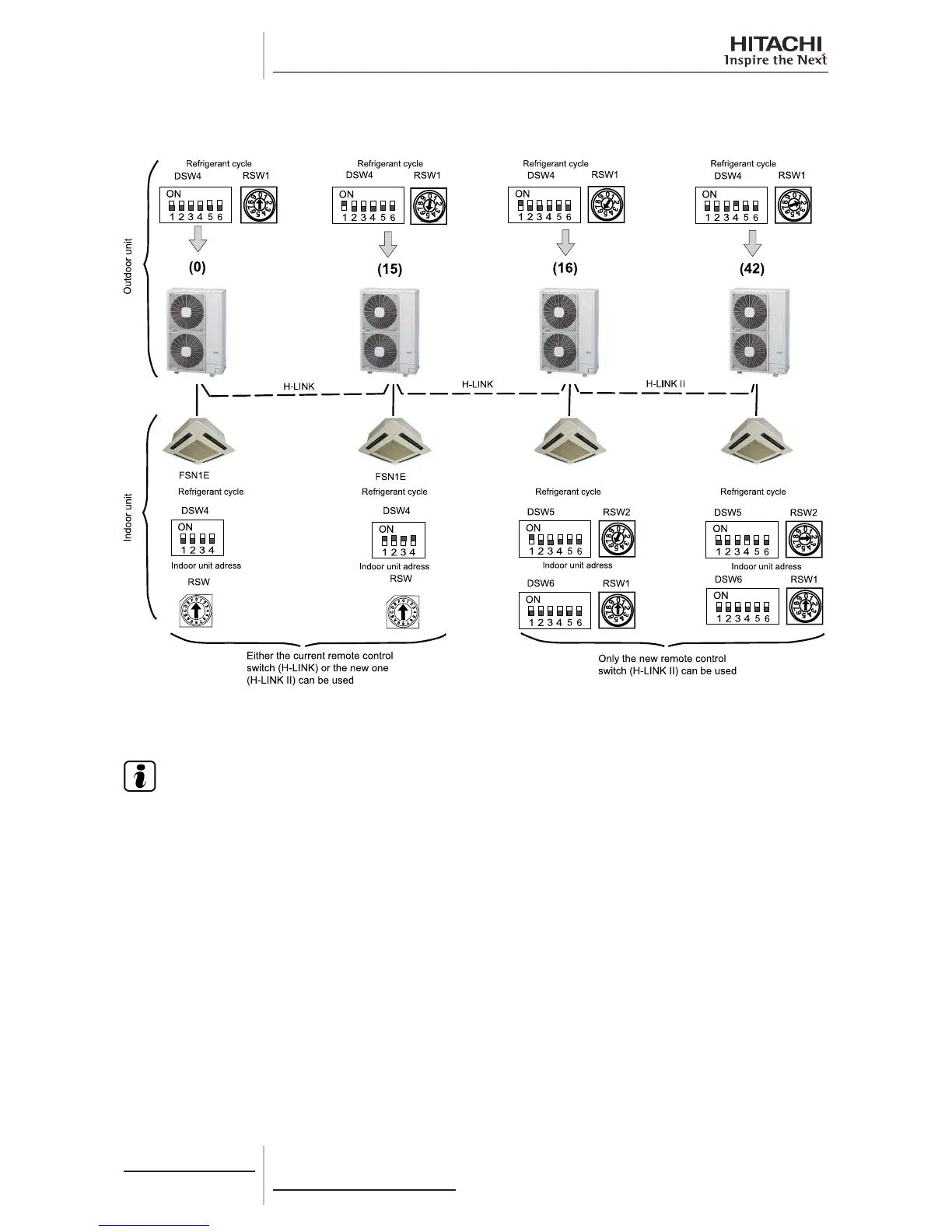

For mixed H-LINK and H-LINK II systems, set the H-LINK units in the rst 16 positions of the system, as shown in the
following gure. There are 26 systems with FSN(2/3/4)E indoor units.
N O T E
• H-LINK is able to manage up to 160 indoor units.
• When PSC-5S and CSNET WEB 2.0 (only compatible with H-LINK), are used, remember that only 16 indoor
units and 16 outdoor units can be managed.
