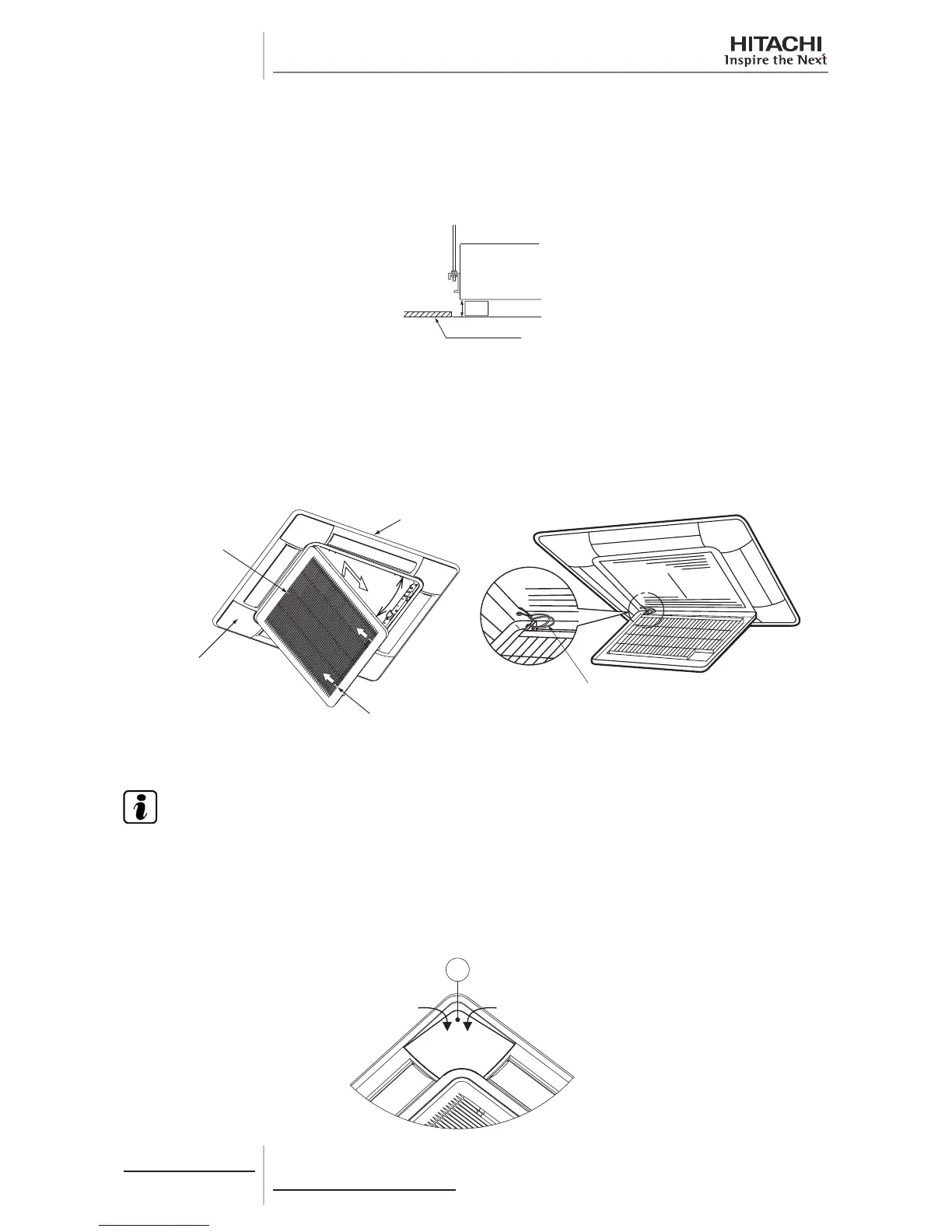

2.1.4 Air panel installation
Check the indoor unit height from the false ceiling surface
Check the distance between the indoor unit and the false ceiling. It is 12+5mm as shown below.
12
+5
0
Ceiling surface
Indoor unit
If not, adjust the distance by using the checking scale with maintaining the levelness of the indoor unit.
Removing Air Intake Grille from Air Panel.
1 Push both ends of knobs at the air inlet grille toward the arrow direction, open the air inlet grille until the angle of
approximately 45° from the air panel surface. After lifting the air inlet grille keeping it inclined, draw the air inlet grille
forward. (Remove the lament tape (4 portions) xing the air lter.).
Knob
Air inlet grille
Corner pocket cover
(4 portions)
Air panel
Supporting string
2 Lift the grille keeping it inclined
3 Draw the grille towards the open space after lifting.
N O T E
Perform the attaching work in the reverse procedure of removing for install the air intake grille. The air inlet grille
can be attached from any 4 directions by rotating it. The air intake grille direction can be selected freely.
Installing Air Panel
1 Remove the cover of the corner pocket (4 portions). Remove pulling A part toward the arrow direction.
A
To Next Page
