10 Servicing
374
SMGB0077 rev.0 - 01/2013

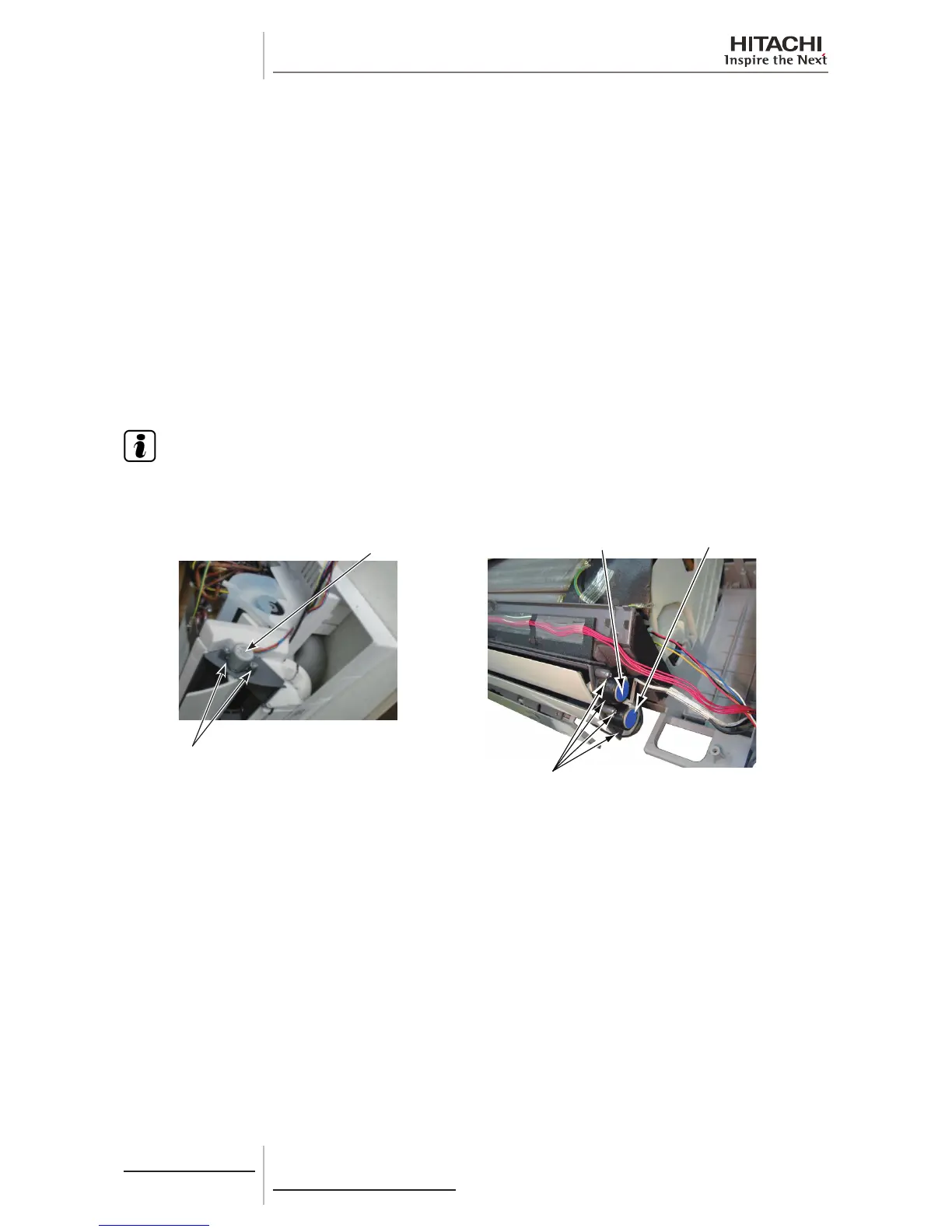

10.9.8 Removing AS Motor
For RPK-(0.8-1.5)FSN(H)3M
1 Remove the front panel according to the “Removing Front Panel” chapter.
2 Remove the electrical box according to the “Removing Electrical Box” chapter.
3 Remove 2 screws xing the AS motor to remove it. Then pull the AS motor outward and remove it from the shaft of the
horizontal louver.
4 When mounting the AS motor, insert the shaft of the AS motor into the D-cut portion of the horizontal louver. Then
mount the AS motor in the reverse procedure.
For RPK-(2.0-4.0)FSN(H)3M
1 Remove the front panel according to the “Removing Front Panel” chapter.
2 Remove the electrical box fron the cabinet according to the “Removing Electrical Box” chapter.
3 Remove 4 screws xing 2 AS motors to remove them. Then pull the AS motors outward and remove them from the
shaft of the horizontal louver.
4 When mounting the AS motors, insert the shafts of the AS motors into the D-cut portions of the horizontal louver. Then
mount the AS motors in the reverse procedure.
N O T E :
The AS motor connected to the black cord is for the upper horizontal louver and the AS motor connected to the white cord
is for the lower horizontal louver. Take care not to mount a wrong AS motor when mounting them.
To Next Page
