Hitachi RPI-4.0FSN4E Service Manual

4 Electrical wiring
160
SMGB0077 rev.0 - 01/2013

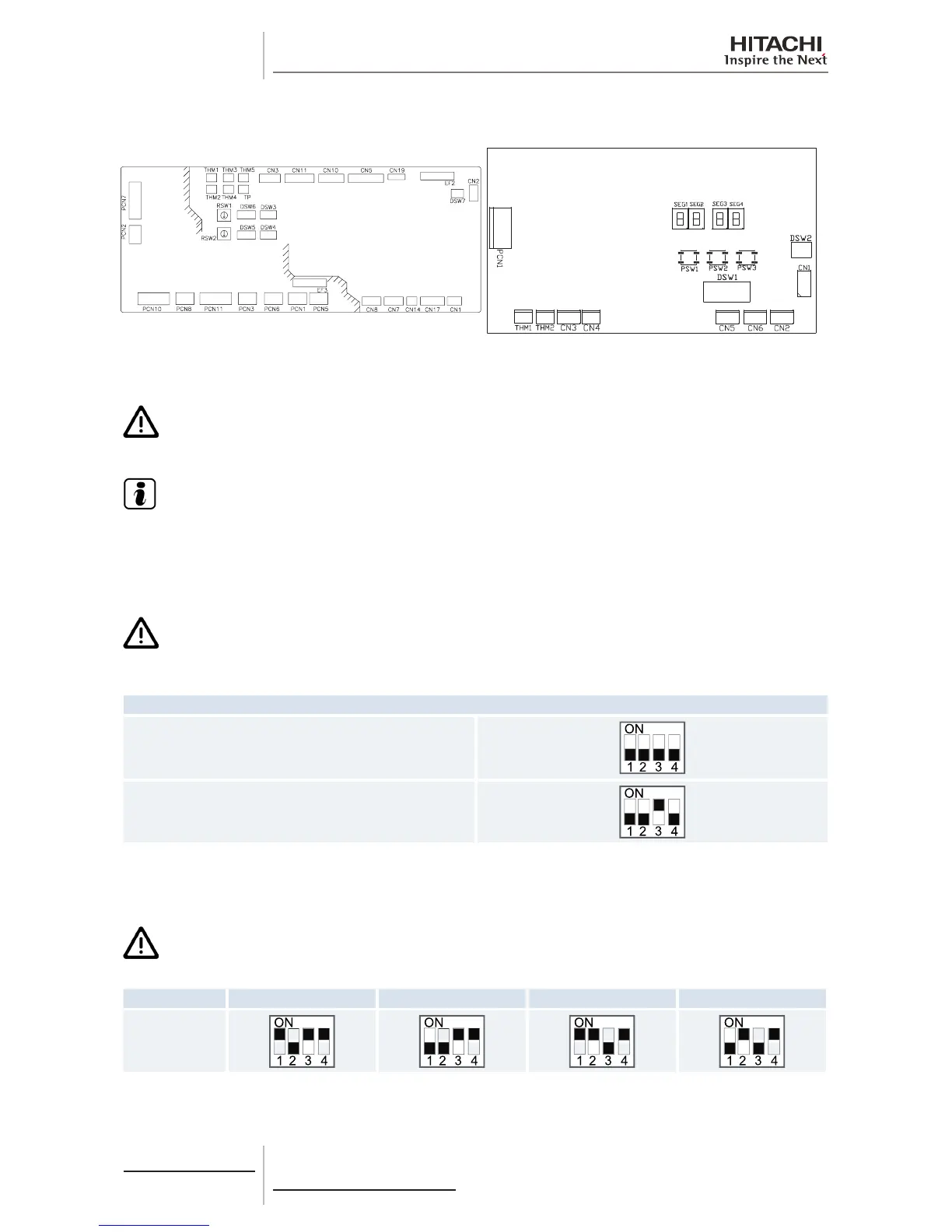

• DX-Interface
PCB1 PCB2
4.2.2 Functions of the DIP switches and RSW switches
C A U T I O N
Turn off the power supply before setting the DIP switches. If not, the settings will not be valid.
N O T E
• Thesymbol“■”indicatesthepositionoftheDIPswitches.Theguresshowthesettingbeforetransmission
or after selection.
• Ifthe“■”markisnotdisplayed,thisindicatesthatthepositionofthepinisnotaffected.
DSW2 switch: optional functions setting (only for RPK-FSN(H)3M)
C A U T I O N
Do not set the DSW2 switch, as it is factory-set prior to delivery.
RPK-(0.8-4.0)FSN(H)3M
Factory setting
Setting for indoor units installed side by side when wireless remo-
te control switch is used..
DSW3 switch: capacity code setting
This is used to set the capacity code corresponding to the power of the indoor unit.
C A U T I O N
Do not set the DSW3 switch, as it is factory-set prior to delivery.
HP 0.8 1.0 1.3 1.5
Setting position
