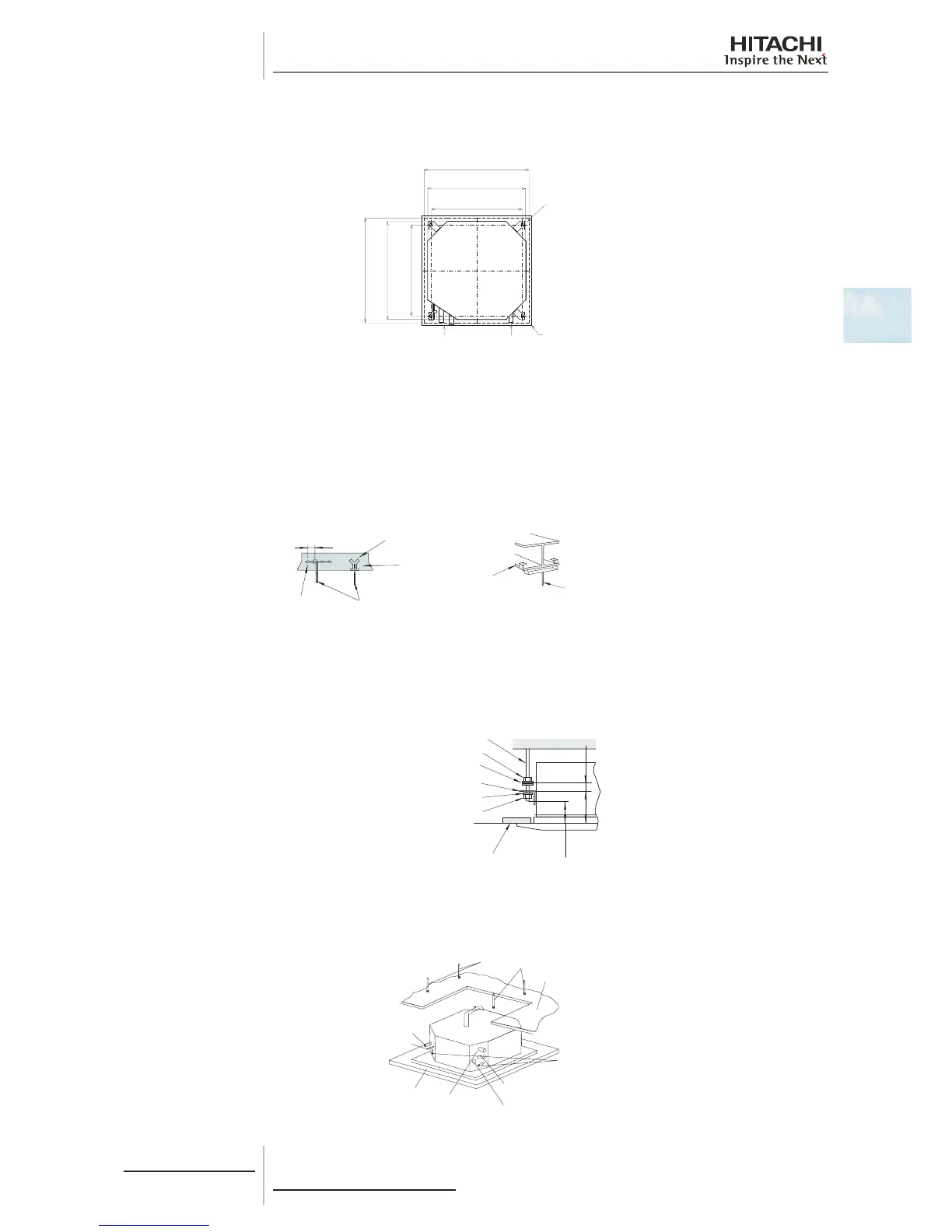

Opening of false ceiling
Cut out the area for the indoor unit in the false ceiling and install suspension bolts, as shown below:
Dimension of Opening: 860 to 910
4-Positions of
Suspension
Bolts
Optional Panel
Drain Piping
Connection Side
Piping
Connection
Side
(mm)
Dimension of Suspension
Bolts: 760
Unit size: 840
Dimension of Opening: 860 to 910
Unit size: 840
Dimension of Suspension
Bolts: 760
Check to ensure that the ceiling is horizontally level, otherwise water can not ow.
Strengthen the opening parts of the false ceiling.
Mounting of suspension bolts
Mount suspension bolts using M10 (W3/8) as size, as shown.
For concrete slab: For steel beam:
150 to 160mm
Insert (100 to 150Kg)
Concrete
Steel
Anchor Bolt (W3/8 or M10)
Suspension Bolt (w3/8 or M10)
I-Beam
Mounting of indoor unit
Mount the nuts and the washers to the suspension bolts. Put the washer so that the surface with insulation can faces
downwards as shown below:
Suspension Bolts (îš¿eld-supplied)
(mm)
Nut (îš¿eld-supplied)
Washer with Insulation (accessory)
Suspension Bracket (attached indoor unit)
Washer (accessory)
Nut (îš¿eld-supplied)
Surface of ceiling
Aprox. 52
102
Aprox. 50
Consider piping connection side before lift indoor unit.
Lift the indoor unit by hoist, and do not put any force on the drain pain.
Secure the indoor unit using the nuts, washers.
Suspension bolts (4)
Suspension
bracket
False ceiling
Liquid piping
Gas piping
connection
Panel (to be installed
later, shown only as
a reference)
Drain piping
connection
Wiring hole
Open the knockout hole
for wiring
To Next Page
