10 Servicing
310
SMGB0077 rev.0 - 01/2013
10.1.8 Removing Drain-Up Mechanism
1 Remove the drain pan according to the item “Removing Drain Pan”.
2 Remove the insulation which attaches the wires for oat switch and drain-up mechanism together.
3 Cut the plastic band xing the wires at the xing plate for oat switch.
4 Cut the hose band for drain hose by nipper, and remove the drain hose from the drain-up mechanism.
5 Remove two (2) xing screws for drain-up mechanism. When removing, hold the drain-up mechanism by hand in order
not to fall.
6 Remove the drain-up mechanism.
N O T E
Whenreassembling,wrapupthewiresforoatswitchanddrain-upmechanismtogetherbytheinsulationFix
securely them to the original position. When attaching the drain pan again, pay attention not to pull the wires
strongly. Otherwise, the insulation attaching at the cabinet may be peeled.

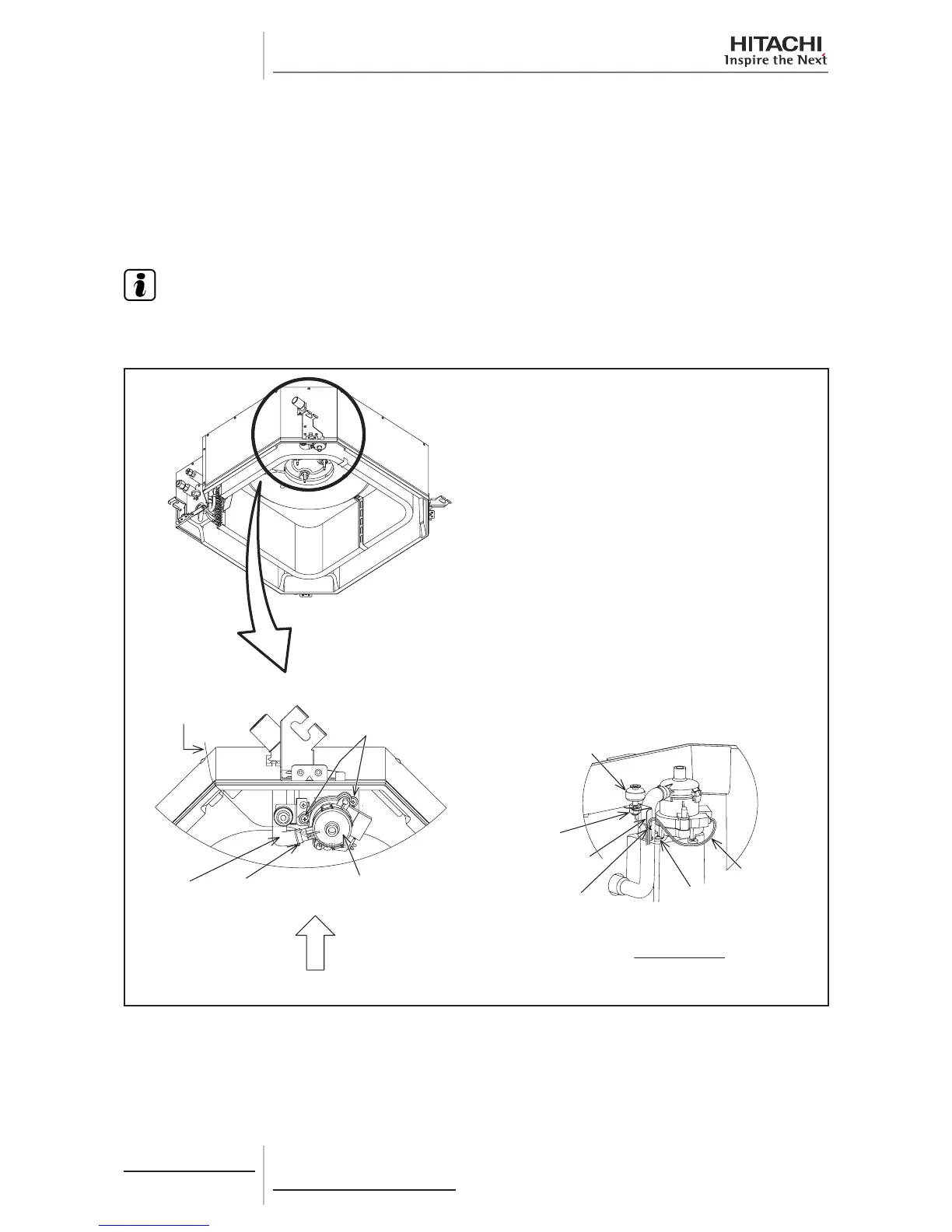

Fixing Screws
Wiring
Hose BandDrain Hose
Drain-up Mechanism
P
View from P
Float Switch
Plastic Band
Lead Wires
Nut
Fixing Plate for
Float Switch
Screw for
Fixing Plate
To Next Page
