Hitachi RPI-4.0FSN4E - 10 ELECTRICAL WIRING; 10.3 CONNECTION OF THE POWER SUPPLY CIRCUITS

2 Unit installation
SMGB0077 rev.0 - 01/2013
47
2
S

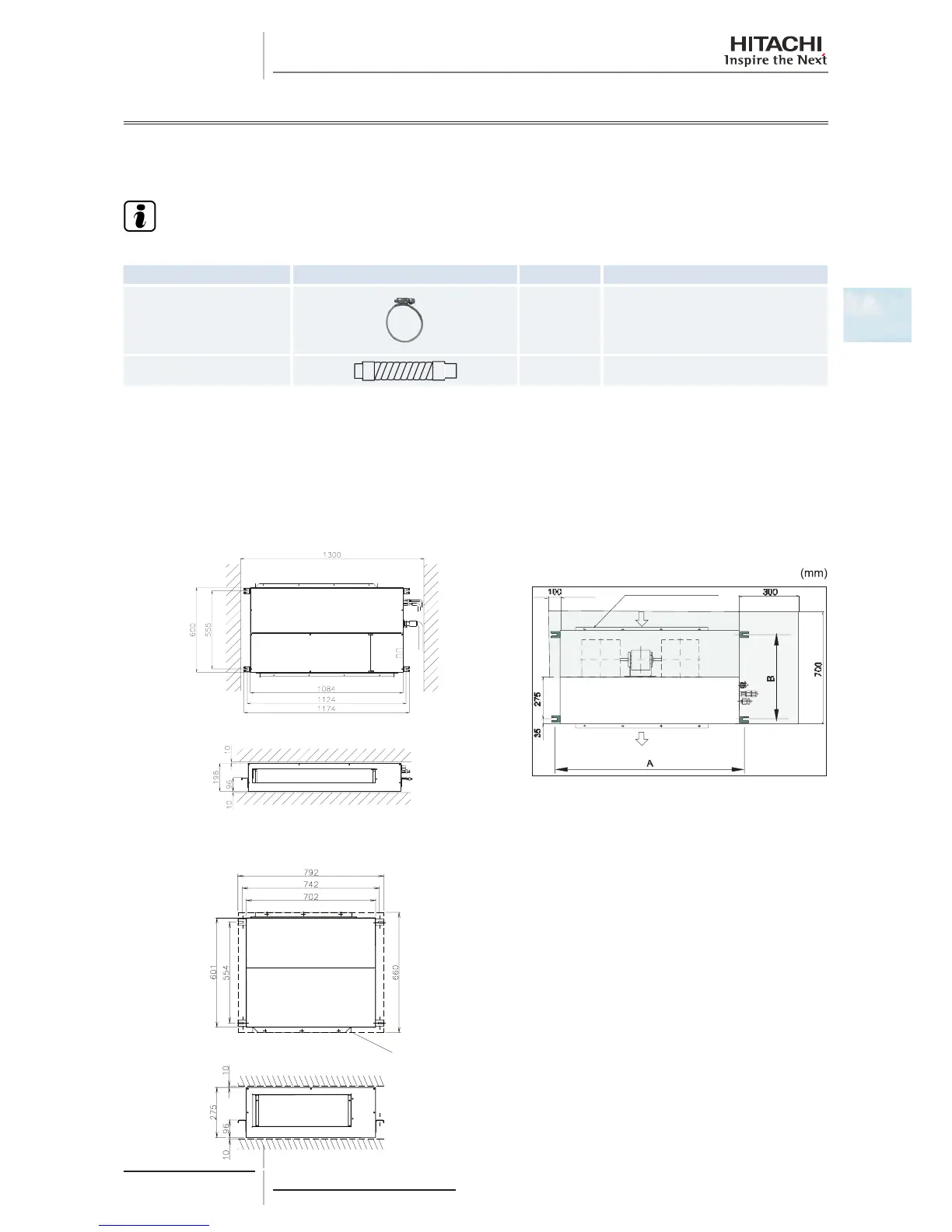

2.5 RPI(M) - Ducted indoor unit (0.8-6.0)FSN(4)E(-DU)
2.5.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
N O T E
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory Appearance Quantity Purpose
Wire clamp
1
For the drain hose connection.
(only for RPI-(0.8-1.5)FSN4E)
Drain hose
1 For drain connection (only for RPIM)
2.5.2 Unit installation
Initial checks
Check that there is enough space around the unit. Consult the corresponding chapter of the Technical Manual for information
on the unit measurements.
RPI - Ducted indoor unit (0.8-1.5)FSN4E RPI - Ducted indoor unit (2.0-6.0)FSN4E
(mm)
Service space of false ceiling
(Top view)
RPIM - Ducted indoor unit (0.8-1.5)FSN4E(-DU)
Ceiling hole
(mm)
