10 Servicing
342
SMGB0077 rev.0 - 01/2013

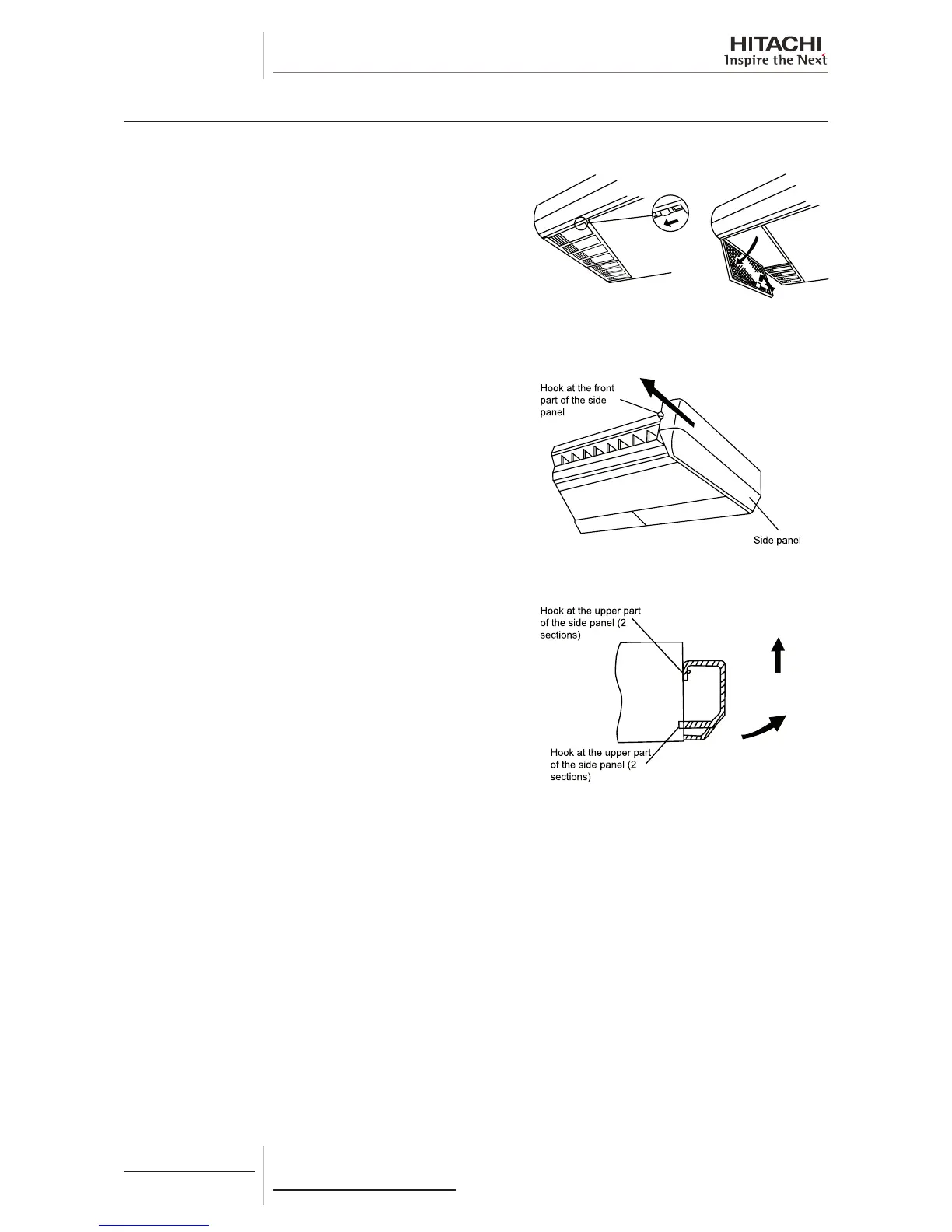

10.5 RPC - Ceiling
10.5.1 Removal of the air lter
Press the buttons on the grille backwards.
Open the air inlet grille downwards.
Lift the button and remove the lter.
10.5.2 Removal of the side panel
Pull the side panel forwards.
Release the hook from the lower part of the panel.
Lift the side panel.
