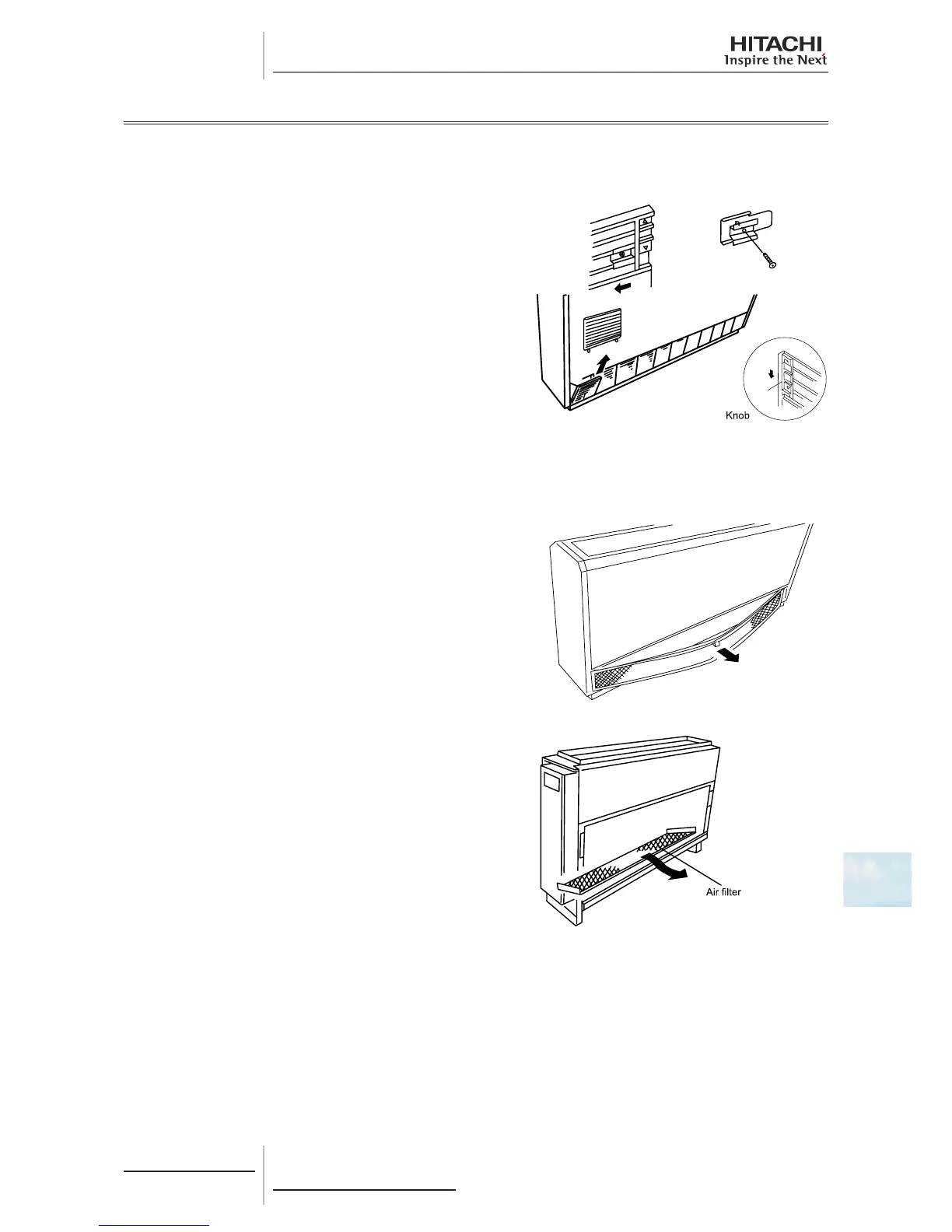

10.10.1 Removal of the air inlet grille
RPF-(1.0-2.5)FSN2E
Loosen the screws on the securing plate of the right part of the
grille then remove the plates.
Press the button on both sides of the grille in the direction indicated
by the arrow. The grille can be opened at a 30° angle.
Remove the air inlet grille from the hinges.
10.10.2 Removal of the air lter
RPF-(1.0-2.5)FSN2E
The air lter is located inside the air inlet grille. Remove the air inlet
grilles as indicated in section Removal of the air inlet grille.
Remove the lter by pulling the lter button.
