3 Piping work and
refrigerant charge
123
3
SMGB0077 rev.0 - 01/2013

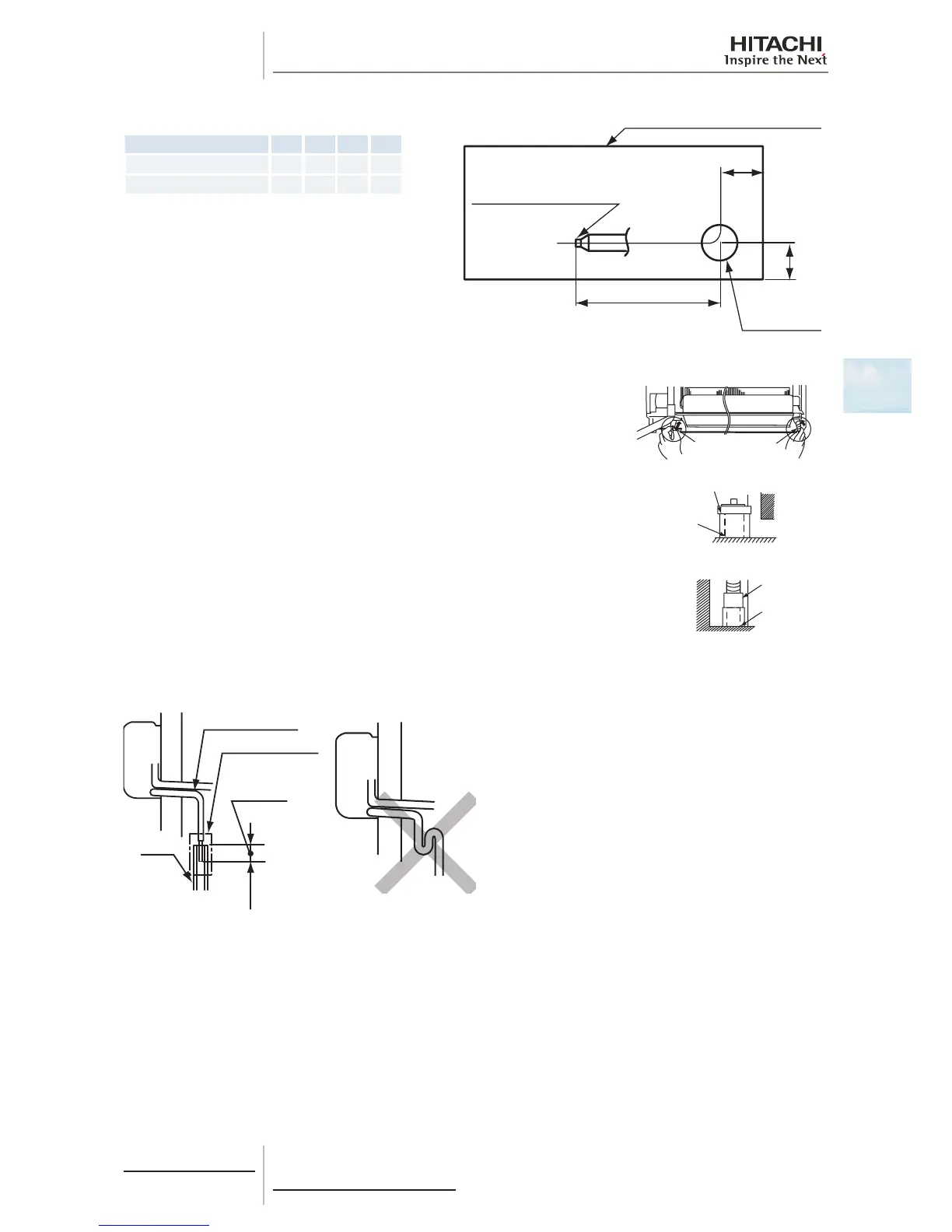

Unit: mm
Model A B C ØD
RPK-(0.8-1.5)FSN(H)3M 568 107 45 65
RPK-(2.0-4.0)FSN3M 550 141 42 80
A
B
C
(φ D)
(VP16)
Exterior contour for indoor unit
Hole for rear
side piping
Drain pipe connection
When the left side drain piping connection is performed, remove the cap of left side
drain pipe, and then attach this cap to the right side drain pipe in order to change drain
piping connection from right side to left side. If the cap is îš¿xed tightly, remove the cap
by using the plier. (Perform this procedure before the indoor unit is hung onto the wall.)
Right side
Insert until
this line
Drain
hose
Left side
Insert until
this line
Drain outlet
cap
Drain
outlet cap
Drain
hose
Provide a vinyl chloride pipe, VP16.
When the drain hose is used, do not create rising part or twist.
VP16
24mm
Create down-slope
Wrap the vinyl tape
Connection
Wrap surely the vinyl tape around the drain piping connection.
Insulate surely the drain pipe after the vinyl chloride pipe connection is completed.
6 Do not connect the drain pipe with sanitary or sewage piping or any other drainage piping.
7 After the drain piping work is completed, check that water ows smoothly by pouring water into the drain pan by a cup.
8 Wrap the îš¿eld-supplied insulation around the drain pipe running through the indoor.
9 When installing the pipe, do not tie the drain pipe and refrigerant pipe together.
