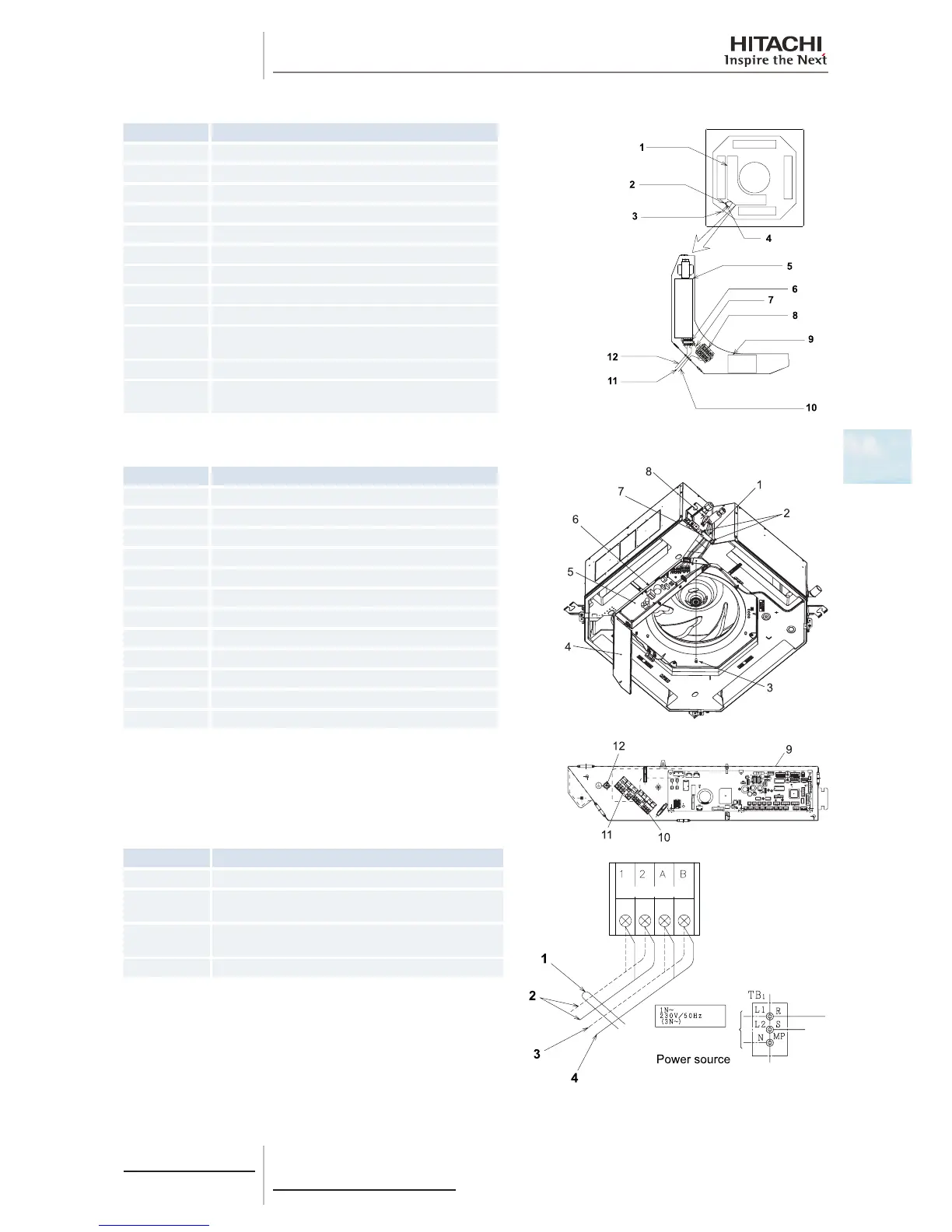

4 Electrical wiring
131
4
SMGB0077 rev.0 - 01/2013
For RCI-FSN3Ei
No. Part
1 Electrical box
2 Stop (metal)
3 Power supply, signal and remote control wiring
4 Screw
5 Printed circuit board (PCB)
6 Terminal strip (TB2)
7 Earthing screw
8 Terminal strip (TB1)
9 Printed circuit board (PCB)
10
Power supply wiring and signal wiring between the
outdoor and indoor unit
11 Remote control wiring
12
Communication wiring between the indoor and
outdoor unit
For RCI-FSN3
No. Part
1 Wiring connection hole
2 Screw for wiring support plate under piping cover
3 Screw (for electrical box cover)
4 Electrical box cover
5 PCB (Printed circuit board)
6 Electrical box
7 Wiring support plate
8 Cord clamp
9 Electrical box
10 Terminal board (TB2)
11 Terminal board (TB1)
12 Earth terminal
Part No.
1 Tie
2
Communication wiring between the indoor and
outdoor units and between indoor units
3
Operation control wiring (for group operations with
remote control only)
4 Remote control wiring
Firmly secure the cables using a tie inside the electrical box.
Cover the cables and the hole using a sealant to protect them from
condensation and insects.
