4 Electrical wiring
165
4
SMGB0077 rev.0 - 01/2013

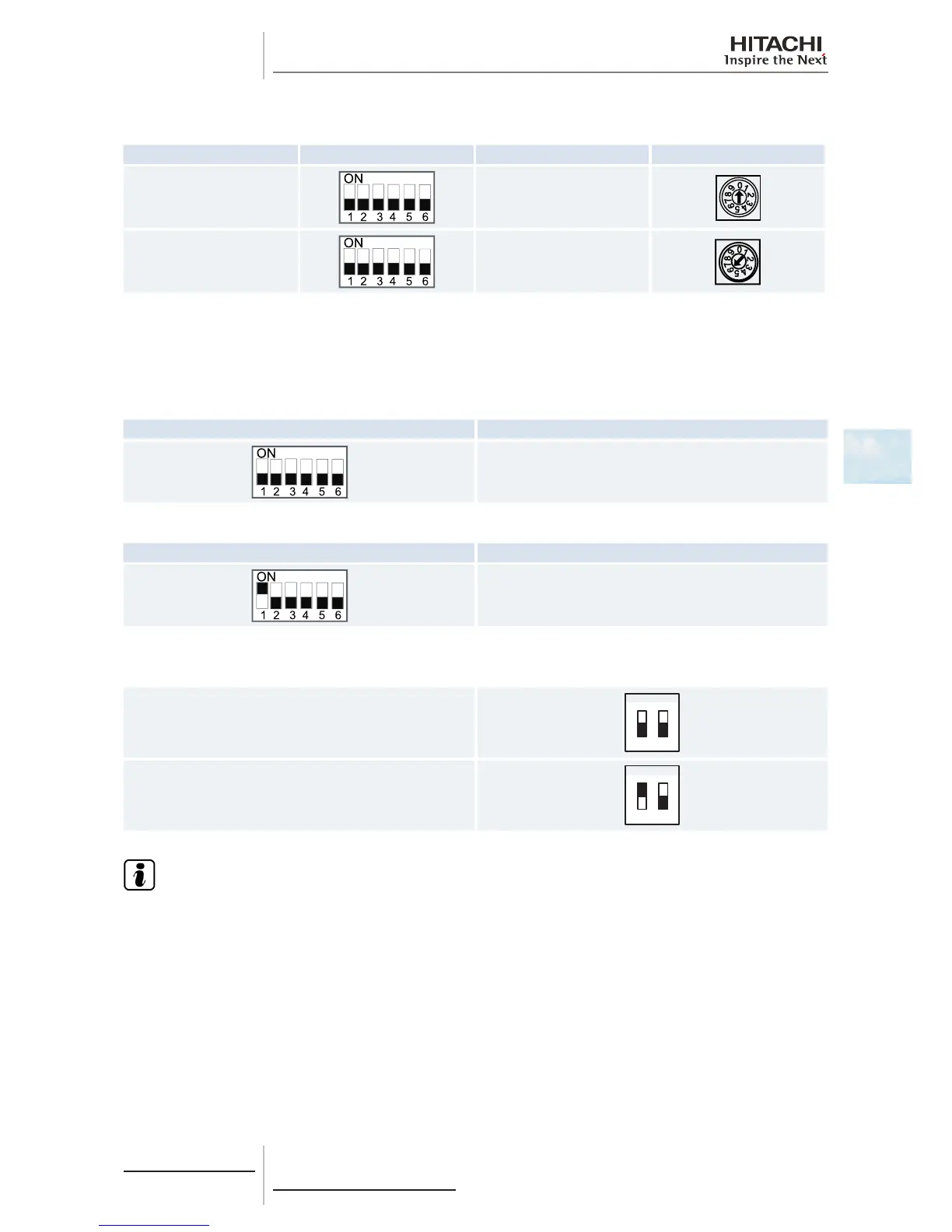

DSW5 and RSW2: Refrigerant cycle No. setting
Setting is required. This switch is used to set the refrigerant cycle number
Setting Position (DSW5) Setting position (RSW2)
Tens setting (second digit)
Unit setting (rst digit)
Example for number 6 +
DSW6 and RSW1: Unit No. setting
Set DSW6 and RSW1 to modify the indoor unit address. The setting must be made so that it does not overlap the setting of other
indoor units in the same refrigerant cycle. If the setting is not made manually, the automatic address function will be enable.
Factory-set to a value of up to 63.
DSW6 RSW1
xxx
Example of setting for unit no. 16
DSW6 RSW1
xxx
DSW7 switch: Fuse recovery and remote control selection
No settings are required. All switches are factory-set to OFF.
PC-ART remote control selection.
1 2
ON
If high voltage is applied to P.S. terminal L1 and N, the fuse on
PCB1 (M) is deactivated. Should this occur, correct the TB1 wi-
ring and active contact 1.
1 2
ON
N O T E
The“■”markindicatespositionofdipsswitches.Figuresshowsettingbeforeshipmentorafterselection.
