Hitachi RPI-4.0FSN4E Service Manual

8 Troubleshooting
258
SMGB0077 rev.0 - 01/2013
Indoor units
Power
output

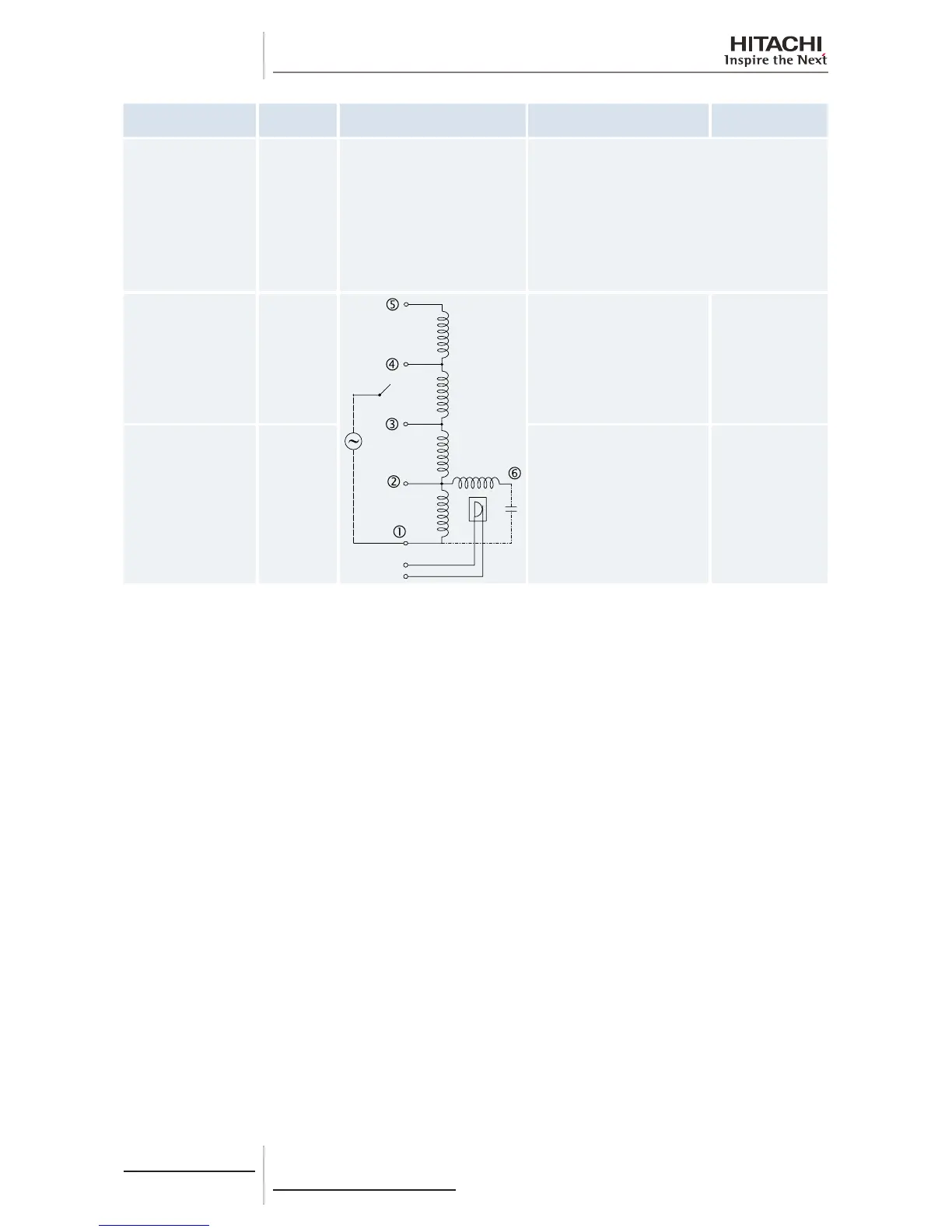

Wiring diagram Cable no. Resistance (Ω)
RPK-0.8FSN(H)3M
RPK-1.0FSN(H)3M
RPK-1.5FSN(H)3M
RPK-2.0FSN3M
RPK-2.5FSN3M
RPK-3.0FSN3M
RPK-4.0FSN3M
40 W DC motor —
RPF(I)-1.0FSN2E
RPF(I)-1.5FSN2E
28 W
BLK1-2RED
RED2-3WHT
WHT3-4BLU
BLU4-5ORN
ORN5-6YEL
231.70
198.70
136.20
71.20
202.40
to 20 °C
RPF(I)-2.0FSN2E
RPF(I)-2.5FSN2E
45 W
BLK1-2RED
RED2-3WHT
WHT3-4BLU
BLU4-5ORN
ORN5-6YEL
97.90
138.10
61.60
35.20
61.00
to 20 °C
