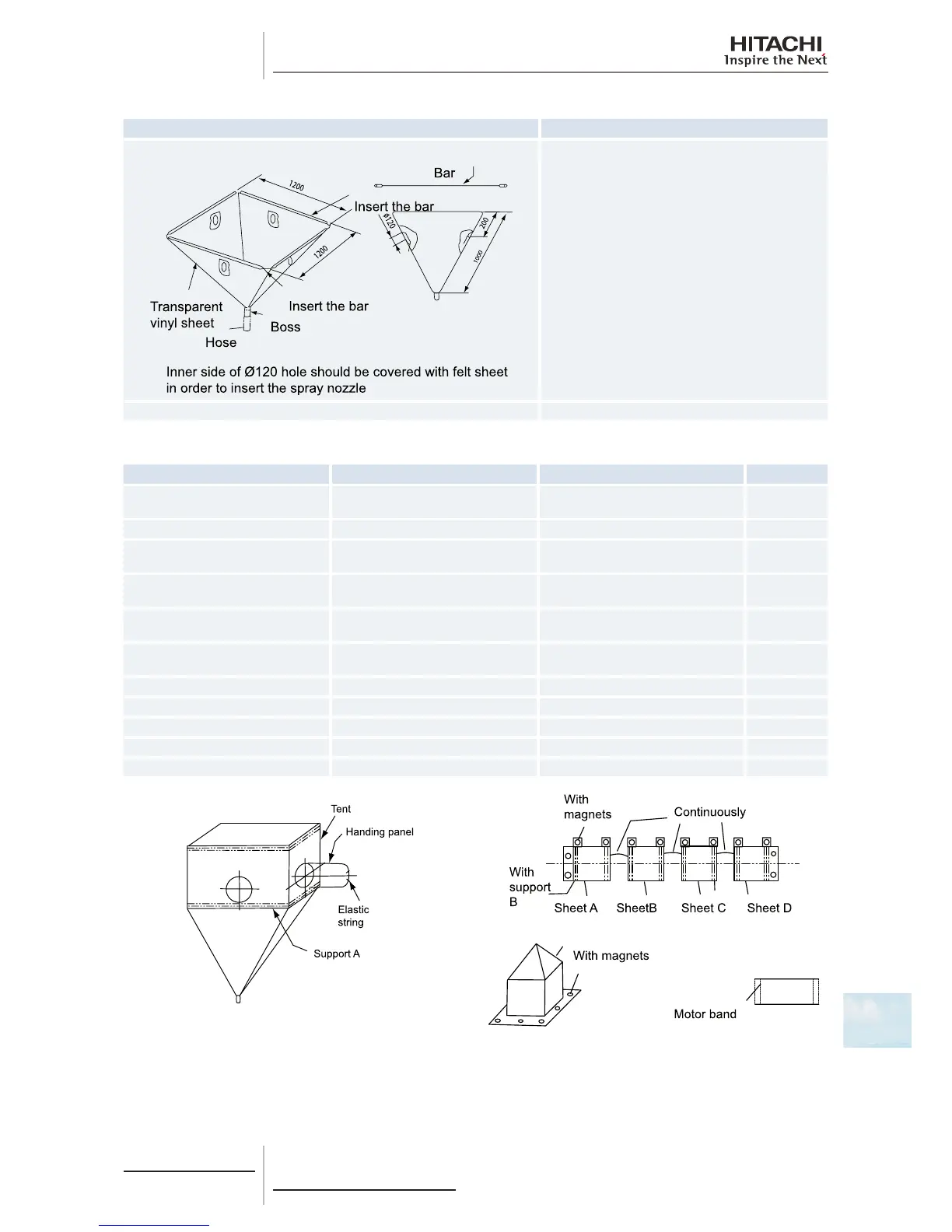

Cleaning water manifold
Depending on the type of unit to be cleaned, use a
duct-type, built-in 2-way type, wall type or ceiling type
manifold. The lower part of the Ø120 hole must be co-
vered with a piece of felt to insert the nozzle of the gun
Cleaning water manifold kit Built-in 4-way
Cleaning water manifold kit
Parts Material Remarks Quantity
Container with access panel Vinyl chloride sheeting
1 mm thick, with a 0.3 mm access
panel
1
Bracket A Stainless steel 8
Sheeting A Vinyl chloride sheeting
1 mm in thickness, with support B
and magnet
1
Sheeting B Vinyl chloride sheeting
1 mm in thickness, with support B
and magnet
1
Sheeting C Vinyl chloride sheeting
1 mm in thickness, with support B
and magnet
1
Sheeting D Vinyl chloride sheeting
1 mm in thickness, with support B
and magnet
1
Motor panel Vinyl chloride sheeting 1 mm in thickness with magnet 1
Motor ange Vinyl chloride sheeting 1 mm in thickness, adhesive tape 1
Connection panel Vinyl chloride sheeting 1
Gloves Rubber 1
Sling 1 m 4
