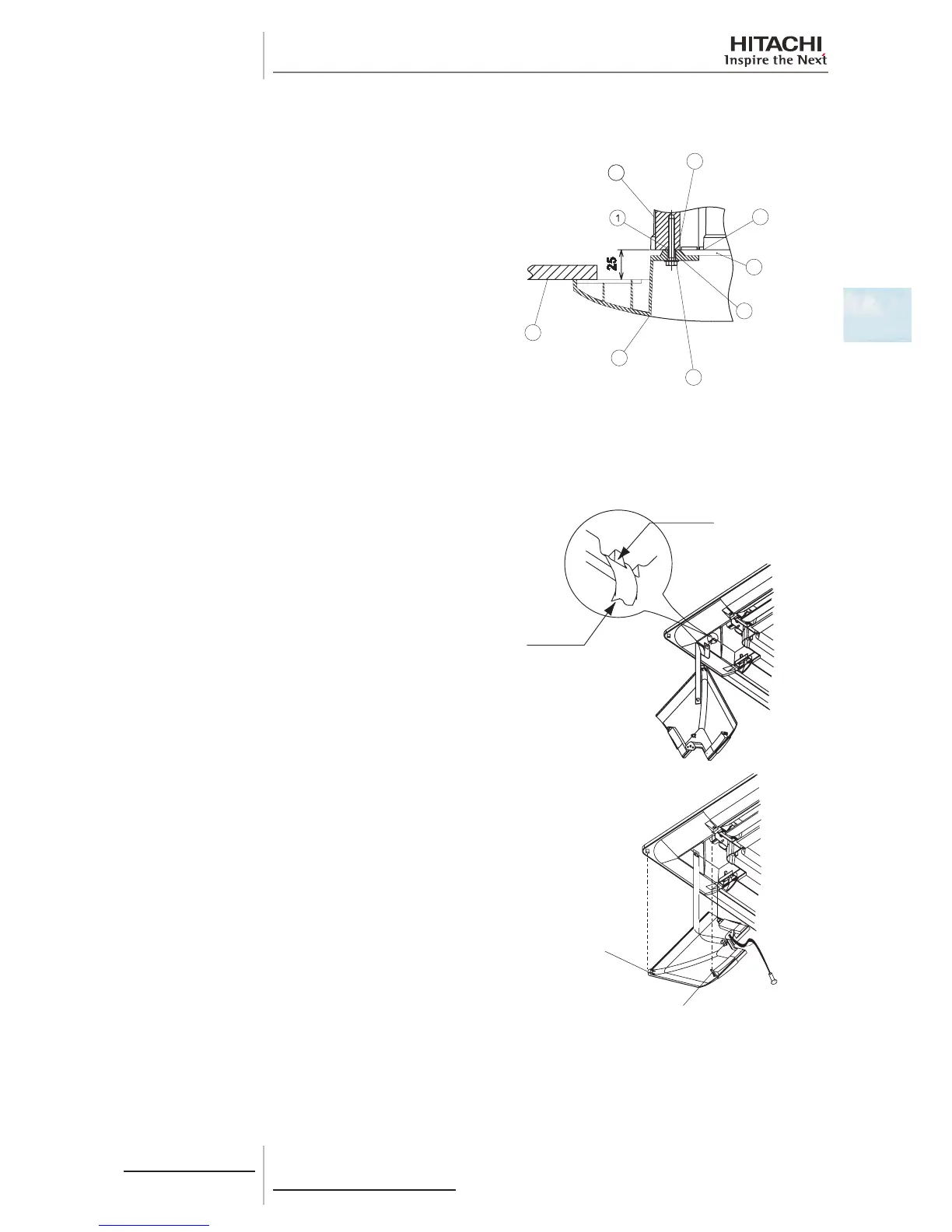

Fit the air panel in the attachment position using the screws supplied (M5). First secure the screws in positions -A- and
-B- and then the rest.
1 Tighten the îš¿xing screw completely
2 Indoor unit
3 Fixing sheet for air panel (indoor unit side)
4 Bottom side of indoor unit
5 Sealing gasket
6 Fixing sheet for air panel (panel side)
7 Fixing screw for air panel
8 Air panel
9 Fase ceiling
Check that there are no gaps in the touching surface between the indoor unit and the air panel. Gaps may cause air leaks
or condensation.
Secure the corner covers after îš¿tting the air panel:
a) Attach the tab at the rear of the corner cover to the panel
pin.
Band
b) Attach the L-shaped stop located on the rear of the
corner cover to the square hole in the air panel.
L-shapped catch
Catch (2 portions)
Screw
