C A U T I O N
• Where the mounting bracket must be installed on a wooden or concrete wall, make sure it is resistant enough
to withstand a weight of 200 kg.
• Donottthemountingbrackettoapillar.
• Theplacewheretheindoorunitistobeinstalledmustbeaatsurfacewithenoughspacetofullyhousethe
unit. The weight of the unit must be evenly distributed over the surface.

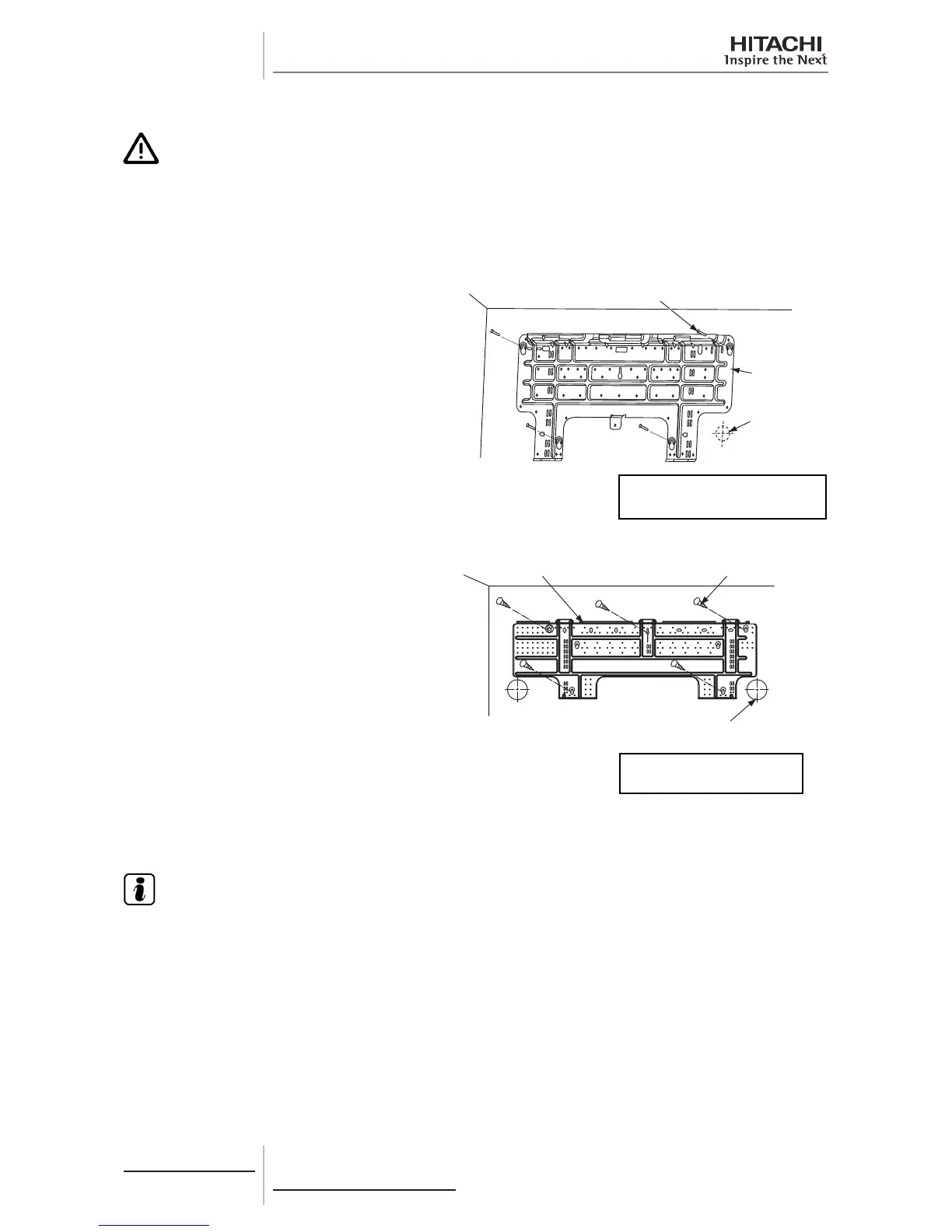

RPK-(0.8-1.5)FSN(H)3M
Fixing screw for suspension bracket
Suspension
bracket
Hole for
pipings and
wirings
Fix the suspension bracket by
more than 4 xing screws.
RPK-(2.0-4.0)FSN3M
Suspension bracket
Fixing screw for
suspension bracket
Hole for
pipings and
wirings
Fix the suspension bracket by
more than 5 xing screws.
Check that the mounting bracket is installed so that the drain pipe side is slightly lower (around 3 mm) than the other side
for easier condensate discharge.
N O T E
The drain hose connection can be made on the right or the left of the unit.
