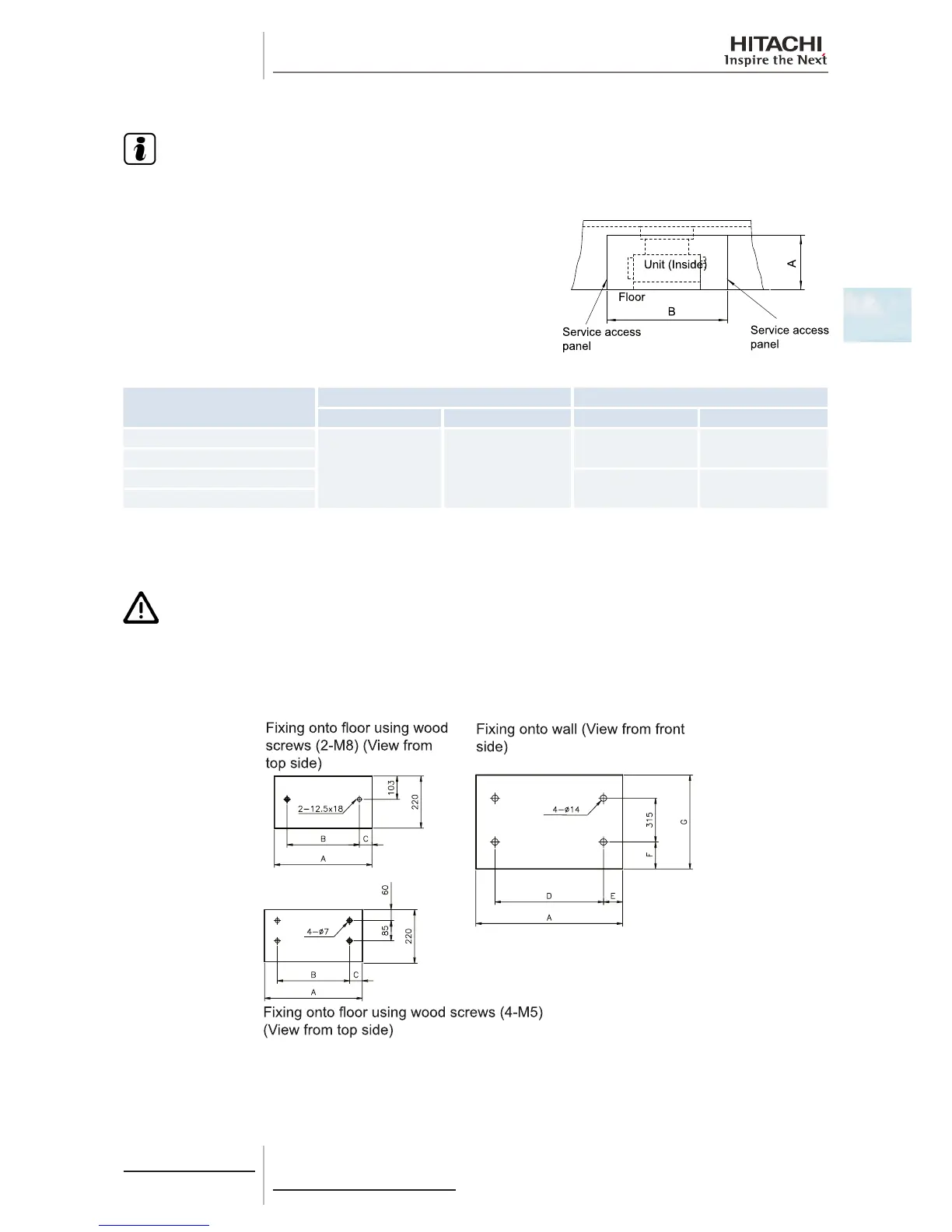

Check that the oor surface where the unit is to be installed is completely horizontal.
N O T E
Bear in mind the air distribution from the unit to the room and select a suitable place for an even air temperature
in the room.
Install a service hatch near the pipe connection area and electrical
junction box for installation and maintenance work.
Model
A (mm) B (mm)
RPF RPFI RPF RPFI
RPF(I)-1.0FSN2E
630 620
1479 1359
RPF(I)-1.5FSN2E
RPF(I)-2.0FSN2E
1729 1609
RPF(I)-2.5FSN2E
Check that the drain hose can be installed maintaining the necessary down-slope.
Installation
C A U T I O N
Theplacewheretheindoorunitistobeinstalledmustbeaatsurfacewithenoughspacetofullyhousetheunit.
The weight of the unit must be evenly distributed over the surface.
Handle and position the unit carefully.
Check that the attachment position (in mm) of the unit is as indicated in the îš¿gure.
