• Dynamic Activation / Template Override Cadence. (This is shown when the Template override is set to Yes or if a non-voice group
is assigned a Select/Dynamic Activation switch number): this setting sets the cadence of the non-voice group mapped to voice
select switch when activated using dynamic activation or by a template.
Defining Output Group Type
Each output group is defined as either a voice output group or a non-voice output group. Output points that are
audio circuits (all circuits on the ECS-50W, ECS-125W, ECS-DUAL-50W, ECS-INT50W and ECS-CE4) can only be assigned to voice
output groups. Output points that are non-voice circuits (all other points and circuits that are on all modules except the ECS-50W, ECS-
125W, ECS-DUAL-50W, ECS-INT50W and ECS-CE4) are assigned to non-voice output groups.
Each of the output groups defined as voice can be mapped to a particular switch and LED on the ECS-VCM/ECS-NVCM, ECS-RVM
and ECS-SW24. This allows the user to see the state of the voice groups assigned to the switches.
This also lets the user individually select which areas they want to do a live page into. Output groups not defined as voice groups can
also be assigned to these switches as long as there is a voice group already assigned to the group. This allows for dynamically activat-
ing/deactivating both voice and strobes/other outputs in an area with a single button press. See “Activating/Deactivating Output Groups
Dynamically” on page 151..

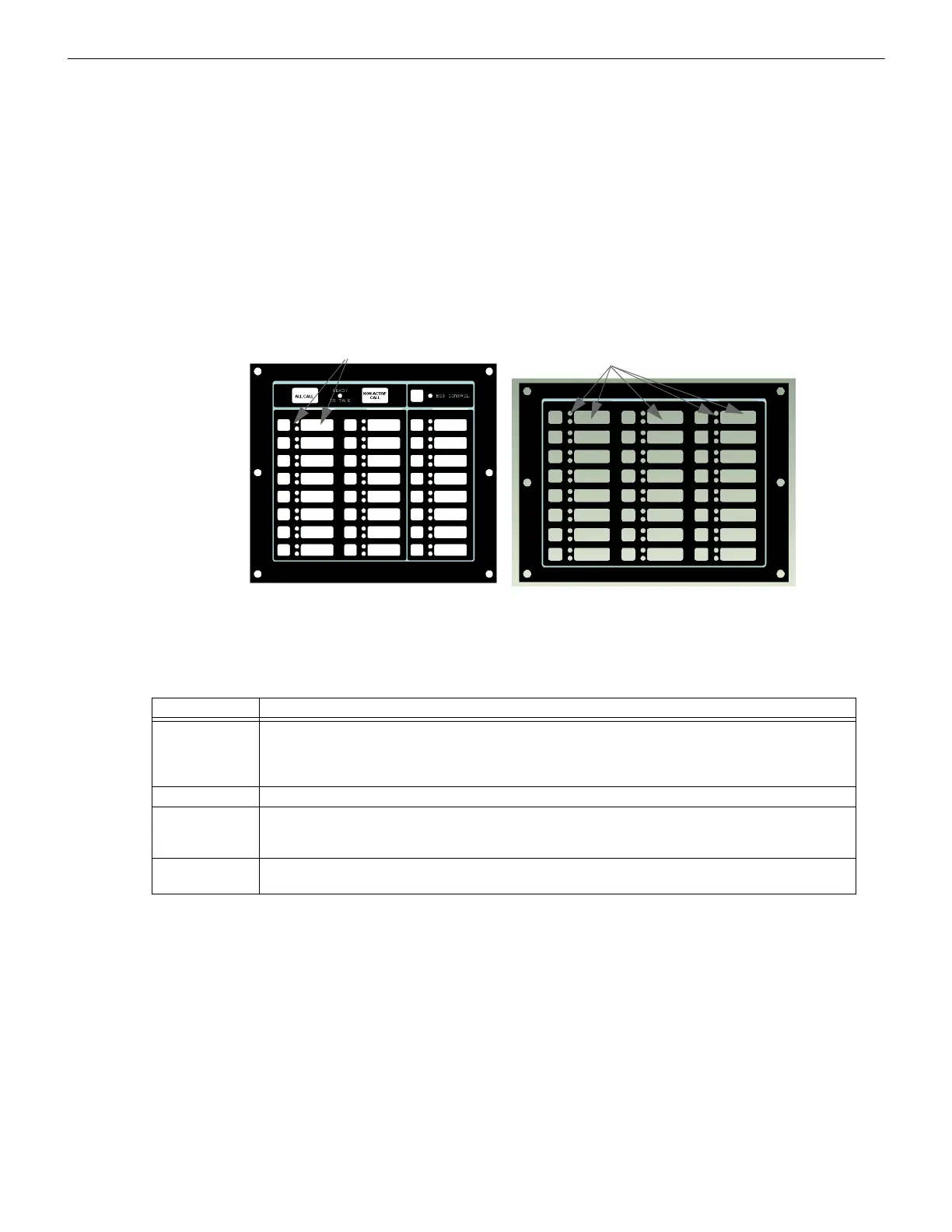

Figure 9.3 Corresponding Key and LED for Mapping Output Groups
Silencing Options
The following silencing options are available for each output group.
9.4.2 View Group Points
1. Enter the installer code. The panel will automatically go to the main menu.
2. Select 7 for Panel Programming.
3. Press 3 to enter group menu.
4. Press 2 to view group points.
5. Enter the group number, then press ENTER.
9.4.3 Edit OPG Template
1. Enter the installer code. The panel will automatically go to the main menu.
2. Select 7 for Panel Programming.
3. Press 3 to enter group menu.
4. Press 3 to edit OPG Template.
Optional Timers Description
Silence Inhibit Timed Silence after Inhibit. If this option is selected, the output group must be audible for a programmed
number of minutes before it can be silenced. If the condition that caused the output to activate has not
cleared during the time-frame, the output can be silenced. If you select this option, select the timeframe in
the delay field. Range is 0-60 minutes.
Auto Silence Silenceable. The output group will automatically silence after the timer expires. Range is 0-60 minutes.
Auto Unsilence If this option is selected, the output group can be silenced for a programmed time-frame. If the condition that
caused the output to activate has not cleared during the time-frame, the output reactivates. If you select this
option, select the time-frame in the delay field. Range is 0-60 minutes.
Startup Delay When a alarm is generated, the Output group will not activate until the timer expires assuming the event is
still active. Range is 0-120 Seconds
Table 9.3 Silencing Options
ECS User Interface
ECS-SW24
Corresponding
Key and LED Numbers
Corresponding
Key and LED Numbers
