8.2.2 Output Circuit Mapping
Figure 8.3 is a simple example showing how to assign notification and relay output circuits to groups. For an example of a simple floor
above/floor below application, see Figure 8.5.

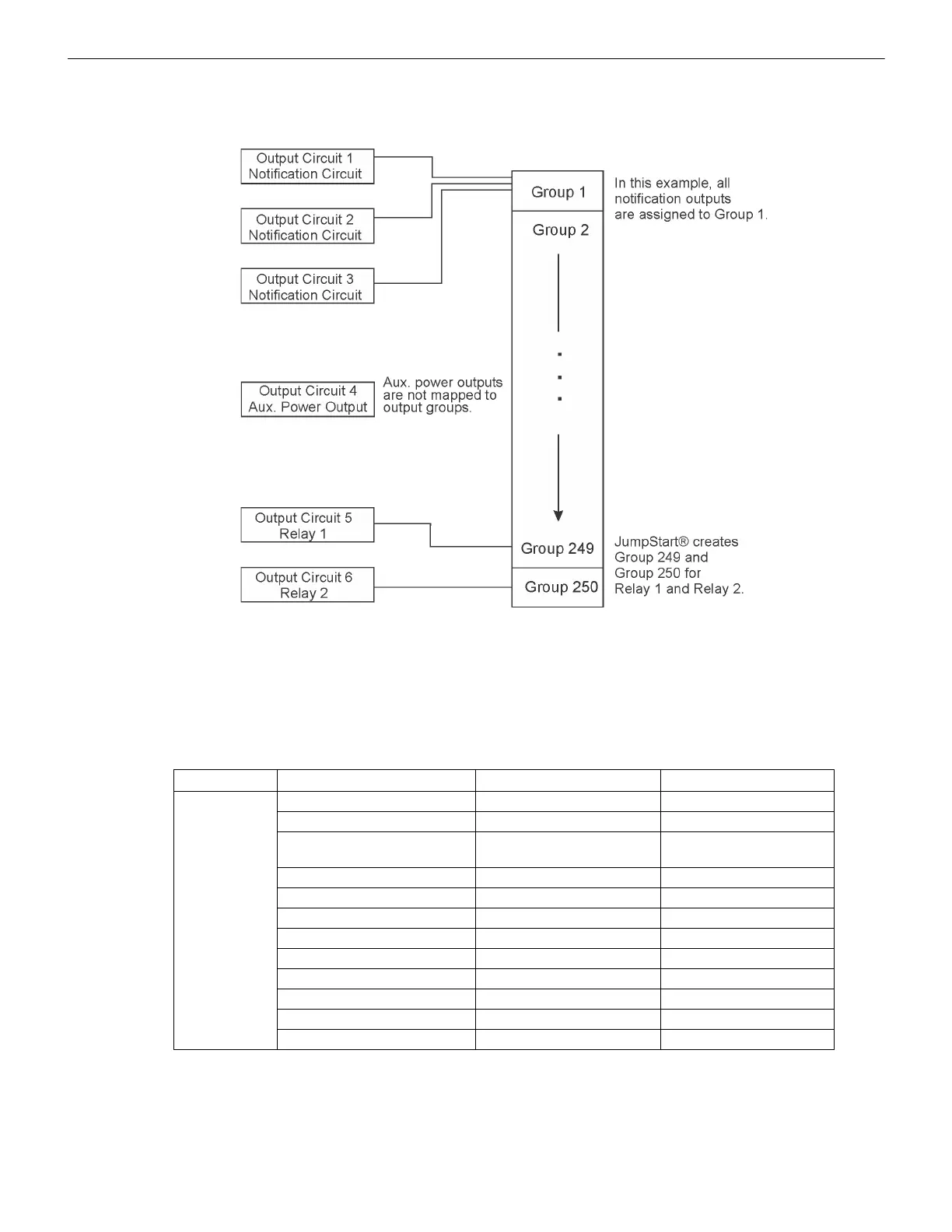

Figure 8.3 Assigning Output Circuits to Groups (Example)
8.2.3 Event Mapping
There are 11 types of Zone events, 14 types of Panel events, and 40 types of Site events that can be mapped (see “There are 11 types of
Zone events, 14 types of Panel events, and 40 types of Site events that can be mapped (see ). For each event type, you can activate the
output groups with specific output patterns. Mapping examples are shown in Figure 8.4, Figure 8.5, & Figure 8.7” on page 90). For each
event type, you can activate the output groups with specific output patterns. Mapping examples are shown in Figure 8.4, Figure 8.5, &
Figure 8.7
System Zone Panel Site
Fire
Manual Pull Alarm System Aux 1 Alarm Fire Drill
Water Flow Alarm System Aux 2 Alarm General Fire Alarm
Detector Alarm
(heat or smoke detectors)
General Fire Supervisory
Zone Aux 1 Alarm General Fire Pre-Alarm
Zone Aux 2 Alarm
Interlock Alert
Interlock Release
Pre-Alarm
Fire Supervisory
Status Point
CO Alarm
CO Supervisory
Table 8.1 Event Type
