4.7 RA-2000 Remote Annunciator Installation
The optional Model RA-2000 Remote Annunciator, (see Figure 4.20). The RA-2000 can be surface or flush mounted. It is available in
gray color as RA-2000GRAY as shown.

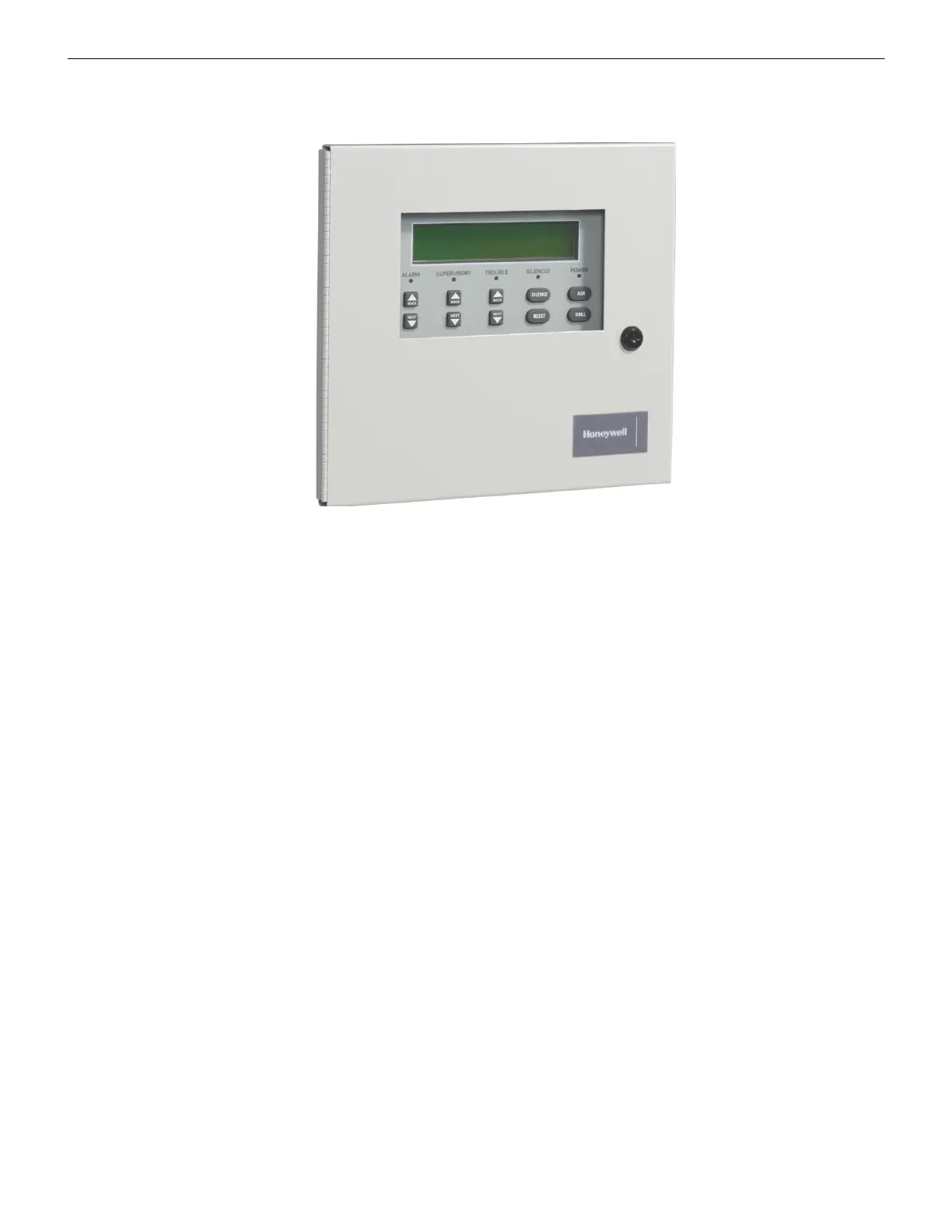

Figure 4.20 Model RA-2000GRAY Remote Annunciator, Front View
RA-2000 installation involves the following steps:
1. Make sure power is off at the panel.
2. Mount the RA-2000 in the desired location (see Section 4.7.1).
3. Connect the RA-2000 to the panel (see Section 4.7.2).
4. Use the DIP switches on the back of the RA-2000 to assign an SBUS ID# to the RA-2000.
5. The RA-2000 module must be added to the system through programming. JumpStart
®
will add the module automatically (see
Section 8.1.3). You can also add it manually (see Section 9.2.2). Select a name, if desired (See “Naming Modules” on page 110.).
4.7.1 Mounting the RA-2000
This section of the manual describes mounting the remote annunciator. The annunciator can be flush or surface mounted.
Flush Mounting
This section of the manual describes flush mounting.
