47 IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017
4.12.1 5865 Connection to Panel
The 5865 connects to the panel via the SBUS. Make connections as shown in Figure 4.38. After the 5865 is connected to the panel, it
must be added to the system. This programming step is described in Section 4.13.

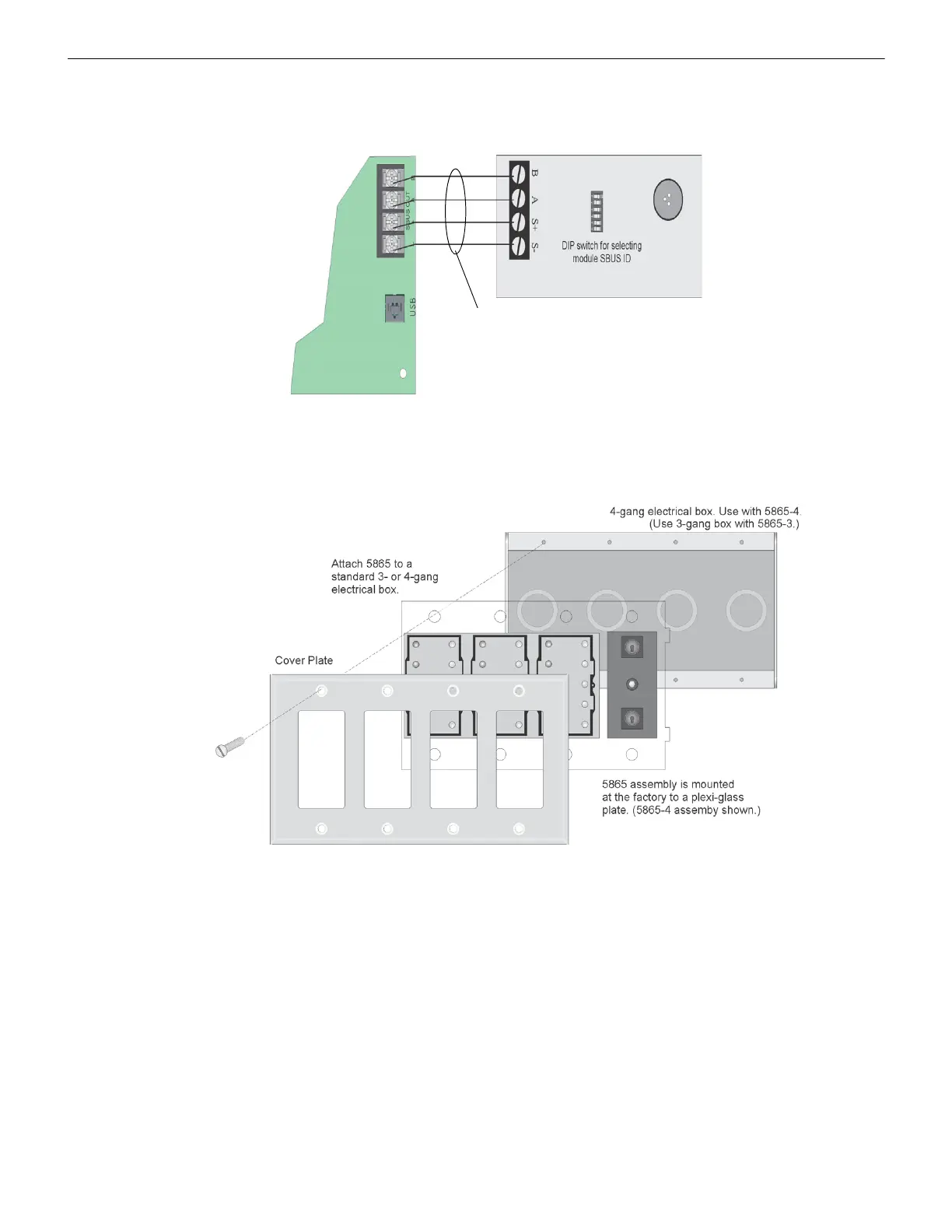

Figure 4.38 5865 Connection to the FACP
4.12.2 5865 Mounting
Mount the 5865-4 to a standard 4-gang electrical box. Mount the 5865-3 to a standard 3-gang electrical box. In Figure 4.39, the 5865-4
attached to a 4-gang box is used as an example.
Figure 4.39 5865 Mounting Example
Supervised
Power Limited Class B
To Next Page
